68023 Series

Catalog

CONN HEADER R/A 36POS 2.54MM

Part	Voltage Rating	Material Flammability Rating	Number of Positions Loaded	Shrouding	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Rows	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Material	Number of Positions	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Contact Type	Termination	Mounting Type	Connector Type	Contact Finish - Post	Number of Positions

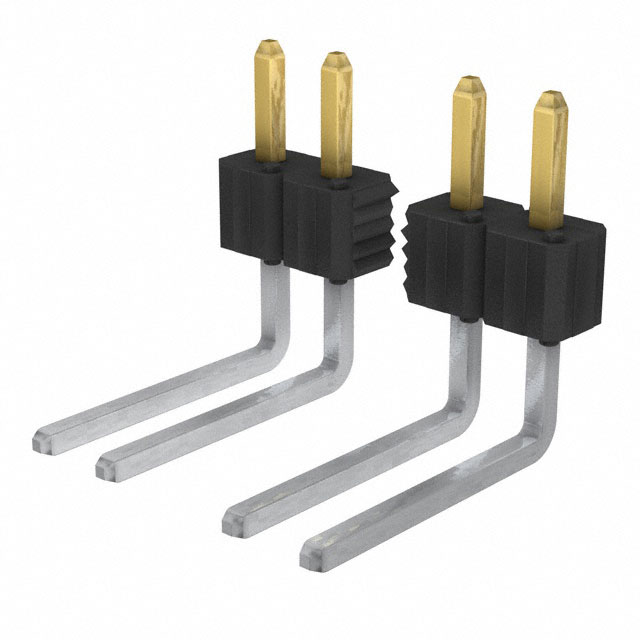

Amphenol ICC (FCI) 68023-236HLF	110 VDC	UL94 V-0	All	Unshrouded	0.095 in	2.41 mm	5 A	Push-Pull	0.1 in	2.54 mm	1	Black	15 µin	0.38 µm	Square	Phosphor Bronze	36	0.136 in	3.45 mm	Gold or Gold GXT™	Male Pin	Solder	Through Hole Right Angle	Header

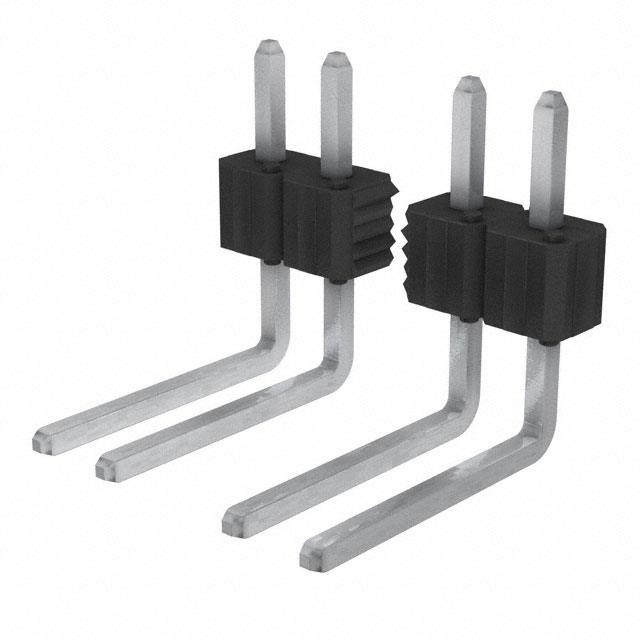

Amphenol ICC (FCI) 68023-409HLF	110 VDC	UL94 V-0	All	Unshrouded	0.095 in	2.41 mm	5 A	Push-Pull	0.1 in	2.54 mm	1	Black	100 çin	2.54 çm	Square	Phosphor Bronze	9	0.136 in	3.45 mm		Male Pin	Solder	Through Hole Right Angle	Header	Tin
Amphenol ICC (FCI) 68023-108HLF	110 VDC	UL94 V-0	All	Unshrouded	0.095 in	2.41 mm	5 A	Push-Pull	0.1 in	2.54 mm	1	Black	30 Áin	0.76 Ám	Square	Phosphor Bronze	8	0.136 in	3.45 mm	Gold or Gold GXT™	Male Pin	Solder	Through Hole Right Angle	Header
Amphenol ICC (FCI) 68023-412HLF	110 VDC	UL94 V-0	All	Unshrouded	0.095 in	2.41 mm	5 A	Push-Pull	0.1 in	2.54 mm	1	Black	100 çin	2.54 çm	Square	Phosphor Bronze	12	0.136 in	3.45 mm		Male Pin	Solder	Through Hole Right Angle	Header	Tin
Amphenol ICC (FCI) 68023-416HLF	110 VDC	UL94 V-0	All	Unshrouded	0.095 in	2.41 mm	5 A	Push-Pull	0.1 in	2.54 mm	1	Black	100 çin	2.54 çm	Square	Phosphor Bronze		0.136 in	3.45 mm		Male Pin	Solder	Through Hole Right Angle	Header	Tin	16
Amphenol ICC (FCI) 68023-104HLF	110 VDC	UL94 V-0	All	Unshrouded	0.095 in	2.41 mm	5 A	Push-Pull	0.1 in	2.54 mm	1	Black	30 Áin	0.76 Ám	Square	Phosphor Bronze	4	0.136 in	3.45 mm	Gold or Gold GXT™	Male Pin	Solder	Through Hole Right Angle	Header
Amphenol ICC (FCI) 68023-429HLF	110 VDC	UL94 V-0	All	Unshrouded	0.095 in	2.41 mm	5 A	Push-Pull	0.1 in	2.54 mm	1	Black	100 çin	2.54 çm	Square	Phosphor Bronze	29	0.136 in	3.45 mm		Male Pin	Solder	Through Hole Right Angle	Header	Tin
Amphenol ICC (FCI) 68023-220HLF	110 VDC	UL94 V-0	All	Unshrouded	0.095 in	2.41 mm	5 A	Push-Pull	0.1 in	2.54 mm	1	Black	15 µin	0.38 µm	Square	Phosphor Bronze	20	0.136 in	3.45 mm	Gold or Gold GXT™	Male Pin	Solder	Through Hole Right Angle	Header
Amphenol ICC (FCI) 68023-430HLF	110 VDC	UL94 V-0	All	Unshrouded	0.095 in	2.41 mm	5 A	Push-Pull	0.1 in	2.54 mm	1	Black	100 çin	2.54 çm	Square	Phosphor Bronze	30	0.136 in	3.45 mm		Male Pin	Solder	Through Hole Right Angle	Header	Tin
Amphenol ICC (FCI) 68023-435HLF	110 VDC	UL94 V-0	All	Unshrouded	0.095 in	2.41 mm	5 A	Push-Pull	0.1 in	2.54 mm	1	Black	100 çin	2.54 çm	Square	Phosphor Bronze	35	0.136 in	3.45 mm		Male Pin	Solder	Through Hole Right Angle	Header	Tin
