TSM500 Series

Catalog

MOSFET 2P-CH 20V 4.7A 6TDFN

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Drain to Source Voltage (Vdss)	Configuration	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Technology	Vgs(th) (Max) @ Id	Power - Max [Max]	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs [Max]

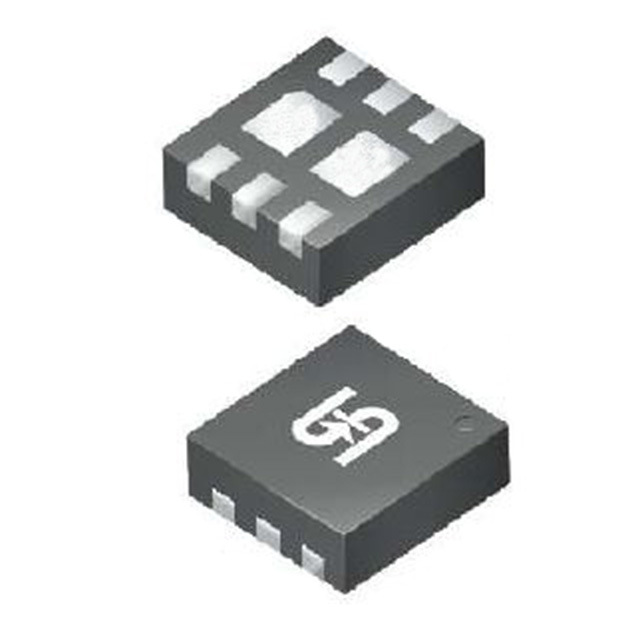

Taiwan Semiconductor Corporation TSM500P02DCQ RFG	Surface Mount	-50 °C	150 °C	6-TDFN (2x2)	20 V	2 P-Channel (Dual)	6-VDFN Exposed Pad	1230 pF	4.7 A	MOSFET (Metal Oxide)	800 mV	620 mW	50 mOhm	9.6 nC
