PUP6AS Series

Catalog

CAT6-UTP CABLE FOIL TAPE FLUORINATED ETHYLENE PROPYLENE 8CONDUCTORS 23AWG 6.4MM VIOLET 305M REEL

Part	Length	Length	Length [x]	Length [x]	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand	Ratings	Wire Gauge	Features	Conductor Insulation	Shield Type	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Material	Number of Conductors
Panduit Corp PUP6AS04VL-G	76.2 m 152.4 m 304.8 m	250 ft 500 ft 1000 ft	100 ft	30.5 m	Plenum Poly-Vinyl Chloride (PVC)	-20 ░C	90 °C	Solid	UL Style CMP	23 AWG	Flame Retardant	Fluorinated Ethylene-Propylene (FEP) Polyethylene (PE)	Foil	Violet	0.25 "	6.35 mm	Multi-Pair Cat6a	Copper	8
Panduit Corp PUP6AS04GR-G	15.24 m 76.2 m 152.4 m 304.8 m	50 ft 250 ft 500 ft 1000 ft	100 ft	30.5 m	Plenum Poly-Vinyl Chloride (PVC)	-20 ░C	90 °C	Solid	UL Style CMP	23 AWG	Flame Retardant	Fluorinated Ethylene-Propylene (FEP) Polyethylene (PE)	Foil	Green	0.25 "	6.35 mm	Multi-Pair Cat6a	Copper	8
Panduit Corp PUP6AS04BL-G	76.2 m 304.8 m	250 ft 1000 ft			Plenum Poly-Vinyl Chloride (PVC)	-20 ░C	90 °C	Solid	UL Style CMP	23 AWG	Flame Retardant	Fluorinated Ethylene-Propylene (FEP) Polyethylene (PE)	Foil	Black	0.25 "	6.35 mm	Multi-Pair Cat6a	Copper	8

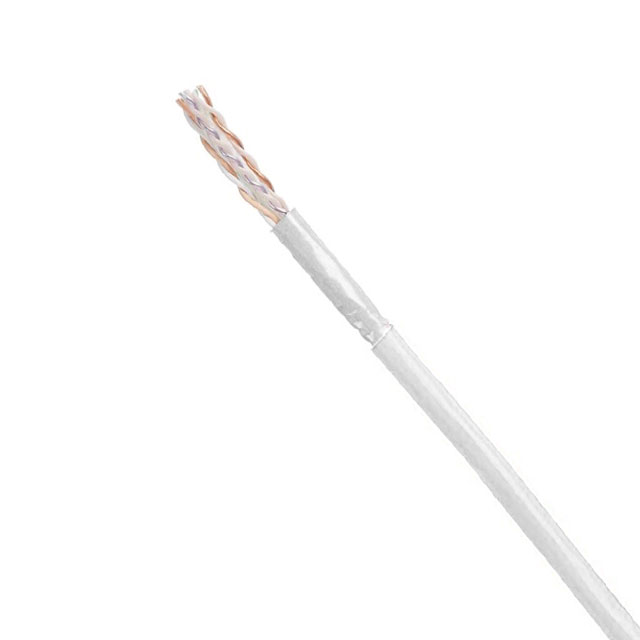

Panduit Corp PUP6AS04WH-G	15.24 m 76.2 m 152.4 m 304.8 m	50 ft 250 ft 500 ft 1000 ft	100 ft	30.5 m	Plenum Poly-Vinyl Chloride (PVC)	-20 ░C	90 °C	Solid	UL Style CMP	23 AWG	Flame Retardant	Fluorinated Ethylene-Propylene (FEP) Polyethylene (PE)	Foil	White	0.25 "	6.35 mm	Multi-Pair Cat6a	Copper	8
