146-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN SKT DBL

Part	Current Rating (Amps)	Material Flammability Rating	Contact Resistance	Termination Post Length [x]	Termination Post Length [x]	Housing Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Type	Type	Number of Positions or Pins (Grid)	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Termination	Contact Material - Mating	Features	Contact Material - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Post	Pitch - Post	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]
Mill-Max Manufacturing Corp. 146-43-318-41-012000	3 A	UL94 V-0	10 mOhm	0.12 "	3.05 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin	Through Hole	-55 C	125 °C	7.62 mm	0.3 in	DIP	18	Tin	0.1 "	2.54 mm	Press-Fit	Beryllium Copper	Open Frame	Brass Alloy	200 µin	5.08 µm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 146-43-316-41-013000	3 A	UL94 V-0	10 mOhm			Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin	Through Hole	-55 C	125 °C	7.62 mm	0.3 in	DIP	16	Tin	0.1 "	2.54 mm	Press-Fit	Beryllium Copper	Open Frame	Brass Alloy	200 µin	5.08 µm	0.1 in	2.54 mm	0.175 in	4.45 mm	2	8
Mill-Max Manufacturing Corp. 146-43-632-41-012000	3 A	UL94 V-0	10 mOhm	0.12 "	3.05 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin	Through Hole	-55 C	125 °C			DIP	32	Tin	0.1 "	2.54 mm	Press-Fit	Beryllium Copper	Open Frame	Brass Alloy	200 µin	5.08 µm	0.1 in	2.54 mm					15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 146-43-624-41-012000	3 A	UL94 V-0	10 mOhm	0.12 "	3.05 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin	Through Hole	-55 C	125 °C			DIP	24	Tin	0.1 "	2.54 mm	Press-Fit	Beryllium Copper	Open Frame	Brass Alloy	200 µin	5.08 µm	0.1 in	2.54 mm					15.24 mm	0.6 in	12	2
Mill-Max Manufacturing Corp. 146-43-640-41-012000	3 A	UL94 V-0	10 mOhm	0.12 "	3.05 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin	Through Hole	-55 C	125 °C			DIP	40	Tin	0.1 "	2.54 mm	Press-Fit	Beryllium Copper	Open Frame	Brass Alloy	200 µin	5.08 µm	0.1 in	2.54 mm					15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 146-43-316-41-012000	3 A	UL94 V-0	10 mOhm	0.12 "	3.05 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin	Through Hole	-55 C	125 °C	7.62 mm	0.3 in	DIP	16	Tin	0.1 "	2.54 mm	Press-Fit	Beryllium Copper	Open Frame	Brass Alloy	200 µin	5.08 µm	0.1 in	2.54 mm			2	8
Mill-Max Manufacturing Corp. 146-43-624-41-013000	3 A	UL94 V-0	10 mOhm			Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin	Through Hole	-55 C	125 °C			DIP	24	Tin	0.1 "	2.54 mm	Press-Fit	Beryllium Copper	Open Frame	Brass Alloy	200 µin	5.08 µm	0.1 in	2.54 mm	0.175 in	4.45 mm			15.24 mm	0.6 in	12	2
Mill-Max Manufacturing Corp. 146-43-628-41-013000	3 A	UL94 V-0	10 mOhm			Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin	Through Hole	-55 C	125 °C			DIP	28	Tin	0.1 "	2.54 mm	Press-Fit	Beryllium Copper	Open Frame	Brass Alloy	200 µin	5.08 µm	0.1 in	2.54 mm	0.175 in	4.45 mm			15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 146-43-422-41-013000	3 A	UL94 V-0	10 mOhm			Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin	Through Hole	-55 C	125 °C		0.4 in	DIP	22	Tin	0.1 "	2.54 mm	Press-Fit	Beryllium Copper	Open Frame	Brass Alloy	200 µin	5.08 µm	0.1 in	2.54 mm	0.175 in	4.45 mm					2	11

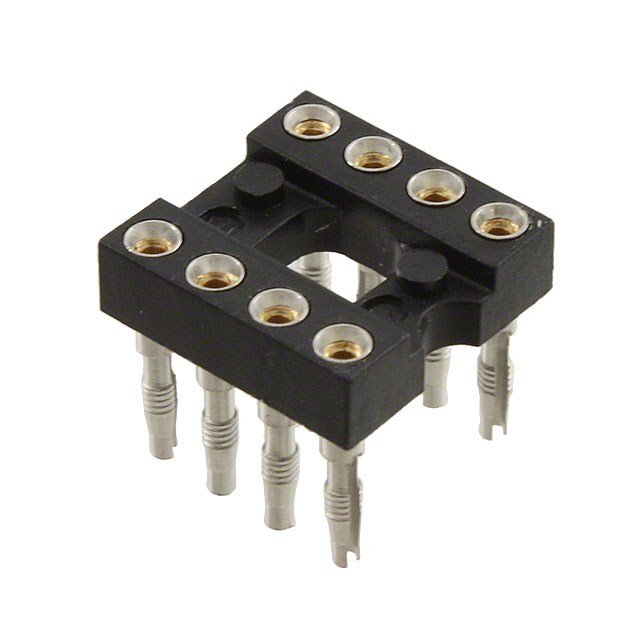

Mill-Max Manufacturing Corp. 146-43-308-41-013000	3 A					Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin	Through Hole	-55 C	125 °C	7.62 mm	0.3 in	DIP	8	Tin	0.1 "	2.54 mm	Press-Fit	Beryllium Copper	Open Frame	Brass Alloy	200 µin	5.08 µm	0.1 in	2.54 mm	0.175 in	4.45 mm					2	4
