ED1110 Series

Catalog

TERM BLOCK PLUG 10POS 270DEG 5MM

Part	Insulation Height	Insulation Height	Screw Size	Torque - Screw	Torque - Screw	Contact Material	Housing Material	Material Flammability Rating	Wire Strip Length	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Levels	Voltage - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Termination Style	Positions Per Level	Pitch	Pitch	Mounting Type	Plug Wire Entry [custom]	Number of Positions	Wire Gauge or Range - mm²	Wire Gauge or Range - mm˛	Positions Per Level [custom]

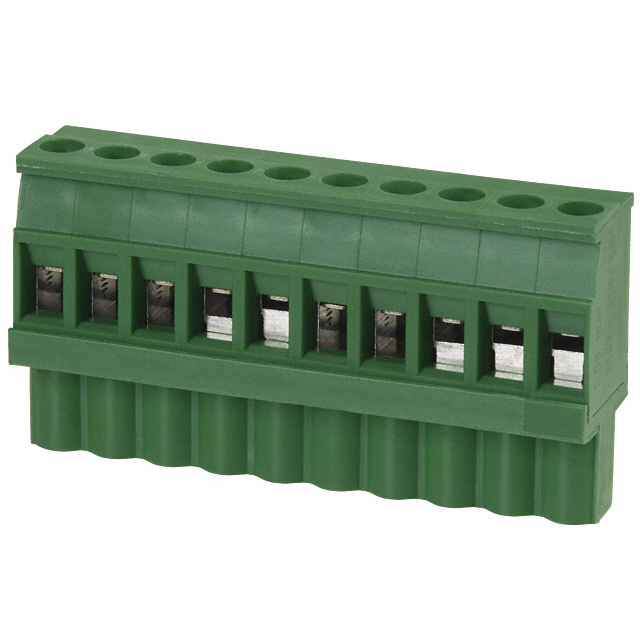

On Shore Technology Inc. ED1110/10	26.5 mm	1.043 in	M3	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	UL94 V-0	7 mm	-30 ░C	105 ░C	Green	1	300 V	22 AWG	10 AWG	Plug Female Sockets	Screw	10	0.197 in	5 mm	Free Hanging (In-Line)	270 °	10	2.5 mm²
On Shore Technology Inc. ED1110/7	26.5 mm	1.043 in	M3	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	UL94 V-0	7 mm	-30 ░C	105 ░C	Green	1	300 V	22 AWG	10 AWG	Plug Female Sockets	Screw		0.197 in	5 mm	Free Hanging (In-Line)	270 °	7	2.5 mm²	2.5 mm˛	7

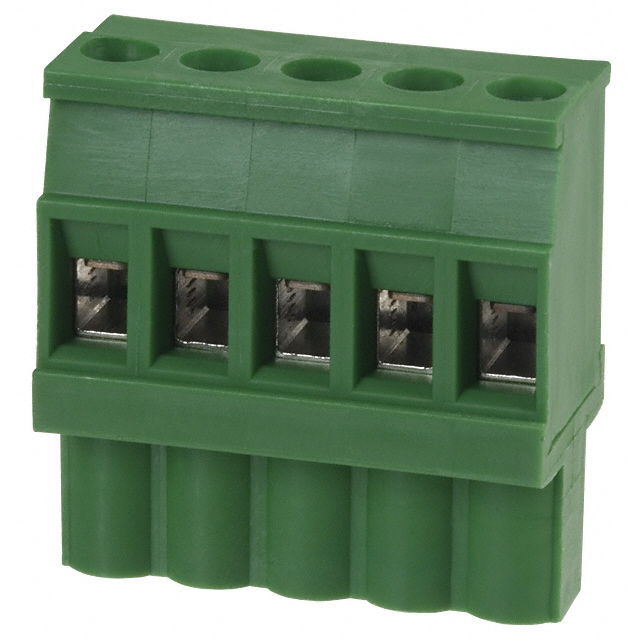

On Shore Technology Inc. ED1110/5	26.5 mm	1.043 in	M3	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	UL94 V-0	7 mm	-30 ░C	105 ░C	Green	1	300 V	22 AWG	10 AWG	Plug Female Sockets	Screw	5	0.197 in	5 mm	Free Hanging (In-Line)	270 °	5	2.5 mm²	2.5 mm˛

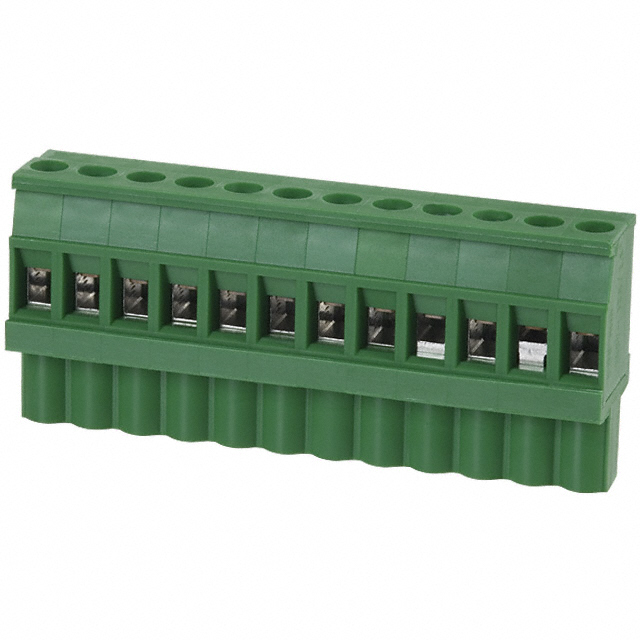

On Shore Technology Inc. ED1110/12	26.5 mm	1.043 in	M3	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	UL94 V-0	7 mm	-30 ░C	105 ░C	Green	1	300 V	22 AWG	10 AWG	Plug Female Sockets	Screw	12	0.197 in	5 mm	Free Hanging (In-Line)	270 °	12	2.5 mm²	2.5 mm˛

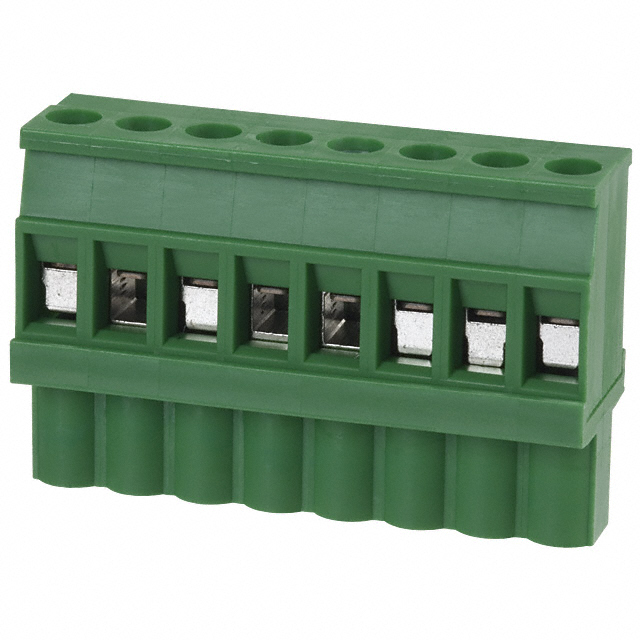

On Shore Technology Inc. ED1110/8	26.5 mm	1.043 in	M3	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	UL94 V-0	7 mm	-30 ░C	105 ░C	Green	1	300 V	22 AWG	10 AWG	Plug Female Sockets	Screw	8	0.197 in	5 mm	Free Hanging (In-Line)	270 °	8	2.5 mm²	2.5 mm˛

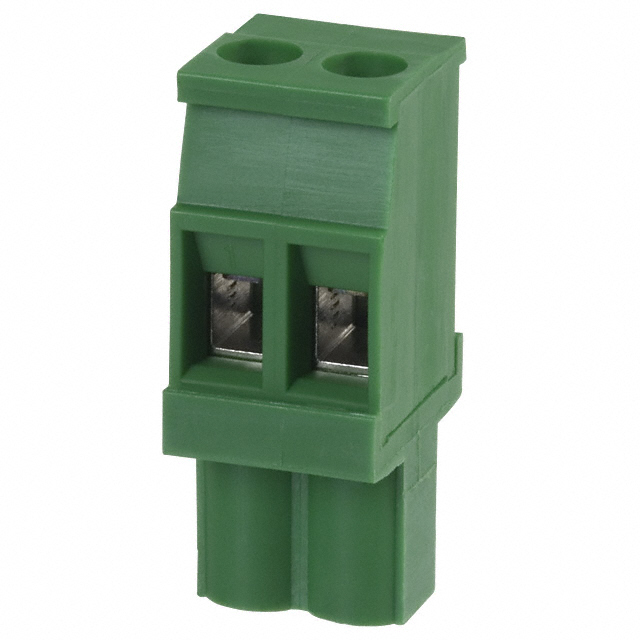

On Shore Technology Inc. ED1110/2	26.5 mm	1.043 in	M3	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	UL94 V-0	7 mm	-30 ░C	105 ░C	Green	1	300 V	22 AWG	10 AWG	Plug Female Sockets	Screw	2	0.197 in	5 mm	Free Hanging (In-Line)	270 °	2	2.5 mm²

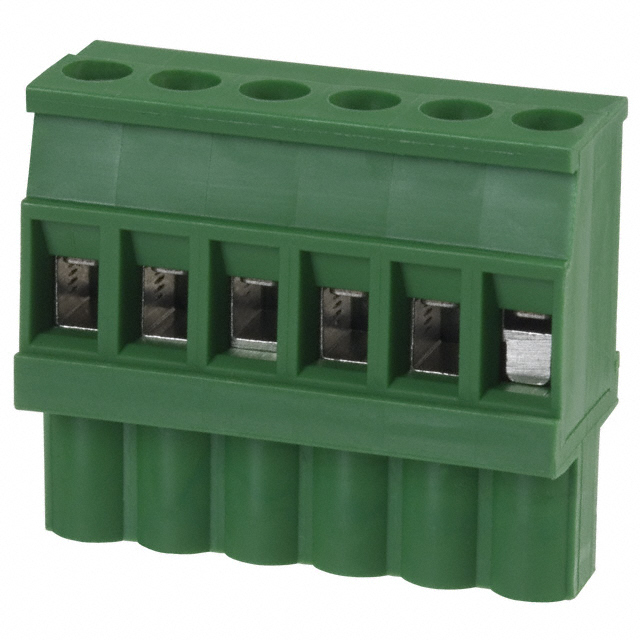

On Shore Technology Inc. ED1110/6	26.5 mm	1.043 in	M3	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	UL94 V-0	7 mm	-30 ░C	105 ░C	Green	1	300 V	22 AWG	10 AWG	Plug Female Sockets	Screw	6	0.197 in	5 mm	Free Hanging (In-Line)	270 °	6	2.5 mm²

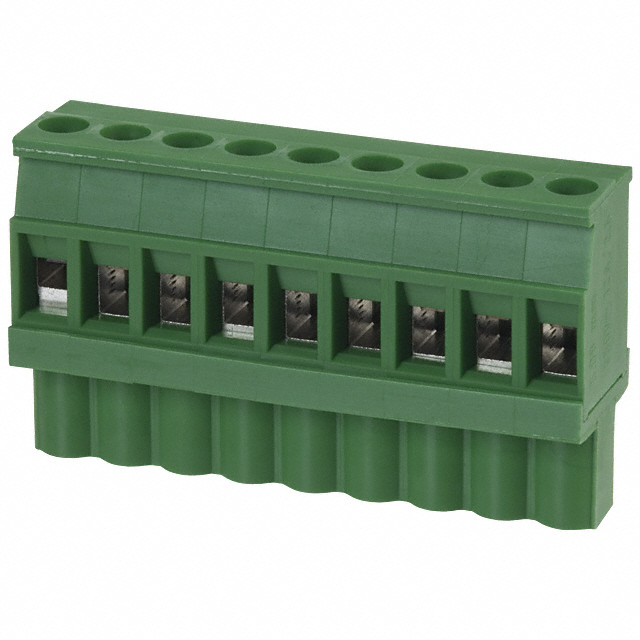

On Shore Technology Inc. ED1110/9	26.5 mm	1.043 in	M3	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	UL94 V-0	7 mm	-30 ░C	105 ░C	Green	1	300 V	22 AWG	10 AWG	Plug Female Sockets	Screw	9	0.197 in	5 mm	Free Hanging (In-Line)	270 °	9	2.5 mm²

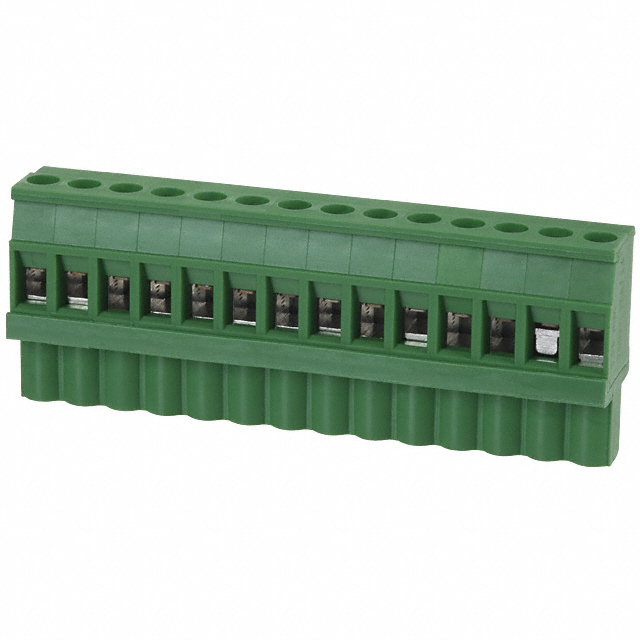

On Shore Technology Inc. ED1110/14	26.5 mm	1.043 in	M3	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	UL94 V-0	7 mm	-30 ░C	105 ░C	Green	1	300 V	22 AWG	10 AWG	Plug Female Sockets	Screw	14	0.197 in	5 mm	Free Hanging (In-Line)	270 °	14	2.5 mm²
On Shore Technology Inc. ED1110/3	26.5 mm	1.043 in	M3	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	Polyamide (PA) Nylon	UL94 V-0	7 mm	-30 ░C	105 ░C	Green	1	300 V	22 AWG	10 AWG	Plug Female Sockets	Screw	3	0.197 in	5 mm	Free Hanging (In-Line)	270 °		2.5 mm²
