DME-06 Series

Manufacturer: Adam Tech

Catalog

6.35MM HSG 2*3P PCB F STR MALE C

Part	Insulation Material	Applications	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Fastening Type	Material Flammability Rating	Termination	Pitch - Mating	Pitch - Mating	Connector Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mounting Type	Insulation Color	Features	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Number of Positions	Number of Positions Loaded	Number of Rows [custom]	Style	Contact Finish - Post	Shrouding	Contact Material	Contact Length - Post [x]	Number of Rows

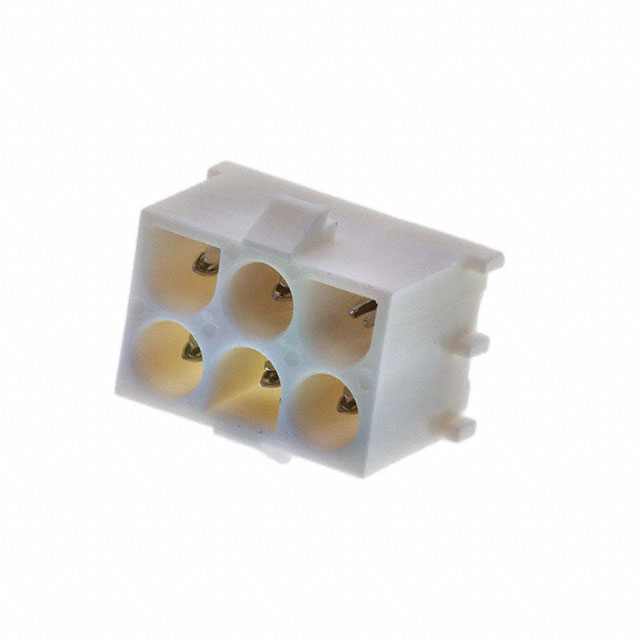

Adam Tech DME-06-S-SQ-V0	Nylon 6/6 Polyamide (PA66)	General Purpose	Circular	6.35 mm	0.25 in	0.55 in	13.97 mm	Locking Ramp	UL94 V-0	Solder	6.35 mm	0.25 in	Receptacle	Female Socket	-55 C	105 ░C	600 VAC	Through Hole	Natural	Board Guide	13 A	4.5 mm	0.177 in	6	All	3

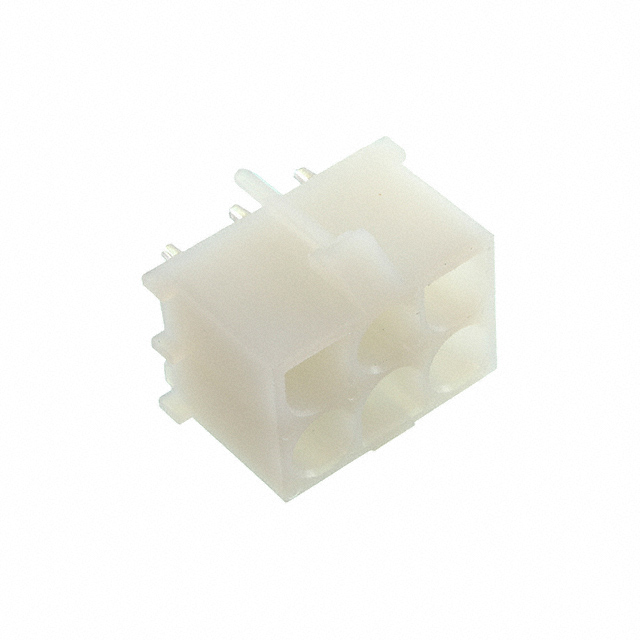

Adam Tech DME-06-S-P-SQ	Nylon 6/6 Polyamide (PA66)		Circular	6.35 mm	0.25 in	0.55 in	13.97 mm	Locking Ramp	UL94 V-2	Solder	6.35 mm	0.25 in	Header	Male Pin	-25 °C	85 °C	600 VAC	Through Hole	Natural	Polarizing Key	13 A	4.5 mm	0.177 in	6	All	3	Board to Cable/Wire	Tin	Shrouded - 4 Wall

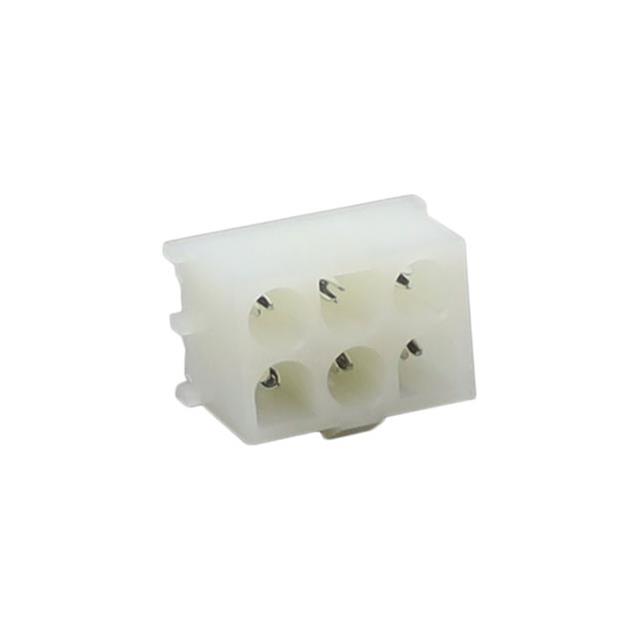

Adam Tech DME-06-S2-SQ	Nylon 6/6 Polyamide (PA66)		Circular	6.35 mm	0.25 in	0.581 "	14.75 mm 14.76 mm	Locking Ramp	UL94 V-2	Solder	6.35 mm	0.25 in	Header	Male Pin	-40 C	105 ░C		Through Hole	Natural		9 A	4 mm		6	All	3	Board to Cable/Wire	Tin	Shrouded - 4 Wall	Phosphor Bronze	0.157 in
Adam Tech DME-06-S-P-SQ-V0	Nylon 6/6 Polyamide (PA66)		Circular	6.35 mm	0.25 in	0.55 in	13.97 mm	Locking Ramp	UL94 V-0	Solder	6.35 mm	0.25 in	Header	Female Socket	-55 C	105 ░C	600 VAC	Through Hole	Natural	Polarizing Key	13 A	4.5 mm	0.177 in	6	All	3

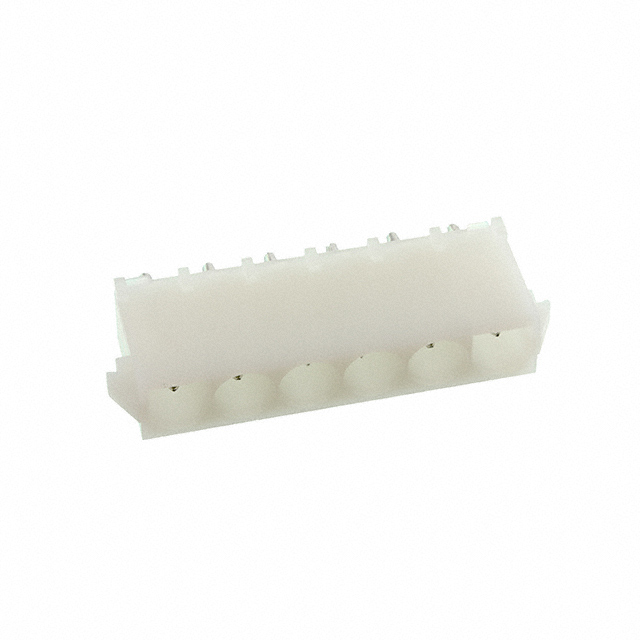

Adam Tech DME-06-S-S	Nylon 6/6 Polyamide (PA66)	General Purpose	Circular			0.55 in	13.97 mm	Locking Ramp	UL94 V-2	Solder	6.35 mm	0.25 in	Receptacle	Female Socket	-25 °C	85 °C	600 VAC	Through Hole	Natural		13 A	4.5 mm	0.177 in	6	All			Tin		Brass		1
