AWG28-37 Series

Catalog

CBL RIBN 37COND 0.05 MLT FOOT

Part	Length	First Conductor Mark	Spool Size [x]	Spool Size [x]	Conductor Material	Insulation Resistance	Length	Length	Voltage	Shielding	Jacket (Insulation) Material	Operating Temperature	Cable Type	Ribbon Thickness	Ribbon Thickness	Jacket Color	Length [x]	Length [x]	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Pitch	Pitch	Number of Conductors	Ribbon Width [custom]	Ribbon Width [custom]	Operating Temperature [Min]	Operating Temperature [Max]

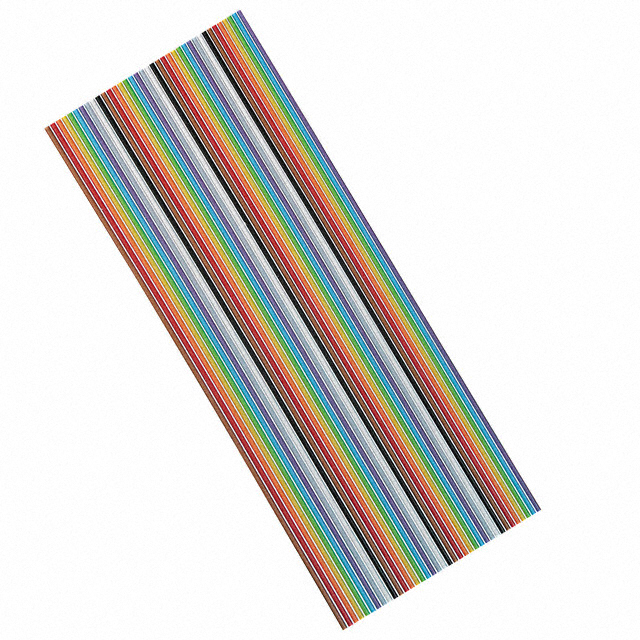

Assmann WSW Components AWG28-37/F/300	Enter Number of Feet in Order Quantity	Red	300 ft	91.44 m	Copper Tinned	100 MOhms	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	300 VDC	Unshielded	Poly-Vinyl Chloride (PVC)	105 C	Flat Cable	0.89 mm	0.035 in	Multiple	50 ft	15.24 m	28 AWG	36 AWG	7 Strands	UL Style 2651	0.05 in	1.27 mm	37	46.99 mm	1.85 in
Assmann WSW Components AWG28-37/G-1/300		Red			Copper Tinned	100 MOhms	91440 mm	3600 in	300 VDC	Unshielded	Poly-Vinyl Chloride (PVC)		Flat Cable	0.89 mm	0.035 in	Gray			28 AWG	36 AWG	7 Strands	UL Style 2651	0.039 in	1 mm	37	37.01 mm	1.457 in	-10 °C	105 ░C

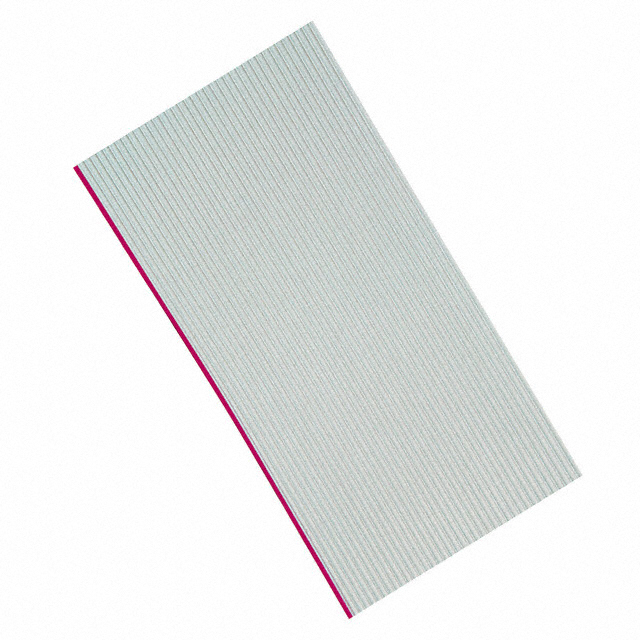

Assmann WSW Components AWG28-37/G/300		Red			Copper Tinned	100 MOhms	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	300 VDC	Unshielded	Poly-Vinyl Chloride (PVC)		Flat Cable	0.89 mm	0.035 in	Gray	50 ft	15.24 m	28 AWG	36 AWG	7 Strands	UL Style 2651	0.05 in	1.27 mm	37	46.99 mm	1.85 in	-10 °C	105 ░C
