746-059 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 59POS 0.125

Part	Material - Insulation	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Color	Mounting Type	Number of Positions/Bay/Row [custom]	Card Type	Read Out	Card Thickness [Max]	Card Thickness [Min]	Gender	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions	Contact Finish	Pitch	Pitch	Contact Type	Contact Material	Number of Rows
EDAC Inc. 746-059-525-101	Polyester Thermoplastic	1	-40 C	105 ░C	Black	Through Hole	59	Non Specified - Single Edge	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit	59	Gold	3.18 mm	0.125 in	Cantilever	Copper Alloy	1
EDAC Inc. 746-059-553-501	Polyester Thermoplastic	1	-40 C	105 ░C	Black	Through Hole	59	Non Specified - Single Edge	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit Wire Wrap	59	Gold	3.18 mm	0.125 in	Cantilever	Copper Alloy	1
EDAC Inc. 746-059-545-101	Polyester Thermoplastic	1	-40 C	105 ░C	Black	Through Hole	59	Non Specified - Single Edge	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit Wire Wrap	59	Gold	3.18 mm	0.125 in	Cantilever	Copper Alloy	1
EDAC Inc. 746-059-553-101	Polyester Thermoplastic	1	-40 C	105 ░C	Black	Through Hole	59	Non Specified - Single Edge	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit Wire Wrap	59	Gold	3.18 mm	0.125 in	Cantilever	Copper Alloy	1
EDAC Inc. 746-059-527-101	Polyester Thermoplastic	1	-40 C	105 ░C	Black	Through Hole	59	Non Specified - Single Edge	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit	59	Gold	3.18 mm	0.125 in	Cantilever	Copper Alloy	1
EDAC Inc. 746-059-545-106	Polyester Thermoplastic	1	-40 C	105 ░C	Black	Through Hole	59	Non Specified - Single Edge	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit Wire Wrap	59	Gold	3.18 mm	0.125 in	Cantilever	Copper Alloy	1

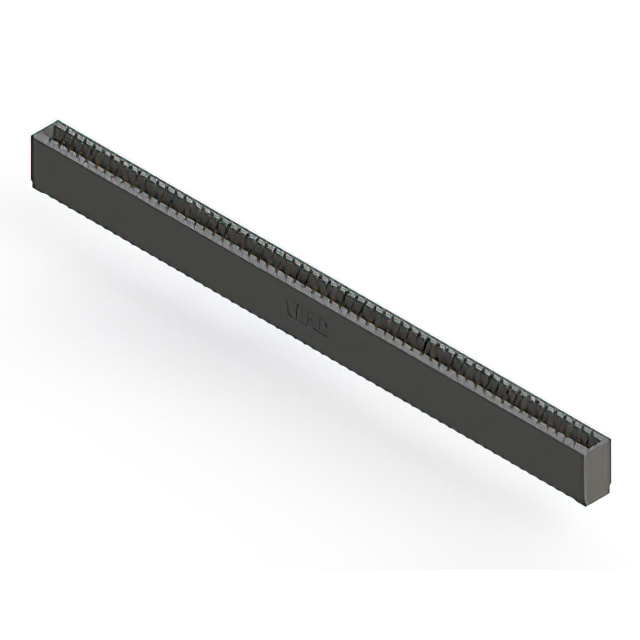

EDAC Inc. 746-059-525-501	Polyester Thermoplastic	1	-40 C	105 ░C	Black	Through Hole	59	Non Specified - Single Edge	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit	59	Gold	3.18 mm	0.125 in	Cantilever	Copper Alloy	1
EDAC Inc. 746-059-527-106	Polyester Thermoplastic	1	-40 C	105 ░C	Black	Through Hole	59	Non Specified - Single Edge	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit	59	Gold	3.18 mm	0.125 in	Cantilever	Copper Alloy	1
EDAC Inc. 746-059-527-501	Polyester Thermoplastic	1	-40 C	105 ░C	Black	Through Hole	59	Non Specified - Single Edge	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit	59	Gold	3.18 mm	0.125 in	Cantilever	Copper Alloy	1
EDAC Inc. 746-059-525-106	Polyester Thermoplastic	1	-40 C	105 ░C	Black	Through Hole	59	Non Specified - Single Edge	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit	59	Gold	3.18 mm	0.125 in	Cantilever	Copper Alloy	1
