04980903ZXT Series

MIDI FUSE HOLDER

Catalog

MIDI FUSE HOLDER

Part	Fuseholder Type	Fuse Type	Termination Style	Fuse Size [y]	Fuse Size [z]	Fuse Size [x]	Fuse Size [z]	Fuse Size [y]	Fuse Size [x]	For Use With/Related Products	Mounting Type	Current Rating (Amps)	Number of Circuits
LITTELFUSE 04980903ZXT	Holder	Bolt Down	Bolt Down	12 mm	8.3 mm	1.614 in	0.327 in	0.472 in	41 mm	MIDI (AMI)	Panel Mount	200 A	1

Catalog

MIDI FUSE HOLDER

Description

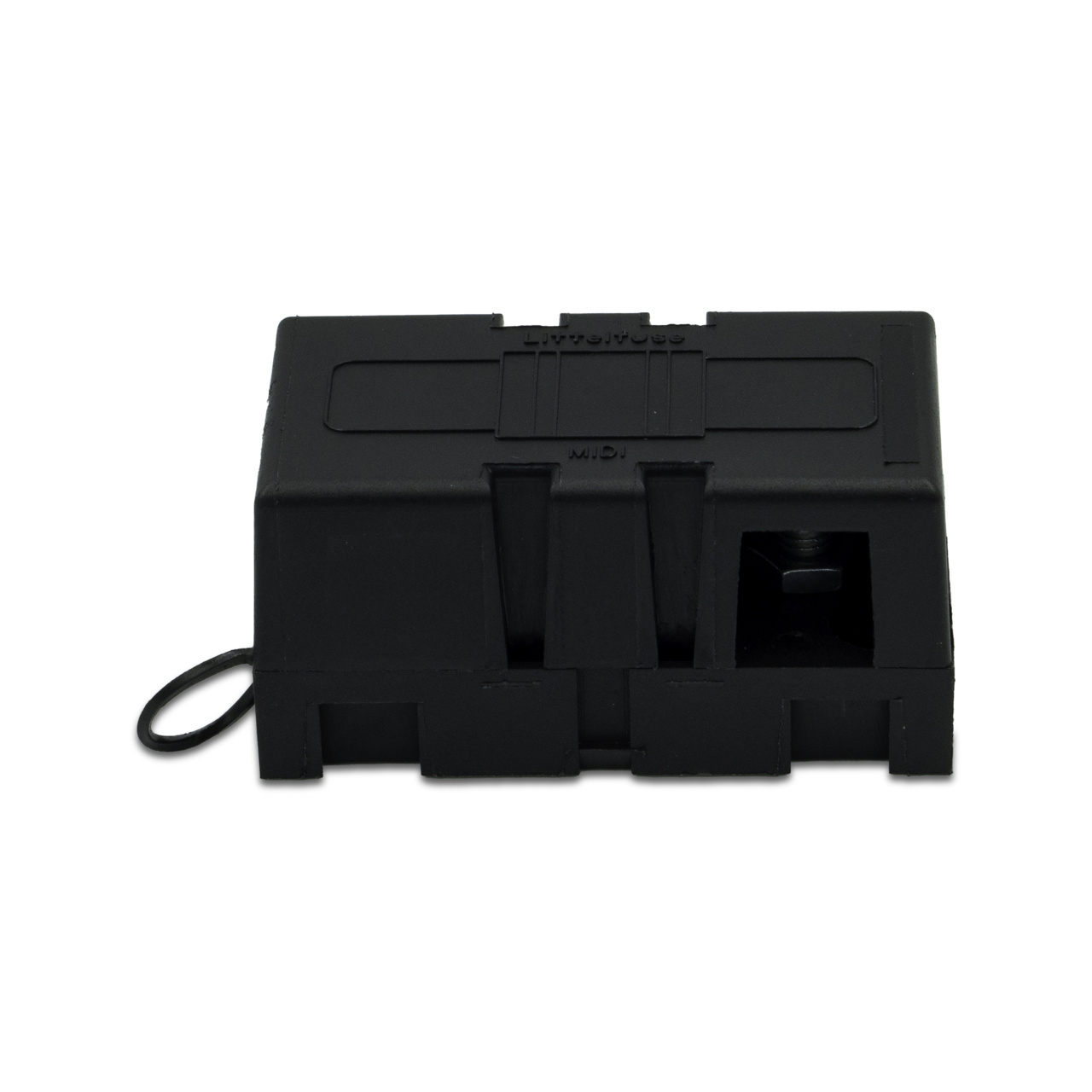

Thanks to interlocking pins on its sides, the MIDI® 498 Series 58 V Bolt-Down High-Current Fuse Holder can be used as a single automotive fuse holder or combined with additional fuse holders to create a multi-fuse block. Compatible with MIDI® bolt-down fuses (sold separately) up to 200 amps, the high-amp fuse holder comes with a protective thermoplastic cover that can be tethered to the base. This model of the MIDI® 498 Series fuse holder (04980903ZXT) includes a base with mounting tabs and a protective cover with cable openings at the ends. Split washers and hex nuts are included for simple installation of a fuse on the M5 threaded studs.
