EN2C2F Series

Catalog

CONN PLUG FMALE 2POS GOLD CRIMP

Part	Backshell Material, Plating	Contact Finish - Mating	Voltage Rating	Orientation	Mounting Type	Fastening Type	Connector Type	Features	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Current Rating (Amps)	Shielding	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Number of Positions	Contact Material	Color	Insert Material	Material Flammability Rating	Applications	Primary Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]

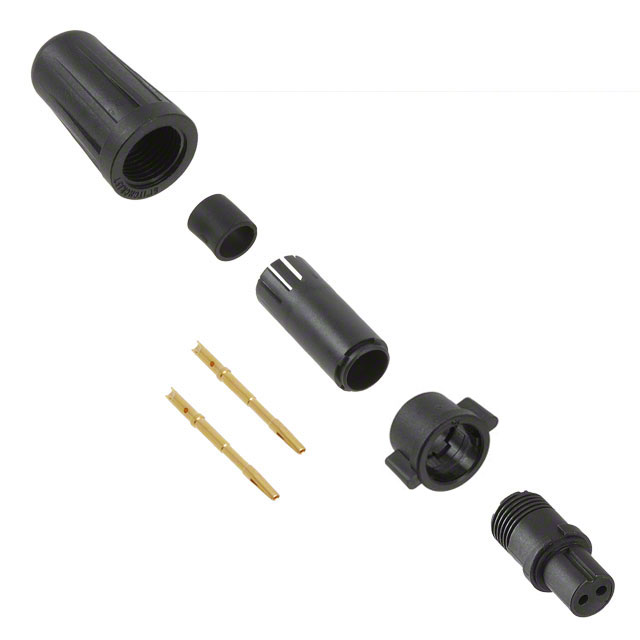

Switchcraft Inc. EN2C2F20G3W	Thermoplastic	Gold	250 VAC	Keyed	Free Hanging (In-Line)	Bayonet Lock	Female Sockets Plug	Backshell Coupling Nut Winged	0.18 in	0.22 in	4.57 mm	5.59 mm	3.5 A	Unshielded	Crimp Solder Cup	85 °C	-40 °C	IP66 IP67 IP68	2	Copper Alloy	Black	Elastomer	UL94 V-0	Communication Systems Industrial Marine Medical	Plastic

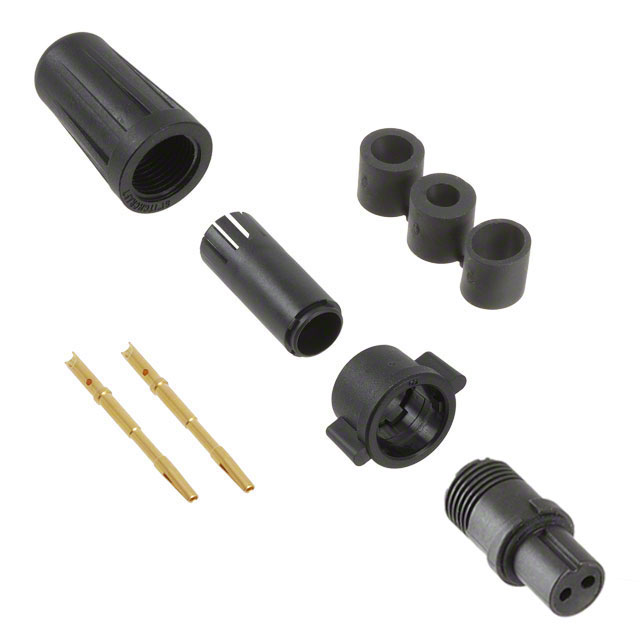

Switchcraft Inc. EN2C2F20DCW	Thermoplastic	Gold	250 VAC	Keyed	Free Hanging (In-Line)	Bayonet Lock	Female Sockets Plug	Backshell Coupling Nut Winged					3.5 A	Unshielded	Crimp Solder Cup	85 °C	-40 °C	IP66 IP67 IP68	2	Copper Alloy	Black	Elastomer	UL94 V-0	Communication Systems Industrial Marine Medical	Plastic

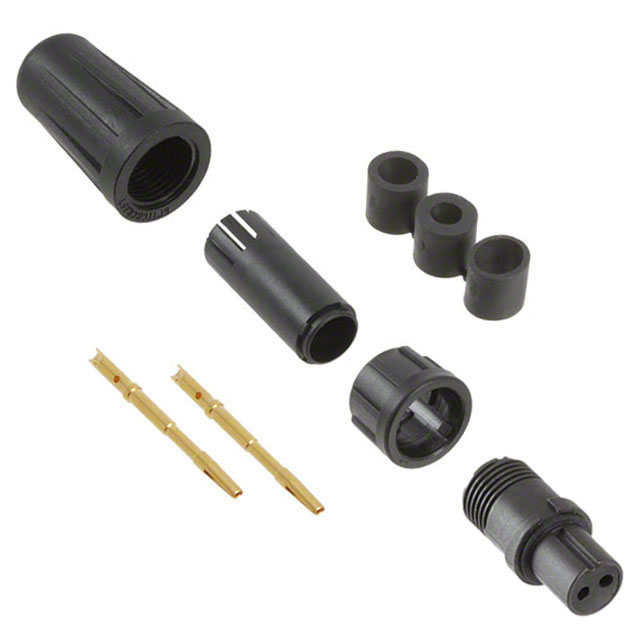

Switchcraft Inc. EN2C2F20DC	Thermoplastic	Gold	250 VAC	Keyed	Free Hanging (In-Line)	Bayonet Lock	Female Sockets Plug	Backshell Coupling Nut					3.5 A	Unshielded	Crimp Solder Cup	85 °C	-40 °C	IP66 IP67 IP68	2	Copper Alloy	Black	Elastomer	UL94 V-0	Communication Systems Industrial Marine Medical	Plastic
Switchcraft Inc. EN2C2F20G3	Thermoplastic	Gold	250 VAC	Keyed	Free Hanging (In-Line)	Bayonet Lock	Female Sockets Plug	Backshell Coupling Nut	0.18 in	0.22 in	4.57 mm	5.59 mm	3.5 A	Unshielded	Crimp Solder Cup	85 °C	-40 °C	IP66 IP67 IP68	2	Copper Alloy	Black	Elastomer	UL94 V-0	Communication Systems Industrial Marine Medical	Plastic

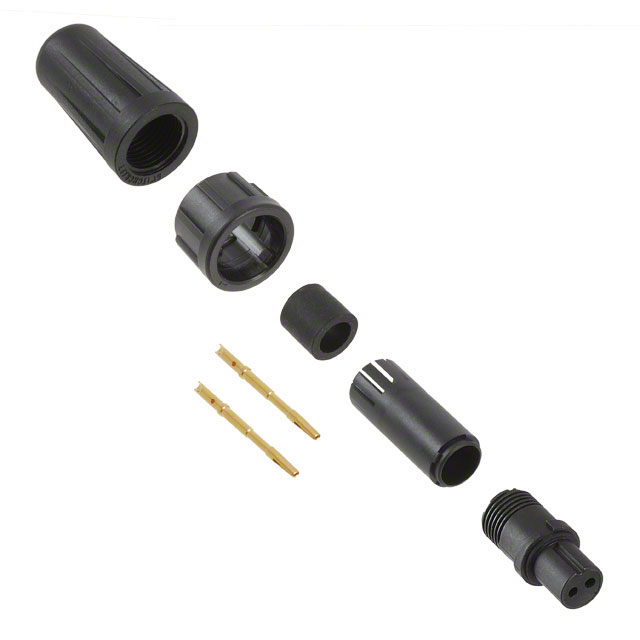

Switchcraft Inc. EN2C2F20G2	Thermoplastic	Gold	250 VAC	Keyed	Free Hanging (In-Line)	Bayonet Lock	Female Sockets Plug	Backshell Coupling Nut					3.5 A	Unshielded	Crimp Solder Cup	85 °C	-40 °C	IP66 IP67 IP68	2	Copper Alloy	Black	Elastomer	UL94 V-0	Communication Systems Industrial Marine Medical	Plastic	4.57 mm	3.56 mm	0.14 in	0.18 in

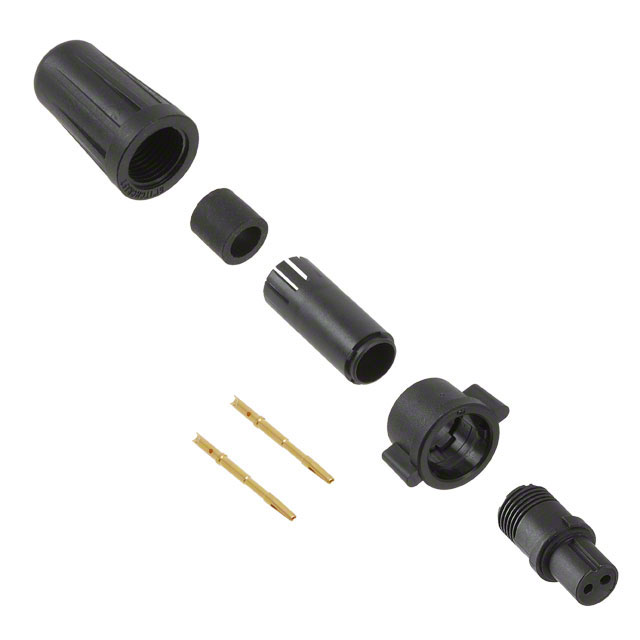

Switchcraft Inc. EN2C2F20G2W	Thermoplastic	Gold	250 VAC	Keyed	Free Hanging (In-Line)	Bayonet Lock	Female Sockets Plug	Backshell Coupling Nut Winged					3.5 A	Unshielded	Crimp Solder Cup	85 °C	-40 °C	IP66 IP67 IP68	2	Copper Alloy	Black	Elastomer	UL94 V-0	Communication Systems Industrial Marine Medical	Plastic	4.57 mm	3.56 mm	0.14 in	0.18 in
