76508TS Series
Manufacturer: Belden Inc.
Beta
⌘K

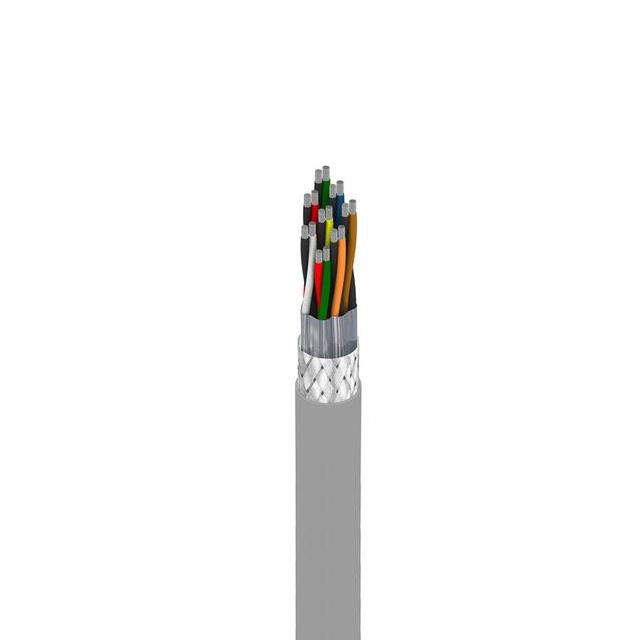

MULTI-PAIR 16CON 26AWG GRAY
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Cable Type | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Voltage | Number of Conductors | Jacket Color | Conductor Strand [x] | Conductor Strand [x] | Jacket (Insulation) Material | Ratings | Conductor Material | Shield Type | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | 0.355 in | 9.02 mm | Drain Wire Oil Resistant | Multi-Pair | 26 AWG | 1.016 mm | 0.04 in | 100 ft | 30.5 m | 300 VDC | 16 | Gray | 34 AWG | 7 | Poly-Vinyl Chloride (PVC) | UL Style 20006 | Copper Tinned | Braid Foil | Poly-Vinyl Chloride (PVC) | ||
Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | 0.355 in | 9.02 mm | Drain Wire Oil Resistant | Multi-Pair | 26 AWG | 1.016 mm | 0.04 in | 300 VDC | 16 | Gray | 34 AWG | 7 | Poly-Vinyl Chloride (PVC) | UL Style 20006 | Copper Tinned | Braid Foil | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft |
