053517 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 3POS 2.5MM

Part	Insulation Color	Contact Material	Mounting Type	Connector Type	Termination	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Contact Shape	Insulation Material	Style	Number of Rows	Number of Positions Loaded	Fastening Type	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Type	Features	Voltage Rating	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Number of Positions

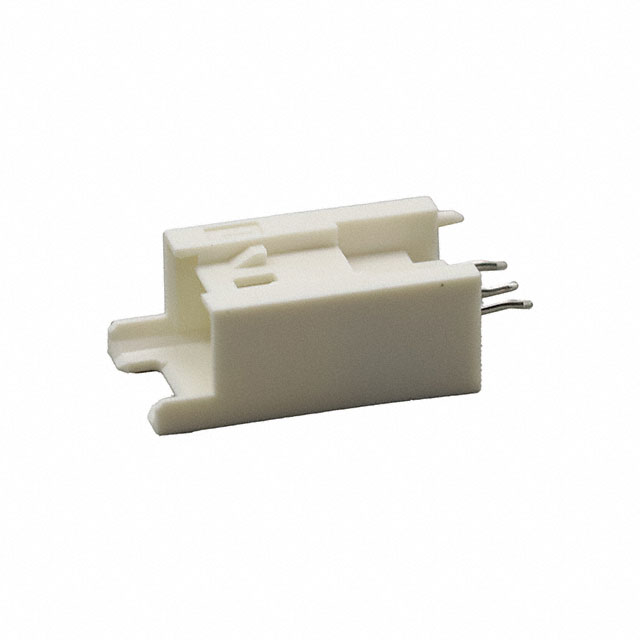

Molex 0535170330	Natural	Phosphor Bronze	Through Hole	Header	Kinked Pin Solder	Shrouded - 4 Wall	-40 °C	105 ░C	General Purpose Industrial	Circular	Nylon Polyamide (PA)	Board to Cable/Wire	1	All	Locking Ramp	2.5 mm	0.098 in	Varies by Wire Gauge	1 µm	39.4 µin	Tin	1 çm	39.4 çin	0.689 in	17.5 mm	3.5 mm	0.138 in	Male Pin	Board Guide Glow Wire Compliant	250 VDC	UL94 V-0
Molex 0535171210

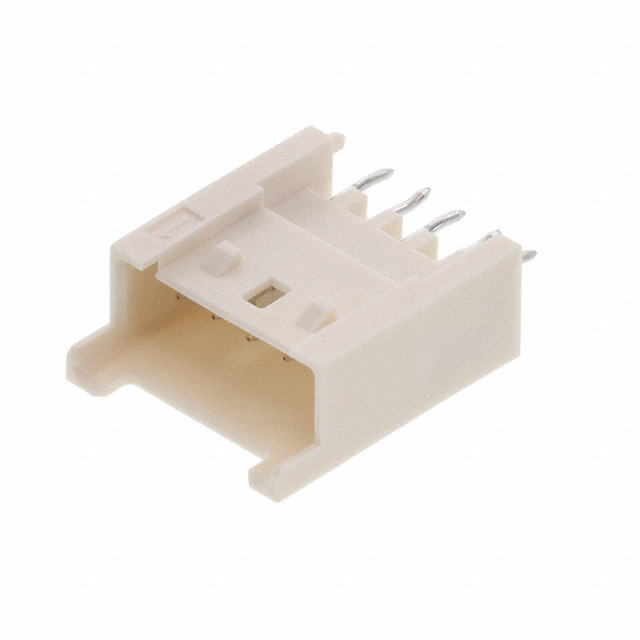

Molex 0535170530	Natural	Phosphor Bronze	Through Hole	Header	Kinked Pin Solder	Shrouded - 4 Wall	-40 °C	105 ░C	General Purpose Industrial	Circular	Nylon Polyamide (PA)	Board to Cable/Wire	1	All	Locking Ramp	2.5 mm	0.098 in	Varies by Wire Gauge	1 µm	39.4 µin	Tin	1 çm	39.4 çin	0.689 in	17.5 mm	3.5 mm	0.138 in	Male Pin	Board Guide Glow Wire Compliant	250 VDC	UL94 V-0
Molex 0535170810	Natural	Phosphor Bronze	Through Hole	Header	Kinked Pin Solder	Shrouded - 4 Wall			General Purpose Industrial	Circular	Nylon Polyamide (PA)	Board to Cable/Wire	1	All	Locking Ramp	2.5 mm	0.098 in				Tin			0.689 in	17.5 mm	3.5 mm	0.138 in	Male Pin	Board Guide Glow Wire Compliant		UL94 V-0	15.5 mm	0.61 in	4 mm	0.157 in	8

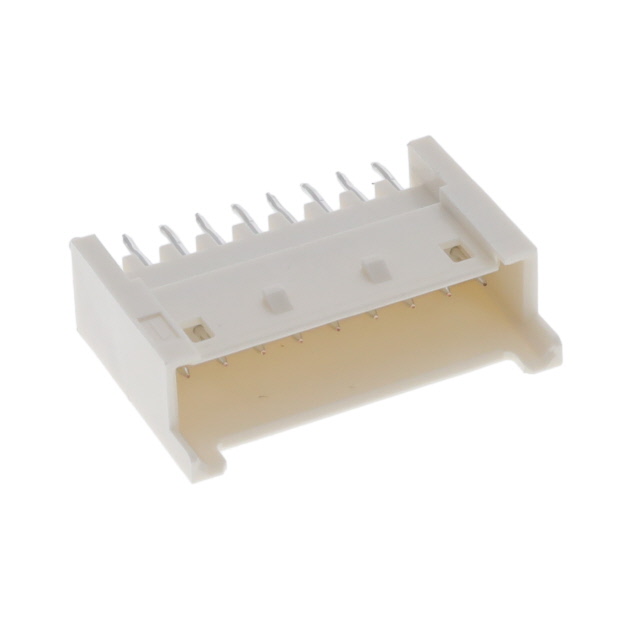

Molex 0535170930	Natural	Phosphor Bronze	Through Hole	Header	Kinked Pin Solder	Shrouded - 4 Wall	-40 °C	105 ░C	General Purpose Industrial	Circular	Nylon Polyamide (PA)	Board to Cable/Wire	1	All	Locking Ramp	2.5 mm	0.098 in	Varies by Wire Gauge	1 µm	39.4 µin	Tin	1 çm	39.4 çin	0.689 in	17.5 mm	3.5 mm	0.138 in	Male Pin	Board Guide Glow Wire Compliant	250 VDC	UL94 V-0					9
Molex 0535171010	Natural	Phosphor Bronze	Through Hole	Header	Kinked Pin Solder	Shrouded - 4 Wall			General Purpose Industrial	Circular	Nylon Polyamide (PA)	Board to Cable/Wire	1	All	Locking Ramp	2.5 mm	0.098 in				Tin			0.689 in	17.5 mm	3.5 mm	0.138 in	Male Pin	Board Guide Glow Wire Compliant		UL94 V-0	15.5 mm	0.61 in	4 mm	0.157 in	10

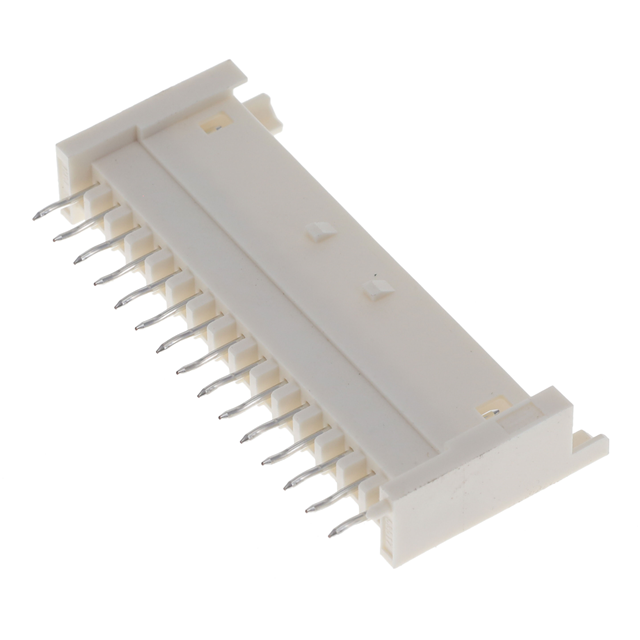

Molex 0535171530	Natural	Phosphor Bronze	Through Hole	Header	Kinked Pin Solder	Shrouded - 4 Wall	-40 °C	105 ░C	General Purpose Industrial	Circular	Nylon Polyamide (PA)	Board to Cable/Wire	1	All	Locking Ramp	2.5 mm	0.098 in	Varies by Wire Gauge	1 µm	39.4 µin	Tin	1 çm	39.4 çin	0.689 in	17.5 mm	3.5 mm	0.138 in	Male Pin	Board Guide Glow Wire Compliant	250 VDC	UL94 V-0					15
Molex 0535171130	Natural	Phosphor Bronze	Through Hole	Header	Kinked Pin Solder	Shrouded - 4 Wall	-40 °C	105 ░C	General Purpose Industrial	Circular	Nylon Polyamide (PA)	Board to Cable/Wire	1	All	Locking Ramp	2.5 mm	0.098 in	Varies by Wire Gauge	1 µm	39.4 µin	Tin	1 çm	39.4 çin	0.689 in	17.5 mm	3.5 mm	0.138 in	Male Pin	Board Guide Glow Wire Compliant	250 VDC	UL94 V-0					11
Molex 0535171110
Molex 0535170710	Natural	Phosphor Bronze	Through Hole	Header	Kinked Pin Solder	Shrouded - 4 Wall			General Purpose Industrial	Circular	Nylon Polyamide (PA)	Board to Cable/Wire	1	All	Locking Ramp	2.5 mm	0.098 in				Tin			0.689 in	17.5 mm	3.5 mm	0.138 in	Male Pin	Board Guide Glow Wire Compliant		UL94 V-0	15.5 mm	0.61 in	4 mm	0.157 in	7
