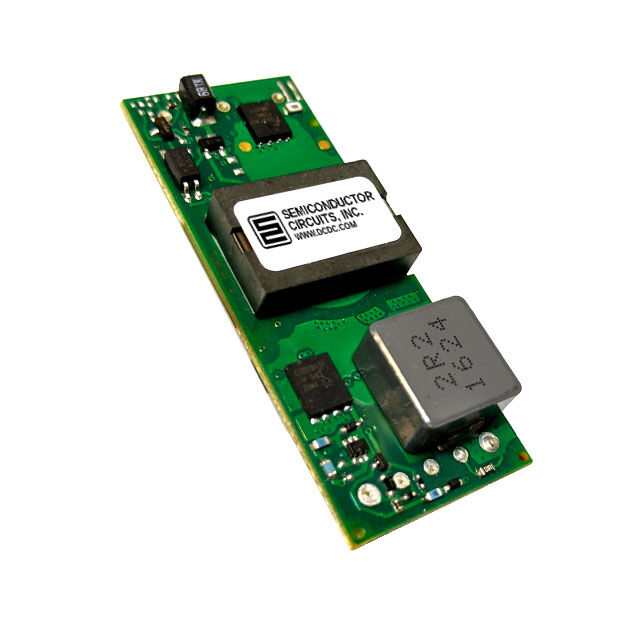

CPE20A36 Series

Catalog

DC DC CONVERTER 5V 100W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Package / Case	Type	Number of Outputs	Voltage - Input (Max) [Max]	Applications	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Output 1	Mounting Type	Supplier Device Package	Features	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Control Features
Semiconductor Circuits, Inc. CPE20A36N	-40 °C	85 °C	CSA TUV UL	Eighth Brick	Isolated Module	1	75 V	ITE (Commercial)	100 W	18 V	2250 VDC	20 A	5 V	Through Hole	Eighth Brick	Adjustable Output Remote On/Off	93.5 %	0.9 in	0.46 in	2.3 in	22.9 mm	58.4 mm	11.8 mm	Active Low Enable
Semiconductor Circuits, Inc. CPE20A36P	-40 °C	85 °C	CSA TUV UL	Eighth Brick	Isolated Module	1	75 V	ITE (Commercial)	100 W	18 V	2250 VDC	20 A	5 V	Through Hole	Eighth Brick	Adjustable Output Remote On/Off Remote Sense	93.5 %	0.9 in	0.46 in	2.3 in	22.9 mm	58.4 mm	11.8 mm	Active High Enable
