BZE6-2 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 15A 125V
| Part | Circuit | Switch Function | Termination Style | Pretravel | Pretravel | Current Rating (Amps) | Ingress Protection | Operating Force [Min] | Operating Force [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Features | Voltage Rating - DC | Differential Travel | Differential Travel | Mounting Type | Actuator Type | Release Force | Overtravel | Overtravel | Operating Position | Operating Position | Operating Force [Min] [custom] | Operating Force [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

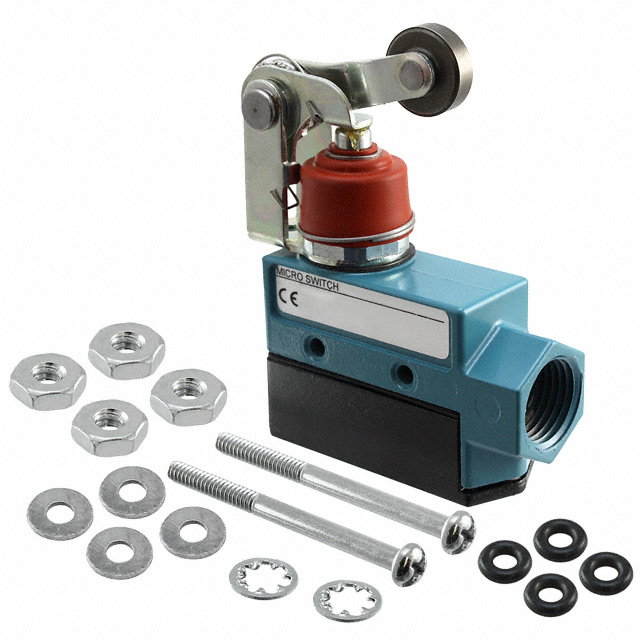

 Honeywell Sensing and Productivity Solutions | SPDT | On-Mom | Screw Terminal | 0.188 in | 4.8 mm | 15 A 500 mA | IP66 | 397 gf | 737 gf | -40 °C | 70 °C | 125 V | Actuator Seal Boot | 125 VDC | 0.15 mm | 0.006 in | Chassis Mount | Lever Roller | 283 gf | 5.6 mm | 0.219 in | ||||
Honeywell Sensing and Productivity Solutions | |||||||||||||||||||||||||

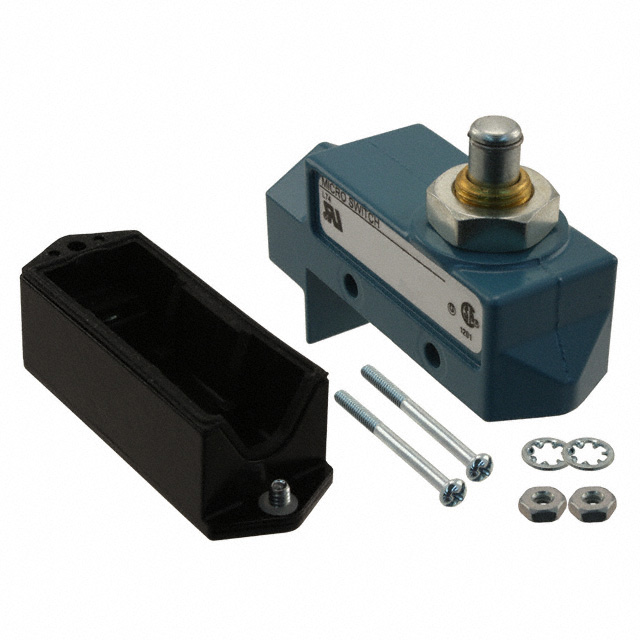

 Honeywell Sensing and Productivity Solutions | SPDT | On-Mom | Screw Terminal | 0.015 in | 0.4 mm | 15 A 500 mA | IP40 | 255 gf | 368 gf | 125 V | 125 VDC | 0.05 mm | 0.002 in | Chassis Mount | Round (Pin Plunger) | 113 gf | 5.6 mm | 0.219 in | 1.5 in | 38.1 mm | |||||
Honeywell Sensing and Productivity Solutions | SPDT | On-Mom | Screw Terminal | 0.188 in | 4.8 mm | 15 A 500 mA | IP66 | 397 gf | 737 gf | 125 V | Actuator Seal Boot | 125 VDC | 0.15 mm | 0.006 in | Chassis Mount | Lever Roller | 283 gf | 5.6 mm | 0.219 in | ||||||

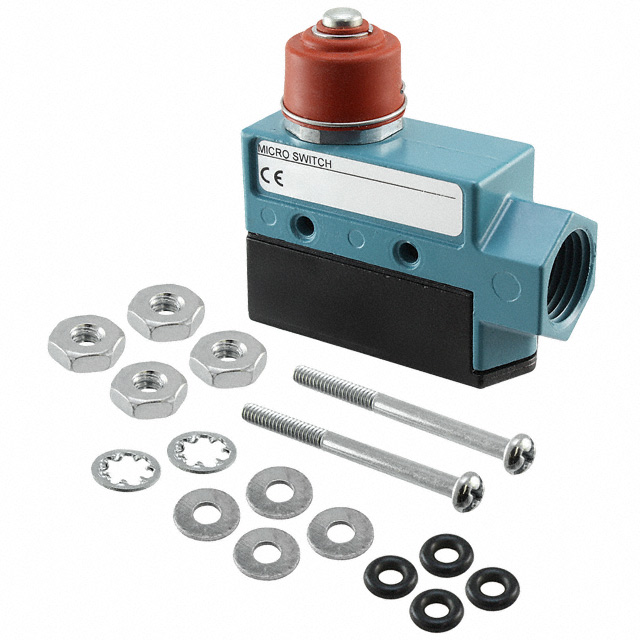

 Honeywell Sensing and Productivity Solutions | SPDT | On-Mom | Screw Terminal | 0.078 " | 2 mm | 15 A 500 mA | IP66 | 425 gf | 1106 gf | 125 V | Actuator Seal Boot | 125 VDC | 0.05 mm | 0.002 in | Chassis Mount | Round (Pin Plunger) | 283 gf | 5.6 mm | 0.219 in | 1.72 " | 43.7 mm | ||||
Honeywell Sensing and Productivity Solutions | |||||||||||||||||||||||||

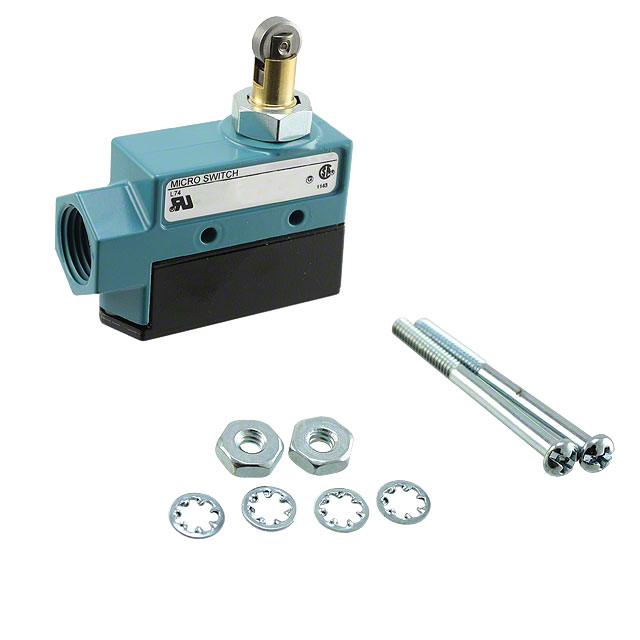

 Honeywell Sensing and Productivity Solutions | SPDT | On-Mom | Screw Terminal | 0.015 in | 0.4 mm | 15 A 500 mA | IP40 | 255 gf | 368 gf | 125 V | 125 VDC | 0.05 mm | 0.002 in | Chassis Mount | Roller Plunger | 113 gf | 3.6 mm | 0.141 in | 1.953 in | 49.6 mm | |||||
Honeywell Sensing and Productivity Solutions | SPDT | On-Mom | Screw Terminal | 0.188 in | 4.8 mm | 15 A 500 mA | IP40 | 125 V | 125 VDC | 0.15 mm | 0.006 in | Chassis Mount | Lever Roller | 170 gf | 5.6 mm | 0.219 in | 283 | 510 |
