74HC04 Series

Catalog

IC INVERTER 6CH 1-INP 14DIP

Part	Number of Inputs [custom]	Supplier Device Package	Max Propagation Delay @ V, Max CL	Mounting Type	Logic Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Circuits	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Current - Quiescent (Max) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Package / Case	Package / Case	Package / Case

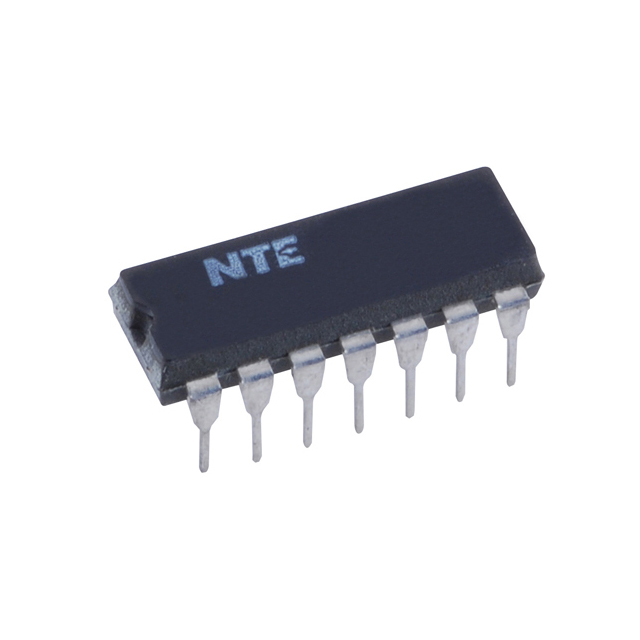

NTE Electronics, Inc NTE74HC04	1	14-DIP	16 ns	Through Hole	Inverter	5.2 mA	5.2 mA	6	1.5 V	4.2 V	40 µA	6 V	2 V	125 °C	-40 °C	1.8 V	0.5 V	14-DIP	0.3 in	7.62 mm
