ED130 Series

Catalog

TERM BLOCK PLUG 5POS 90DEG 5MM

Part	Insulation Height [z]	Insulation Height [z]	Screw Size	Material Flammability Rating	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm˛	Contact Material	Wire Strip Length	Housing Material	Positions Per Level	Wire Gauge or Range - mm²	Plug Wire Entry	Termination Style	Pitch	Pitch	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Current - UL	Type	Color	Number of Positions	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Positions Per Level [custom]

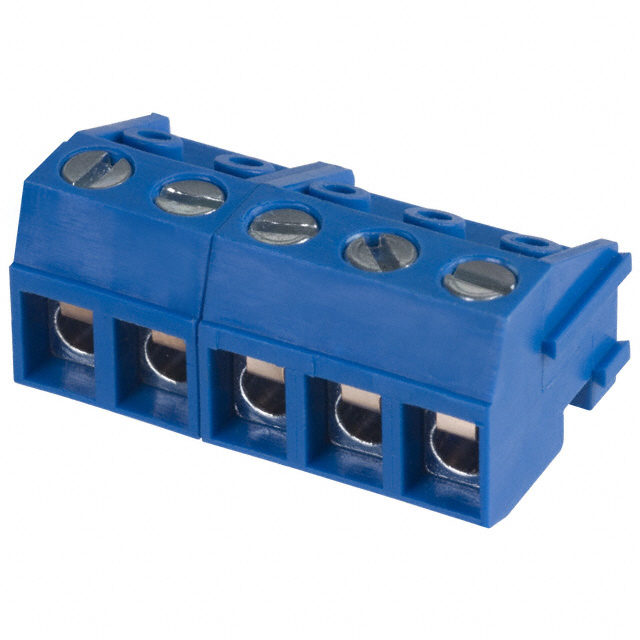

On Shore Technology Inc. ED130/5DS	10.8 mm	0.425 in	M2.6	UL94 V-0	3.5 Lb-In	0.4 Nm	1.5 mm˛	Copper Beryllium	6 mm	Polyamide (PA) Nylon	5	1.5 mm²	90 °	Screw	0.197 in	5 mm	14 AWG	22 AWG	1	10 A	Plug for Unshrouded Header	Blue	5	300 V	-30 ░C	105 ░C	Interlocking (Side)	Free Hanging (In-Line)

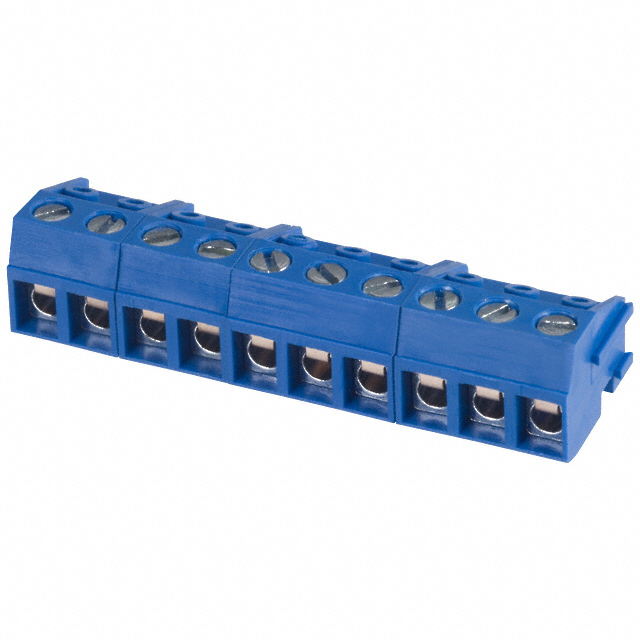

On Shore Technology Inc. ED130/10DS	10.8 mm	0.425 in	M2.6	UL94 V-0	3.5 Lb-In	0.4 Nm	1.5 mm˛	Copper Beryllium	6 mm	Polyamide (PA) Nylon	10	1.5 mm²	90 °	Screw	0.197 in	5 mm	14 AWG	22 AWG	1	10 A	Plug for Unshrouded Header	Blue	10	300 V	-30 ░C	105 ░C	Interlocking (Side)	Free Hanging (In-Line)

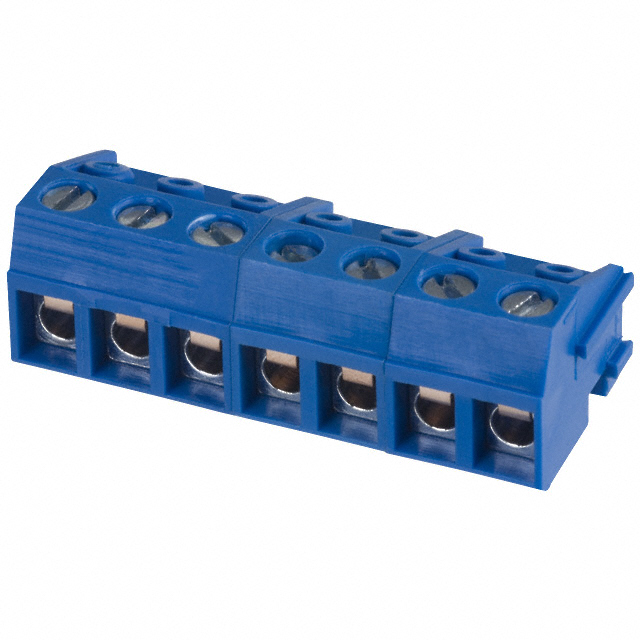

On Shore Technology Inc. ED130/7DS	10.8 mm	0.425 in	M2.6	UL94 V-0	3.5 Lb-In	0.4 Nm	1.5 mm˛	Copper Beryllium	6 mm	Polyamide (PA) Nylon		1.5 mm²	90 °	Screw	0.197 in	5 mm	14 AWG	22 AWG	1	10 A	Plug for Unshrouded Header	Blue	7	300 V	-30 ░C	105 ░C	Interlocking (Side)	Free Hanging (In-Line)	7

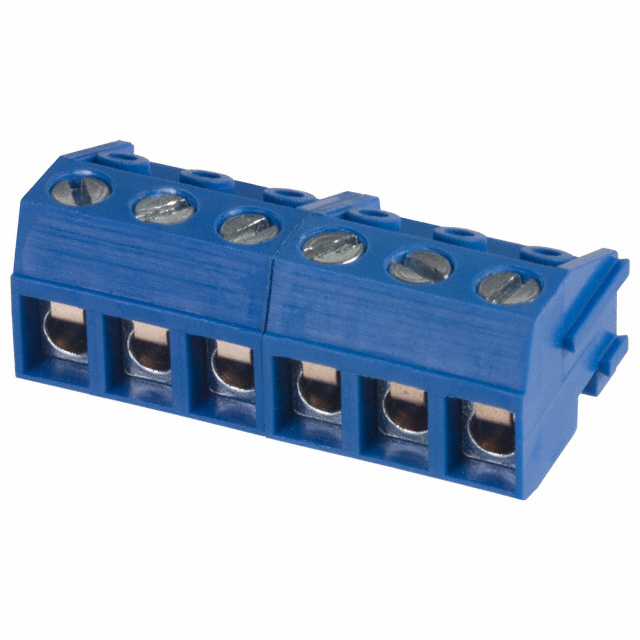

On Shore Technology Inc. ED130/6DS	10.8 mm	0.425 in	M2.6	UL94 V-0	3.5 Lb-In	0.4 Nm	1.5 mm˛	Copper Beryllium	6 mm	Polyamide (PA) Nylon	6	1.5 mm²	90 °	Screw	0.197 in	5 mm	14 AWG	22 AWG	1	10 A	Plug for Unshrouded Header	Blue	6	300 V	-30 ░C	105 ░C	Interlocking (Side)	Free Hanging (In-Line)

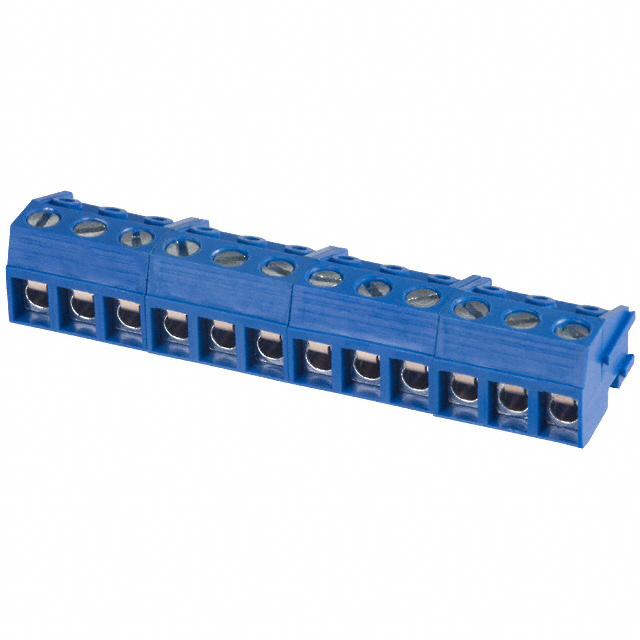

On Shore Technology Inc. ED130/12DS	10.8 mm	0.425 in	M2.6	UL94 V-0	3.5 Lb-In	0.4 Nm		Copper Beryllium	6 mm	Polyamide (PA) Nylon	12	1.5 mm²	90 °	Screw	0.197 in	5 mm	14 AWG	22 AWG	1	10 A	Plug for Unshrouded Header	Blue	12	300 V	-30 ░C	105 ░C	Interlocking (Side)	Free Hanging (In-Line)

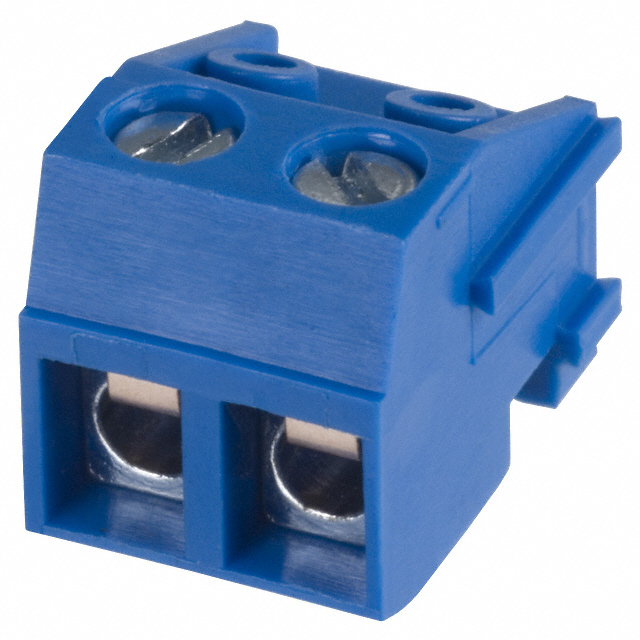

On Shore Technology Inc. ED130/2DS	10.8 mm	0.425 in	M2.6	UL94 V-0	3.5 Lb-In	0.4 Nm	1.5 mm˛	Copper Beryllium	6 mm	Polyamide (PA) Nylon	2	1.5 mm²	90 °	Screw	0.197 in	5 mm	14 AWG	22 AWG	1	10 A	Plug for Unshrouded Header	Blue	2	300 V	-30 ░C	105 ░C	Interlocking (Side)	Free Hanging (In-Line)
