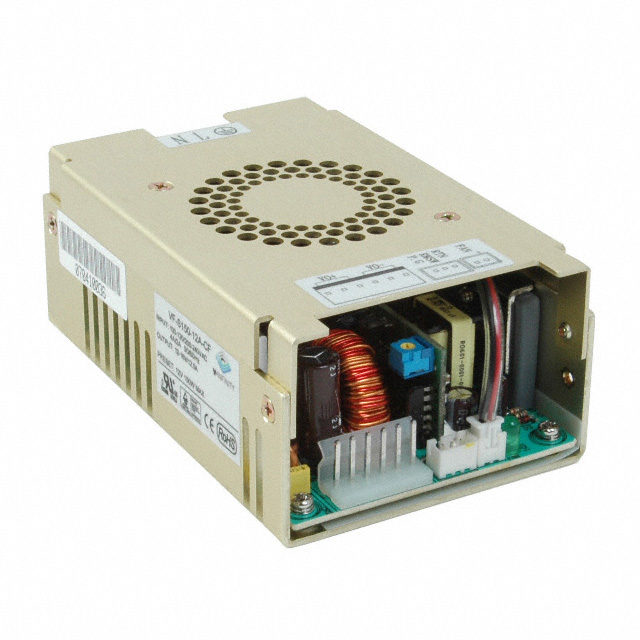

VF-S250 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 12V 250W
| Part | Mounting Type | Applications | Type | Power (Watts) | Efficiency | Voltage - Isolation | Approval Agency | Voltage - Input [Max] | Voltage - Input [Min] | Number of Outputs | Standard Number | Current - Output 1 | Voltage - Output 1 | Features | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Chassis Mount | ITE (Commercial) | Enclosed | 250 W | 80 % | 3000 V | CB Scheme EN IEC SIQ TUV UL | 264 VAC | 90 VAC | 1 | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 | 20.83 A | 12 V | Adjustable Output PFC Remote On/Off Universal Input | 5 " | 50.8 mm | 127 mm | 2 in | 81.3 mm | 3.2 " | 70 °C | 0 °C |
CUI Inc. | Chassis Mount | ITE (Commercial) | Enclosed | 250 W | 83 % | 3000 V | CB Scheme EN IEC SIQ TUV UL | 264 VAC | 90 VAC | 1 | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 | 10.42 A | 24 V | Adjustable Output PFC Remote On/Off Universal Input | 5 " | 50.8 mm | 127 mm | 2 in | 81.3 mm | 3.2 " | 70 °C | 0 °C |

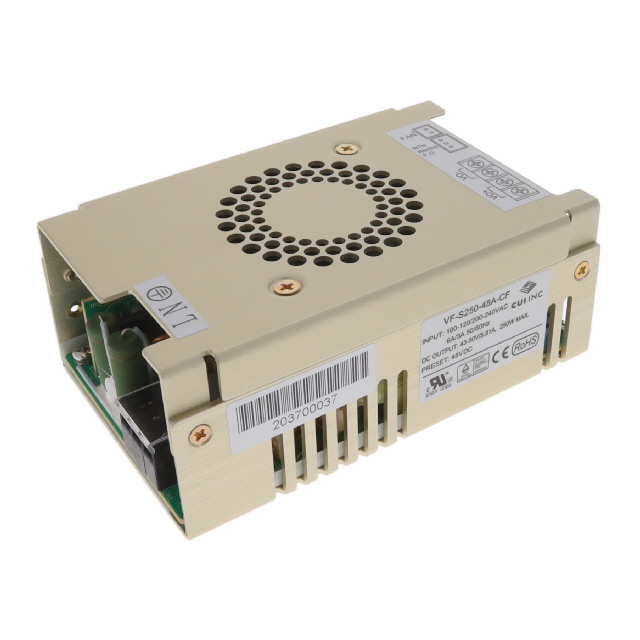

 CUI Inc. | Chassis Mount | ITE (Commercial) | Enclosed | 250 W | 83 % | 3000 V | CB Scheme EN IEC SIQ TUV UL | 264 VAC | 90 VAC | 1 | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 | 5.21 A | 48 V | Adjustable Output PFC Remote On/Off Universal Input | 5 " | 50.8 mm | 127 mm | 2 in | 81.3 mm | 3.2 " | 70 °C | 0 °C |

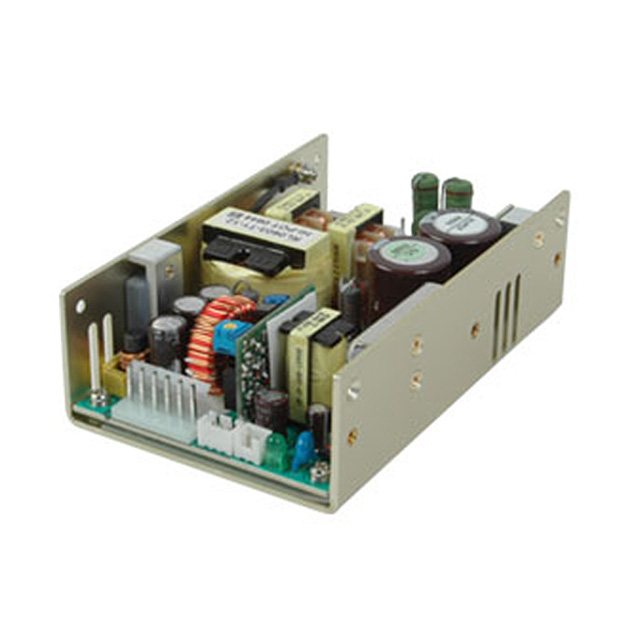

 CUI Inc. | Chassis Mount | ITE (Commercial) | Open Frame | 250 W | 83 % | 3000 V | CB Scheme EN IEC SIQ TUV UL | 264 VAC | 90 VAC | 1 | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 | 10.42 A | 24 V | Adjustable Output PFC Remote On/Off Universal Input | 5 " | 38.1 mm | 127 mm | 1.5 in | 81.3 mm | 3.2 " | 70 °C | 0 °C |
