127-0701 Series
Manufacturer: Cinch Connectivity Solutions Johnson
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

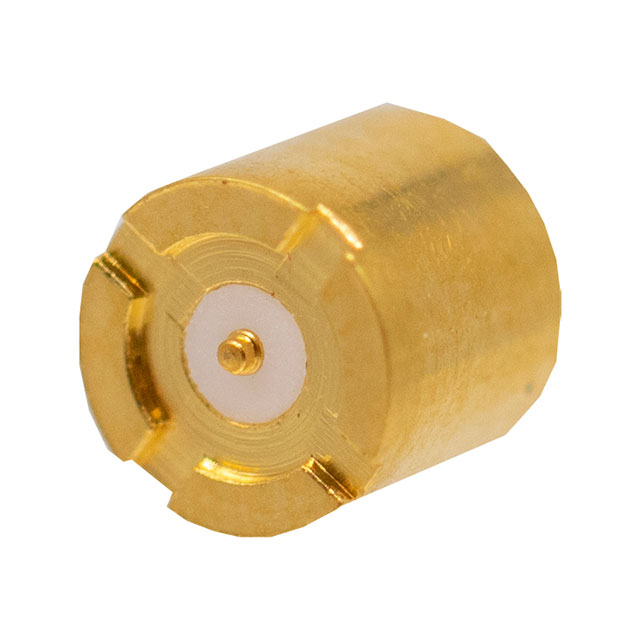

SMP MALE, STRAIGHT SURFACE MOUNT
| Part | Mounting Type | Housing Color | Shield Termination | Contact Termination | Connector Style | Connector Type | Fastening Type | Frequency - Max | Impedance | Features | Center Contact Material | Number of Ports | Dielectric Material | Body Material | Mating Cycles | Center Contact Plating | Voltage Rating | Operating Temperature (Min) | Operating Temperature (Max) | Body Finish | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions Johnson | Surface Mount | Gold | Solder | Solder | SMP | Male Pin Plug | Snap-On | 18 GHz | 50 Ohm | Full Detent | Beryllium Copper | 1 | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 100 cycles | Gold | 325 V | -65 °C | 165 °C | Gold | |

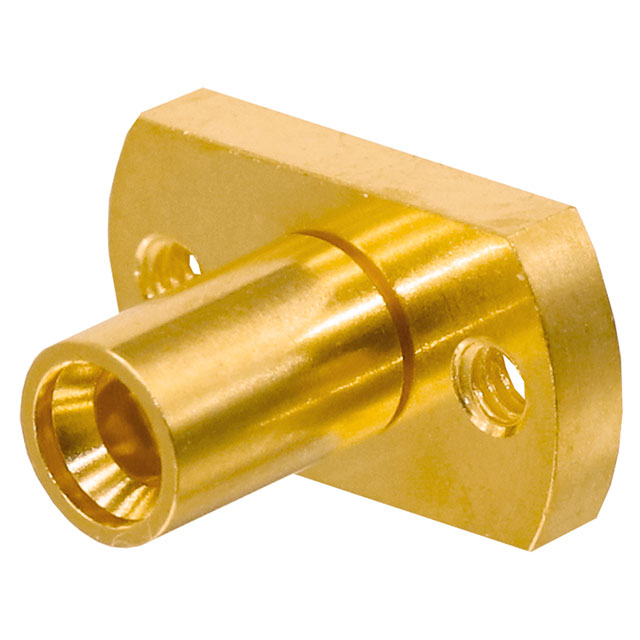

 Cinch Connectivity Solutions Johnson | Surface Mount | Gold | Compression | SMP | Jack Male Pin | Snap-On | 40 Gbps | 50 Ohm | Full Detent | Beryllium Copper | 1 | Polytetrafluoroethylene (PTFE) | Beryllium Copper Brass | 100 cycles | Gold | 335 V | -65 °C | 165 °C | Gold | Flange | |

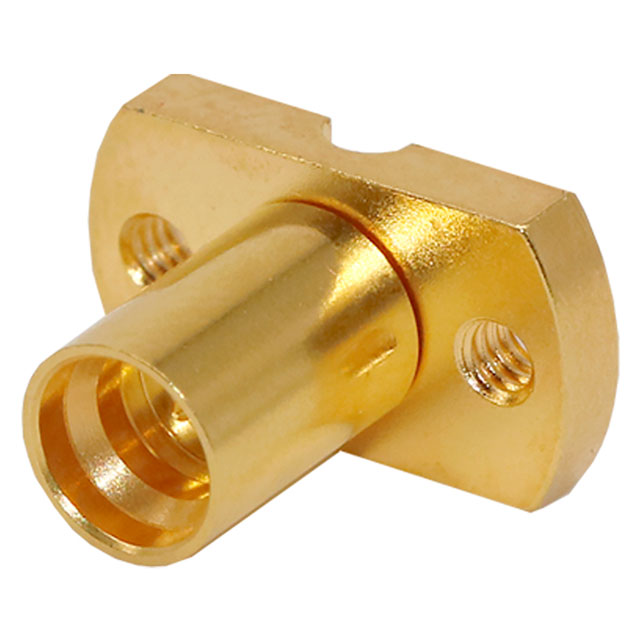

 Cinch Connectivity Solutions Johnson | Surface Mount | Gold | Compression | SMP | Jack Male Pin | Snap-On | 40 Gbps | 50 Ohm | Full Detent | Beryllium Copper | 1 | Polytetrafluoroethylene (PTFE) | Beryllium Copper Brass | 100 cycles | Gold | 335 V | -65 °C | 165 °C | Gold | Flange |
