2029037 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

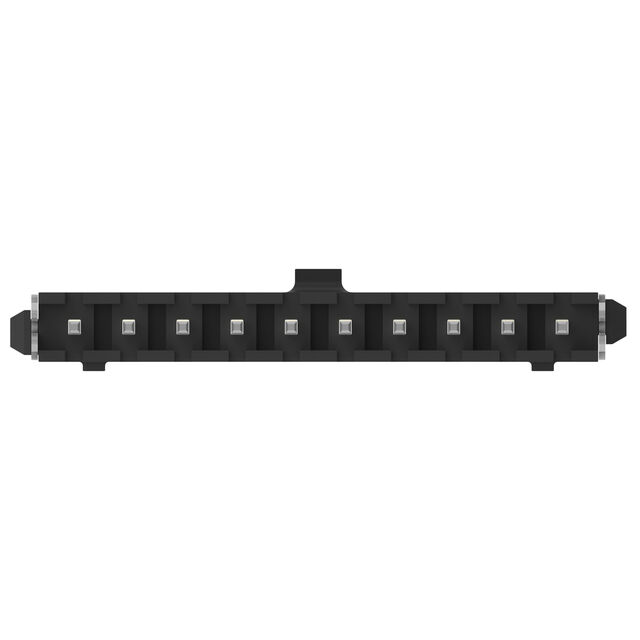

CONN HEADER VERT 10POS 3MM
| Part | Connector Type | Contact Finish - Post | Contact Type | Insulation Material | Insulation Color | Number of Positions Loaded | Style | Shrouding | Contact Material | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Mounting Type | Material Flammability Rating | Number of Positions | Contact Length - Post [x] | Contact Length - Post [x] | Fastening Type | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Header | Tin | Male Pin | Nylon Polyamide (PA) | Black | All | Board to Cable/Wire | Shrouded - 4 Wall | Brass | Solder | 30 Áin | 0.76 Ám | 1 | Through Hole | UL94 V-0 | 10 | 3.18 mm | 0.125 in | Locking Ramp | Gold | 2.54 µm | 100 µin | 0.118 in | 3 mm | 9.25 mm | 0.364 in | Square |
