D09P91 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

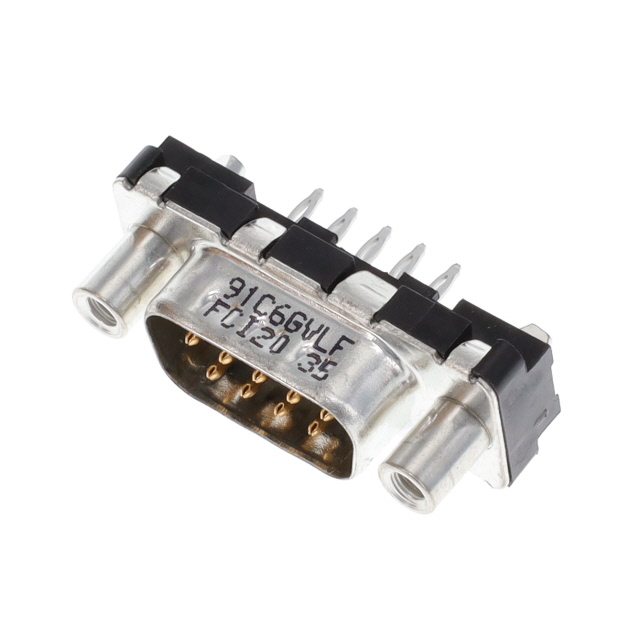

CONN D-SUB PLUG 9POS VERT PRESS
| Part | Flange Feature | Number of Positions | Termination | Contact Material | Color | Features | Contact Finish Thickness | Shell Material, Finish | Connector Type | Dielectric Material | Connector Style | Mounting Type | Contact Finish | Number of Rows | Voltage Rating | Contact Type | Current Rating (Amps) | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [custom] | Flange Feature [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Housing/Shell (M3) | 9 | Press-Fit | Phosphor Bronze | Black | Grounding Indents | Flash | Steel Tin-Nickel Plated | Male Pins Plug | Polybutylene Terephthalate (PBT) | D-Sub | Through Hole | Gold | 2 | 300 VDC | Signal | 5 A | UL94 V-0 | -55 °C | 125 °C | DE E | 1 | ||||
Amphenol ICC (FCI) | Female Screwlock (4-40) Mating Side | 9 | Press-Fit | Phosphor Bronze | Black | Grounding Indents | Flash | Steel Tin-Nickel Plated | Male Pins Plug | Polybutylene Terephthalate (PBT) | D-Sub | Through Hole | Gold | 2 | 300 VDC | Signal | 5 A | UL94 V-0 | -55 °C | 125 °C | DE E | 1 | ||||
Amphenol ICC (FCI) | Female Screwlock (M3) Mating Side | 9 | Press-Fit | Phosphor Bronze | Black | Board Lock Grounding Indents | Flash | Male Pins Plug | Polybutylene Terephthalate (PBT) | D-Sub | Through Hole | Gold | 2 | 300 VDC | Signal | 5 A | UL94 V-0 | -55 °C | 125 °C | DE E | 1 | |||||
Amphenol ICC (FCI) | Housing/Shell (4-40) | 9 | Press-Fit | Phosphor Bronze | Black | Grounding Indents | Flash | Steel Tin-Nickel Plated | Male Pins Plug | Polybutylene Terephthalate (PBT) | D-Sub | Through Hole | Gold | 2 | 300 VDC | Signal | 5 A | UL94 V-0 | -55 °C | 125 °C | DE E | 1 | ||||
Amphenol ICC (FCI) | Housing/Shell (Unthreaded) | 9 | Press-Fit | Phosphor Bronze | Black | Grounding Indents | Male Pins Plug | Polybutylene Terephthalate (PBT) | D-Sub | Through Hole | Gold | 2 | 300 VDC | Signal | 5 A | UL94 V-0 | -55 °C | 125 °C | DE E | 1 | 0.76 Ám | 30 Áin | ||||
 Amphenol ICC (FCI) | Female Screwlock (4-40) Mating Side | 9 | Press-Fit | Phosphor Bronze | Black | Board Lock Grounding Indents | Steel Tin-Nickel Plated | Male Pins Plug | Polybutylene Terephthalate (PBT) | D-Sub | Through Hole | Gold | 2 | 300 VDC | Signal | 5 A | UL94 V-0 | -55 °C | 125 °C | DE E | 1 | 0.76 Ám | 30 Áin | |||
Amphenol ICC (FCI) | Housing/Shell (M3) | 9 | Press-Fit | Phosphor Bronze | Black | Board Lock Grounding Indents | Flash | Male Pins Plug | Polybutylene Terephthalate (PBT) | D-Sub | Through Hole | Gold | 2 | 300 VDC | Signal | 5 A | UL94 V-0 | -55 °C | 125 °C | DE E | 1 | |||||
Amphenol ICC (FCI) | 9 | Press-Fit | Phosphor Bronze | Black | Grounding Indents | Male Pins Plug | Polybutylene Terephthalate (PBT) | D-Sub | Through Hole | Gold | 2 | 300 VDC | Signal | 5 A | UL94 V-0 | -55 °C | 125 °C | DE E | 1 | 0.76 Ám | 30 Áin | Board Side (M3) | Mating Side Female Screwlock (M3) | |||
Amphenol ICC (FCI) | Housing/Shell (4-40) | 9 | Press-Fit | Phosphor Bronze | Black | Grounding Indents | Flash | Male Pins Plug | Polybutylene Terephthalate (PBT) | D-Sub | Through Hole | Gold | 2 | 300 VDC | Signal | 5 A | UL94 V-0 | -55 °C | 125 °C | DE E | 1 | |||||
Amphenol ICC (FCI) | Housing/Shell (4-40) | 9 | Press-Fit | Phosphor Bronze | Black | Board Lock Grounding Indents | Flash | Male Pins Plug | Polybutylene Terephthalate (PBT) | D-Sub | Through Hole | Gold | 2 | 300 VDC | Signal | 5 A | UL94 V-0 | -55 °C | 125 °C | DE E | 1 |
