9931 Series
Manufacturer: Belden Inc.
Beta
⌘K

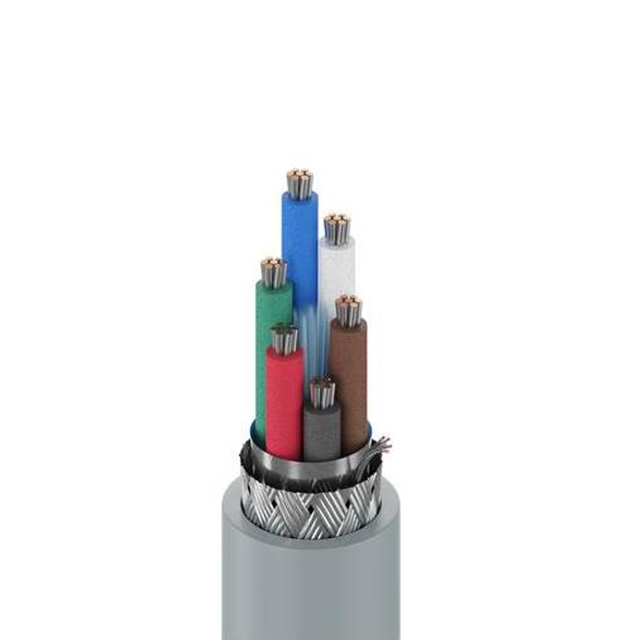

CABLE 6COND 24AWG CHRM SHD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Ratings | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Jacket Color | Cable Type | Features | Shield Type | Conductor Insulation | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 0.035 in | 0.889 mm | 24 AWG | 80 °C | -30 ░C | Copper Tinned | UL Style 2919 | 6 | 0.254 in | 6.45 mm | Poly-Vinyl Chloride (PVC) | Chrome | Multi-Conductor | Drain Wire | Braid Foil | Foam Polyethylene (FPE) | Computer | 7 | 32 AWG | ||
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 0.035 in | 0.889 mm | 24 AWG | 80 °C | -30 ░C | Copper Tinned | UL Style 2919 | 6 | 0.254 in | 6.45 mm | Poly-Vinyl Chloride (PVC) | Chrome | Multi-Conductor | Drain Wire | Braid Foil | Foam Polyethylene (FPE) | Computer | 7 | 32 AWG | 152.4 m | 500 ft |
