NVG800A75L4DSB2 Series

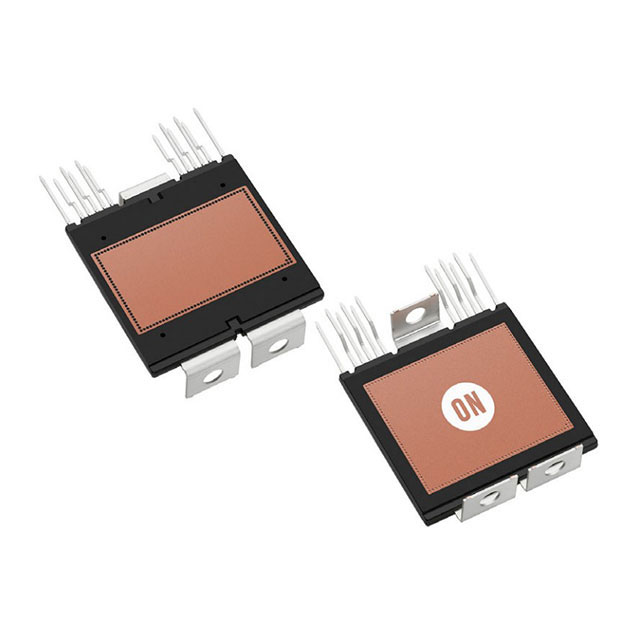

VE-Trac Dual Gen II - Dual Side Cooling Half-Bridge Power Module for Automotive, 750V, 800A, Straight Power Tabs

Catalog

VE-Trac Dual Gen II - Dual Side Cooling Half-Bridge Power Module for Automotive, 750V, 800A, Straight Power Tabs

Part	Package / Case	Current	Voltage	Voltage - Isolation	Type	Mounting Type	Configuration	Input	Supplier Device Package	Package / Case	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max) [Max]	Package / Case
ON Semiconductor NVG800A75L4DSC-Z008	Module	800 A	750 V	4200 Vrms	IGBT	Chassis Mount	Half Bridge
ON Semiconductor NVG800A75L4DSC2	15-PowerDIP Module					Through Hole	Half Bridge Inverter	Standard	AHPM15-CEA	62 mm	2.441 in	750 V	1 mA	-40 C	175 °C	43000 pF	550 A
ON Semiconductor NVG800A75L4DSB
ON Semiconductor NVG800A75L4DSB2	15-PowerDIP Module					Through Hole	Half Bridge Inverter	Standard	AHPM15-CEC			750 V	1 mA	-40 C	175 °C	43000 pF	800 A	2.827 in 71.8 mm

Catalog

VE-Trac Dual Gen II - Dual Side Cooling Half-Bridge Power Module for Automotive, 750V, 800A, Straight Power Tabs

Key Features

• Half Bridge Dual-Side Cooling

• Ultra-Low Stray Inductance

• Tj_max = 175°C continuous operation

• Low VCESAT and Switching losses

• AQG324 Qualified FS4 750V Narrow Mesa IGBT

• Smart On Chip Current and Temperature Sensor

• Wirebond-Free Structure

Description

The NVG800A75L4DSB is part of a family of power modules with dual side cooling and compact footprints for Hybrid (HEV) and Electric Vehicle (EV) traction inverter application. The module consists of two Field Stop 4 (FS4) Narrow Mesa IGBTs in a half-bridge configuration. The chipset utilizes the new narrow mesa IGBT technology in providing high current density and robust short circuit protection with higher blocking voltage to deliver outstanding performance in EV traction applications. A dual-side liquid cooling heatsink reference design along with a complete inverter kit (NVG800A75L4DSC-EVK) is available to enable easier design in.
