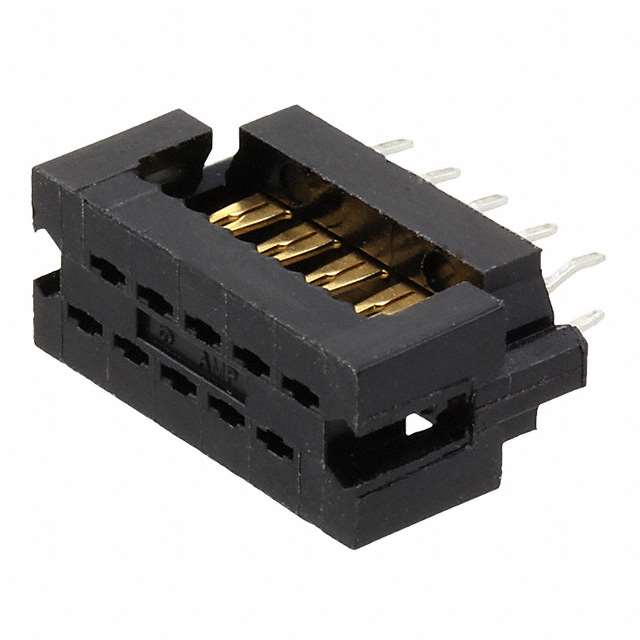

111382 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

020 DIP PLUG 100CL TIN KK ROHS COMPLIANT: YES

Part	Number of Positions Loaded	Color	Features	Row Spacing	Row Spacing	Contact Finish	Number of Rows [custom]	Wire Gauge [Min] [custom]	Wire Gauge [custom]	Wire Gauge [Max] [custom]	Wire Gauge [custom]	Mounting Type	Board-Side Pitch	Board-Side Pitch	Number of Positions	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Cable Pitch	Cable Pitch	Connector Type	Number of Positions [custom]
TE Connectivity AMP Connectors 1-111382-7	All	Black	Feed Through	2.54 mm	0.1 "	Tin-Lead	2	26 AWG	Solid Stranded	30 AWG	28 AWG	Press-Fit Through Hole	2.54 mm	0.1 "	20	IDC	2.54 µm	100 µin	1.27 mm	0.05 in	DIP Header Ribbon Cable
TE Connectivity AMP Connectors 1-111382-0	All	Black	Feed Through	2.54 mm	0.1 "	Tin-Lead	2	26 AWG	Solid Stranded	30 AWG	28 AWG	Press-Fit Through Hole	2.54 mm	0.1 "	50	IDC	2.54 µm	100 µin	1.27 mm	0.05 in	DIP Header Ribbon Cable
TE Connectivity AMP Connectors 111382-8	All	Black	Feed Through	2.54 mm	0.1 "	Tin-Lead	2	26 AWG	Solid Stranded	30 AWG	28 AWG	Press-Fit Through Hole	2.54 mm	0.1 "		IDC	2.54 µm	100 µin	1.27 mm	0.05 in	DIP Header Ribbon Cable	34
TE Connectivity AMP Connectors 1-111382-4	All	Black	Feed Through	2.54 mm	0.1 "	Tin-Lead	2	26 AWG	Solid Stranded	30 AWG	28 AWG	Press-Fit Through Hole	2.54 mm	0.1 "	10	IDC	2.54 µm	100 µin	1.27 mm	0.05 in	DIP Header Ribbon Cable
TE Connectivity AMP Connectors 111382-3	All	Black	Feed Through	2.54 mm	0.1 "	Tin-Lead	2	26 AWG	Solid Stranded	30 AWG	28 AWG	Press-Fit Through Hole	2.54 mm	0.1 "	16	IDC	2.54 µm	100 µin	1.27 mm	0.05 in	DIP Header Ribbon Cable
TE Connectivity AMP Connectors 111382-1	All	Black	Feed Through	2.54 mm	0.1 "	Tin-Lead	2	26 AWG	Solid Stranded	30 AWG	28 AWG	Press-Fit Through Hole	2.54 mm	0.1 "	10	IDC	2.54 µm	100 µin	1.27 mm	0.05 in	DIP Header Ribbon Cable
