9002-1023 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

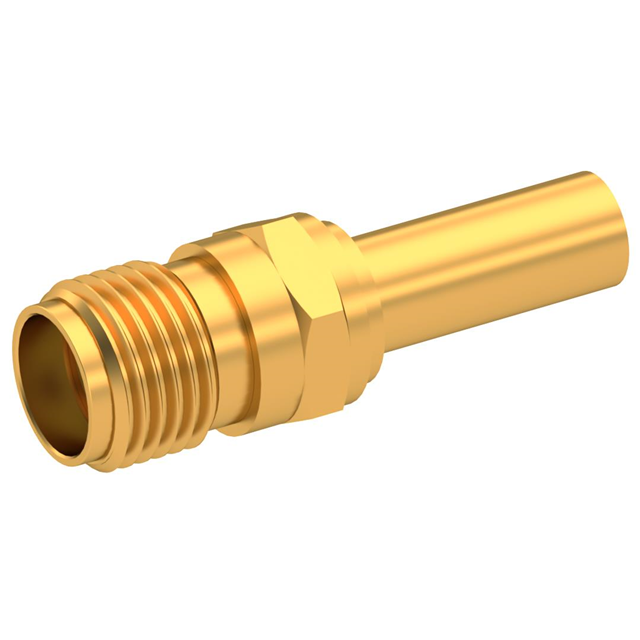

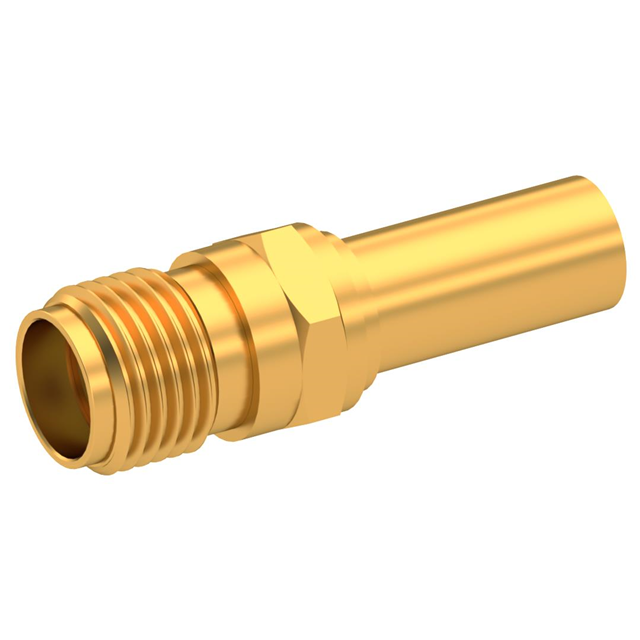

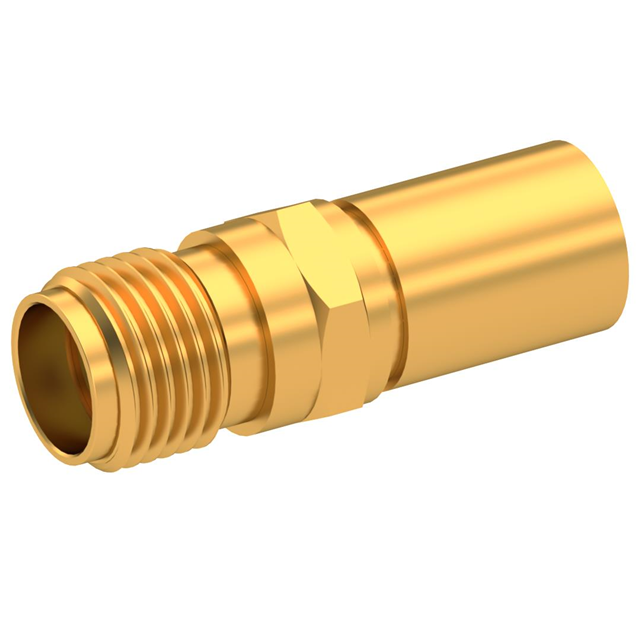

SMA / STRAIGHT JACK FEMALE CRIMP
| Part | Dielectric Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Mating Cycles | Body Material | Cable Group | Cable Group | Fastening Type | Contact Termination | Center Contact Material | Frequency - Max [Max] | Connector Type | Shield Termination | Housing Color | Mounting Type | Connector Style | Impedance | Number of Ports | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Gold | 500 | Stainless Steel | 196 | RG-178 | Threaded | Crimp | Beryllium Copper | 12.4 GHz | Female Socket Jack | Crimp | Gold | Free Hanging (In-Line) | SMA | 50 Ohms | 1 | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Gold | 500 | Stainless Steel | 141 | RG-58 | Threaded | Crimp | Beryllium Copper | 18 GHz | Female Socket Jack | Crimp | Gold | Free Hanging (In-Line) | SMA | 50 Ohms | 1 | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Gold | 500 | Stainless Steel | RG-316 Double Braid | Threaded | Crimp | Beryllium Copper | 12.4 GHz | Female Socket Jack | Crimp | Gold | Free Hanging (In-Line) | SMA | 50 Ohms | 1 | 250 V | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Gold | 500 | Stainless Steel | 188 316 RG-174 | Threaded | Crimp | Beryllium Copper | 12.4 GHz | Female Socket Jack | Crimp | Gold | Free Hanging (In-Line) | SMA | 50 Ohms | 1 | 250 V |
