BLF6G38 Series

Catalog

RF MOSFET LDMOS 28V SOT502B

Part	Current - Test	Current Rating (Amps)	Frequency [Max]	Frequency [Min]	Voltage - Test	Gain	Package / Case	Supplier Device Package	Mounting Type	Voltage - Rated	Power - Output
Ampleon USA Inc. BLF6G38LS-50,112	450 mA	16.5 A	3.6 GHz	3.4 GHz	28 V	14 dBi	SOT-502B	SOT502B	Chassis Mount	65 V	9 W
Ampleon USA Inc. BLF6G38-100,112	1.05 A	34 A	3.6 GHz	3.4 GHz	28 V	13 dBi	SOT-502A	SOT502A	Chassis Mount	65 V	18.5 W

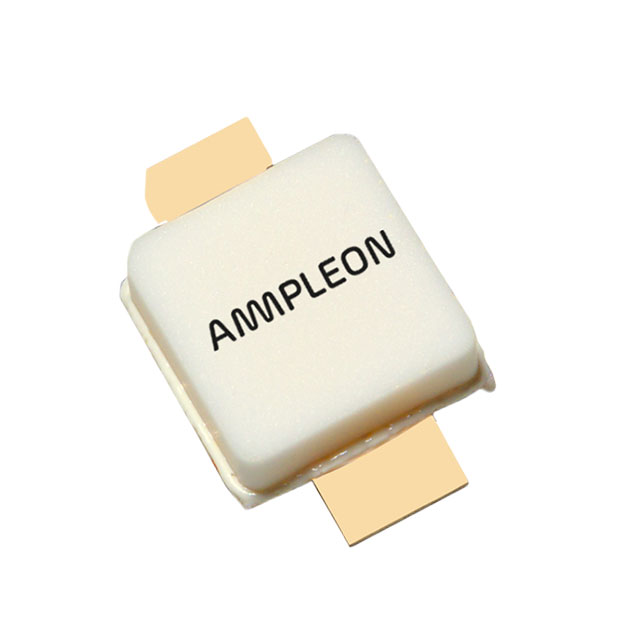

Ampleon USA Inc. BLF6G38-10,118	130 mA	3.1 A	3.6 GHz	3.4 GHz	28 V	14 dBi	SOT-975B	CDFM2	Chassis Mount	65 V	2 W
Ampleon USA Inc. BLF6G38-50,112	450 mA	16.5 A	3.6 GHz	3.4 GHz	28 V	14 dBi	SOT-502A	SOT502A	Chassis Mount	65 V	9 W

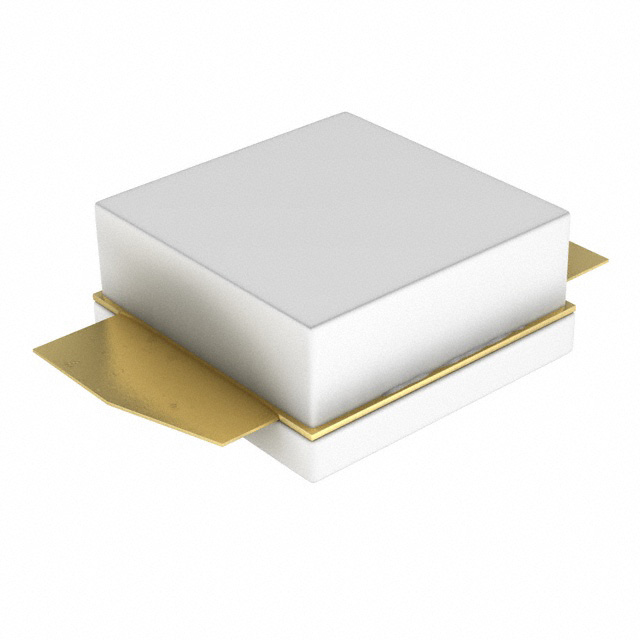

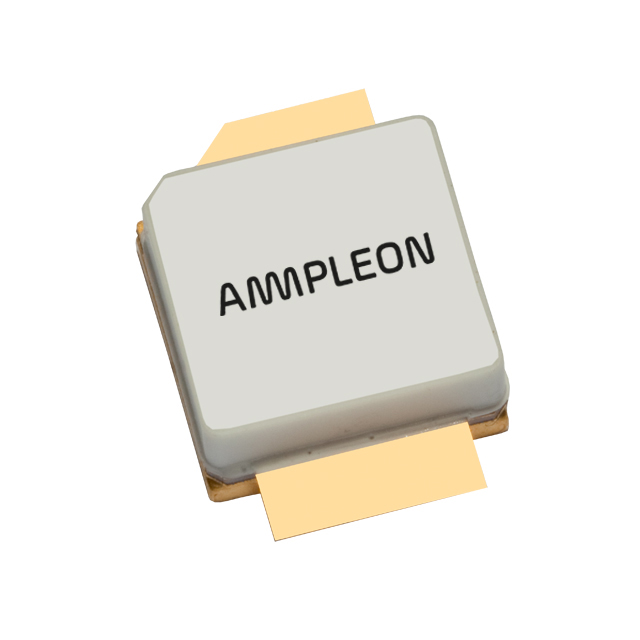

Ampleon USA Inc. BLF6G38S-25,112	225 mA	8.2 A	3.6 GHz	3.4 GHz	28 V	15 dB	SOT-608B	CDFM2	Chassis Mount	65 V	4.5 W
Ampleon USA Inc. BLF6G38-10G,118	130 mA	3.1 A	3.6 GHz	3.4 GHz	28 V	14 dBi	SOT-975C	CDFM2	Surface Mount	65 V	2 W
Ampleon USA Inc. BLF6G38-10,112	130 mA	3.1 A	3.6 GHz	3.4 GHz	28 V	14 dBi	SOT-975B	CDFM2	Chassis Mount	65 V	2 W
Ampleon USA Inc. BLF6G38-50,135	450 mA	16.5 A	3.6 GHz	3.4 GHz	28 V	14 dBi	SOT-502A	SOT502A	Chassis Mount	65 V	9 W
Ampleon USA Inc. BLF6G38LS-100,112	1.05 A	34 A	3.6 GHz	3.4 GHz	28 V	13 dBi	SOT-502B	SOT502B	Chassis Mount	65 V	18.5 W
Ampleon USA Inc. BLF6G38S-25,118	225 mA	8.2 A	3.6 GHz	3.4 GHz	28 V	15 dB	SOT-608B	CDFM2		65 V	4.5 W
