315-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN RCPT 17POS 0.1 GOLD PCB

...

Part	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Contact Type	Material Flammability Rating	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Connector Type	Contact Finish - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Mounting Type	Termination	Voltage Rating	Voltage Rating	Insulation Color	Contact Length - Post	Number of Positions	Number of Positions [custom]	Insulation Height [z]	Insulation Height [z]
Mill-Max Manufacturing Corp. 315-43-117-61-003000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Female Socket	UL94 V-0	3 A	1.8 mm	0.071 in	0.76 Ám	30 Áin	1	2.41 mm	0.095 in	Tin	Receptacle	Gold	Push-Pull	-55 C	125 °C	0.1 "	2.54 mm	All	Through Hole	Solder	100 V	150 VDC	Black
Mill-Max Manufacturing Corp. 315-43-127-41-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Female Socket	UL94 V-0	3 A			0.76 Ám	30 Áin	1		2.75 mm	Tin	Receptacle	Gold	Push-Pull	-55 C	125 °C	0.1 "	2.54 mm	All	Through Hole	Solder	100 V	150 VDC	Black	0.108 in	27
Mill-Max Manufacturing Corp. 315-43-122-41-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Female Socket	UL94 V-0	3 A			0.76 Ám	30 Áin	1		2.75 mm	Tin	Receptacle	Gold	Push-Pull	-55 C	125 °C	0.1 "	2.54 mm	All	Through Hole	Solder	100 V	150 VDC	Black	0.108 in	22
Mill-Max Manufacturing Corp. 315-43-132-61-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Female Socket	UL94 V-0	3 A			0.76 Ám	30 Áin	1		2.75 mm	Tin	Receptacle	Gold	Push-Pull	-55 C	125 °C	0.1 "	2.54 mm	All	Through Hole	Solder	100 V	150 VDC	Black	0.108 in
Mill-Max Manufacturing Corp. 315-43-131-41-004000	Beryllium Copper	200 µin	5.08 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Female Socket	UL94 V-0	3 A			0.76 Ám	30 Áin	1		2.08 mm	Tin	Socket	Gold	Push-Pull	-55 C	125 °C	0.1 "	2.54 mm	All	Through Hole	Solder	100 V	150 VDC	Black	0.082 in		31	1.27 mm	0.05 in
Mill-Max Manufacturing Corp. 315-43-156-61-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Female Socket	UL94 V-0	3 A			0.76 Ám	30 Áin	1		2.75 mm	Tin	Receptacle	Gold	Push-Pull	-55 C	125 °C	0.1 "	2.54 mm	All	Through Hole	Solder	100 V	150 VDC	Black	0.108 in	56
Mill-Max Manufacturing Corp. 315-43-132-41-003000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Female Socket	UL94 V-0	3 A	1.8 mm	0.071 in	0.76 Ám	30 Áin	1	2.41 mm	0.095 in	Tin	Receptacle	Gold	Push-Pull	-55 C	125 °C	0.1 "	2.54 mm	All	Through Hole	Solder	100 V	150 VDC	Black
Mill-Max Manufacturing Corp. 315-43-120-61-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Female Socket	UL94 V-0	3 A			0.76 Ám	30 Áin	1		2.75 mm	Tin	Receptacle	Gold	Push-Pull	-55 C	125 °C	0.1 "	2.54 mm	All	Through Hole	Solder	100 V	150 VDC	Black	0.108 in	20
Mill-Max Manufacturing Corp. 315-43-145-61-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Female Socket	UL94 V-0	3 A			0.76 Ám	30 Áin	1		2.75 mm	Tin	Receptacle	Gold	Push-Pull	-55 C	125 °C	0.1 "	2.54 mm	All	Through Hole	Solder	100 V	150 VDC	Black	0.108 in	45

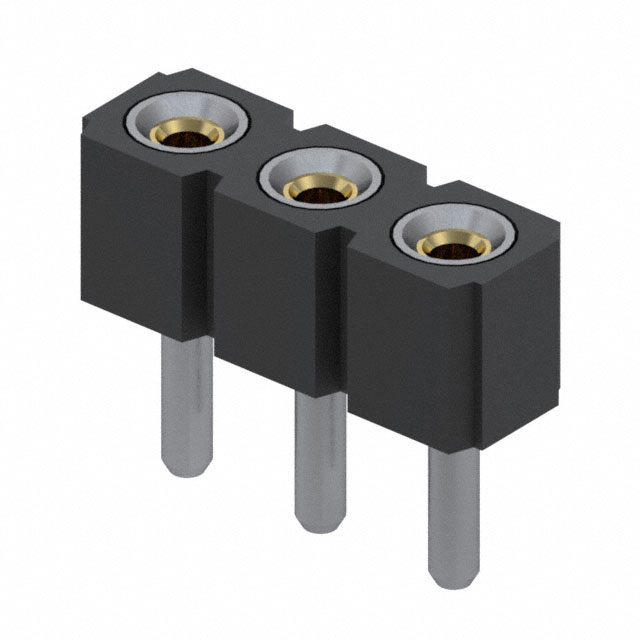

Mill-Max Manufacturing Corp. 315-43-103-41-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Female Socket	UL94 V-0	3 A			0.76 Ám	30 Áin	1		2.75 mm	Tin	Receptacle	Gold	Push-Pull	-55 C	125 °C	0.1 "	2.54 mm	All	Through Hole	Solder	100 V	150 VDC	Black	0.108 in
