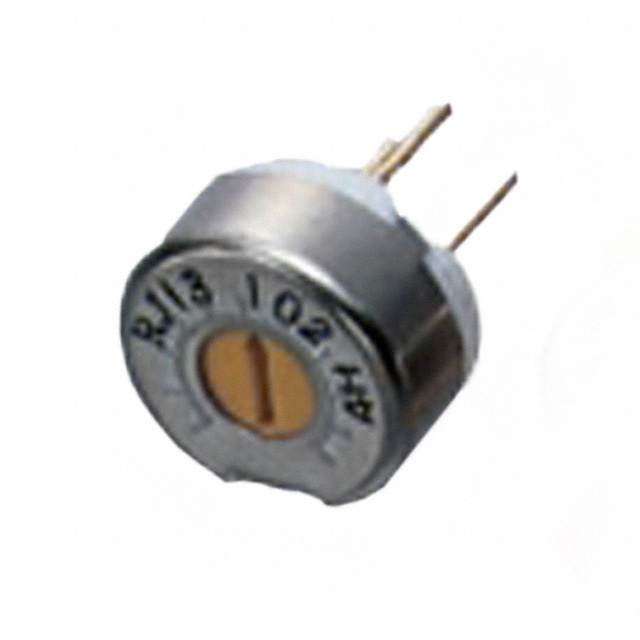

RJ13P Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 50 OHM 0.75W PC PIN TOP

Part	Tolerance	Termination Style	Size / Dimension	Size / Dimension [diameter]	Size / Dimension [diameter]	Resistive Material	Mounting Type	Power (Watts)	Power (Watts)	Resistance	Temperature Coefficient	Number of Turns	Adjustment Type
Nidec Components Corporation RJ-13P500	10 %	PC Pins	Round	12.4 mm	0.488 in	Cermet	Through Hole	3/4W	0.75 W	50 Ohms	100 ppm/°C	1	Top Adjustment
Nidec Components Corporation RJ-13PR202	10 %	PC Pins	Round	12.4 mm	0.488 in	Cermet	Through Hole	3/4W	0.75 W	2 kOhms	100 ppm/°C	1	Top Adjustment
Nidec Components Corporation RJ-13P105	10 %	PC Pins	Round	12.4 mm	0.488 in	Cermet	Through Hole	3/4W	0.75 W	1 MOhms	100 ppm/°C	1	Top Adjustment
Nidec Components Corporation RJ-13P104	10 %	PC Pins	Round	12.4 mm	0.488 in	Cermet	Through Hole	3/4W	0.75 W	100 kOhms	100 ppm/°C	1	Top Adjustment
Nidec Components Corporation RJ-13PR504	10 %	PC Pins	Round	12.4 mm	0.488 in	Cermet	Through Hole	3/4W	0.75 W		100 ppm/°C	1	Top Adjustment
Nidec Components Corporation RJ-13P204	10 %	PC Pins	Round	12.4 mm	0.488 in	Cermet	Through Hole	3/4W	0.75 W	200000 Ohms	100 ppm/°C	1	Top Adjustment
Nidec Components Corporation RJ-13PR201	10 %	PC Pins	Round	12.4 mm	0.488 in	Cermet	Through Hole	3/4W	0.75 W	200 Ohms	100 ppm/°C	1	Top Adjustment
Nidec Components Corporation RJ-13PR503	10 %	PC Pins	Round	12.4 mm	0.488 in	Cermet	Through Hole	3/4W	0.75 W	50000 Ohms	100 ppm/°C	1	Top Adjustment
Nidec Components Corporation RJ-13PR253	10 %	PC Pins	Round	12.4 mm	0.488 in	Cermet	Through Hole	3/4W	0.75 W	25 kOhms	100 ppm/°C	1	Top Adjustment
Nidec Components Corporation RJ-13P101	10 %	PC Pins	Round	12.4 mm	0.488 in	Cermet	Through Hole	3/4W	0.75 W	100 Ohms	100 ppm/°C	1	Top Adjustment
