SLP8A2 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K

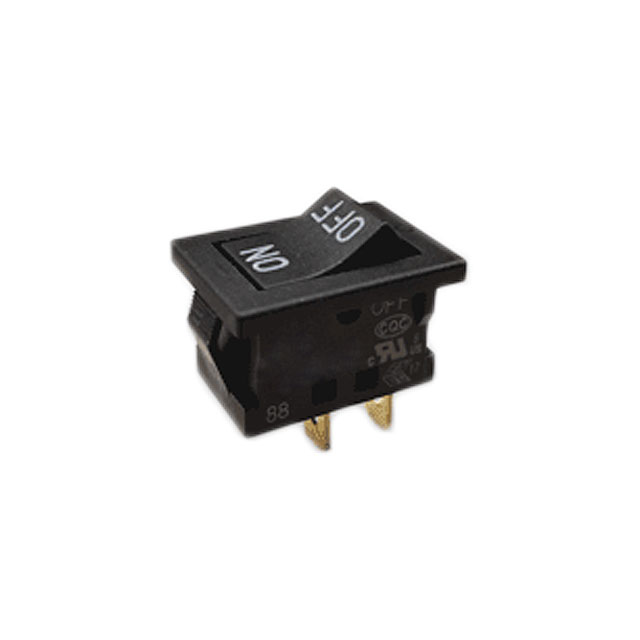

SWITCH ROCKER SPST 8A 127V
| Part | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Actuator Type | Actuator Marking | Approval Agency | Ingress Protection | Switch Function | Electrical Life | Color - Actuator/Cap | Termination Style | Voltage Rating - AC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions | Panel Cutout Dimensions [x] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | SPST | -10 °C | 65 °C | Panel Mount Snap-In | Concave (Curved) | Dot | CQC cULus ENEC | Dust Proof | On-Off | 50000 Cycles | Black | Quick Connect - 0.187" (4.7mm) | 127 V | 12.9 mm | Rectangular | 19.2 mm | 8 A |
Nidec Components Corporation | SPST | -10 °C | 65 °C | Panel Mount Snap-In | Concave (Curved) | ON OFF Vertical | CQC cULus ENEC | Dust Proof | On-Off | 50000 Cycles | Black | Quick Connect - 0.187" (4.7mm) | 127 V | 12.9 mm | Rectangular | 19.2 mm | 8 A |
Nidec Components Corporation | SPST | -10 °C | 65 °C | Panel Mount Snap-In | Concave (Curved) | O I | CQC cULus ENEC | Dust Proof | On-Off | 50000 Cycles | Black | Quick Connect - 0.187" (4.7mm) | 127 V | 12.9 mm | Rectangular | 19.2 mm | 8 A |
