ARG Series

Manufacturer: Ohmite

Catalog

WIREWOUND RESISTORS - CHASSIS MOUNT METAL CLAD 400W 25 OHM 5%

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Lead Style	Power (Watts)	Coating, Housing Type	Resistance	Temperature Coefficient	Tolerance	Mounting Feature	Composition
Ohmite ARG400C 25R J	1.102 in	28 mm	250 °C	Rectangular Wire Leads	260 mm	10.236 in	36.5 mm	1.437 in	Wire Leads	500 W	Aluminum	25 Ohms	150 ppm/°C	5 %	Screw Holes	Wirewound

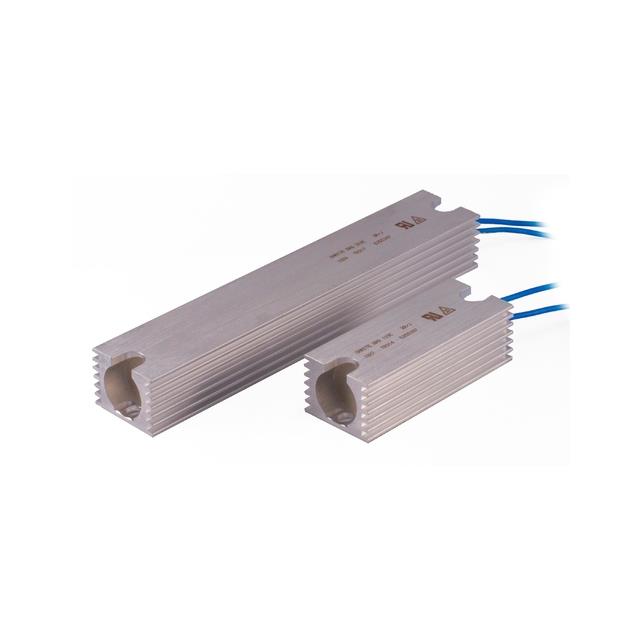

Ohmite ARG240C 16R J	1.102 in	28 mm	250 °C	Rectangular Wire Leads	155 mm	6.102 in	36.5 mm	1.437 in	Wire Leads	300 W	Aluminum	16 Ohms	150 ppm/°C	5 %	Flanges	Wirewound
Ohmite ARG120C 2R J	1.102 in	28 mm	250 °C	Rectangular Wire Leads	90 mm	3.543 in	36.5 mm	1.437 in	Wire Leads	150 W	Aluminum	2 Ohms	150 ppm/°C	5 %	Screw Holes	Wirewound
Ohmite ARG240C 16R J	1.102 in	28 mm	250 °C	Rectangular Wire Leads	155 mm	6.102 in	36.5 mm	1.437 in	Wire Leads	300 W	Aluminum	16 Ohms	150 ppm/°C	5 %	Screw Holes	Wirewound
Ohmite ARG120C 5R J	1.102 in	28 mm	250 °C	Rectangular Wire Leads	90 mm	3.543 in	36.5 mm	1.437 in	Wire Leads	150 W	Aluminum	5 Ohms	150 ppm/°C	5 %	Screw Holes	Wirewound
Ohmite ARG120C 5R J	1.102 in	28 mm	250 °C	Rectangular Wire Leads	90 mm	3.543 in	36.5 mm	1.437 in	Wire Leads	150 W	Aluminum	5 Ohms	150 ppm/°C	5 %	Flanges	Wirewound
