LNA-30 Series

Catalog

IC RF AMP VSAT 2GHZ-20GHZ MODULE

Part	Supplier Device Package	P1dB	Current - Supply	Test Frequency [Min]	Test Frequency [Max]	Package / Case	Frequency [Max]	Frequency [Min]	Gain	Noise Figure	RF Type	Voltage - Supply	Mounting Type
L3 Narda-MITEQ LNA-30-02002000-42-20P	Module	20 dBm	400 mA	2 GHz	20 GHz	Module SMA Connectors	20 GHz	2 GHz	30 dBi	4.2 dB	VSAT	15 VDC
L3 Narda-MITEQ LNA-30-18002650-20-10P	Module	10 dBm	250 mA	18 GHz	26.5 GHz	Module SMA Connectors	26.5 GHz	18 GHz	30 dBi	2 dB	VSAT	15 VDC

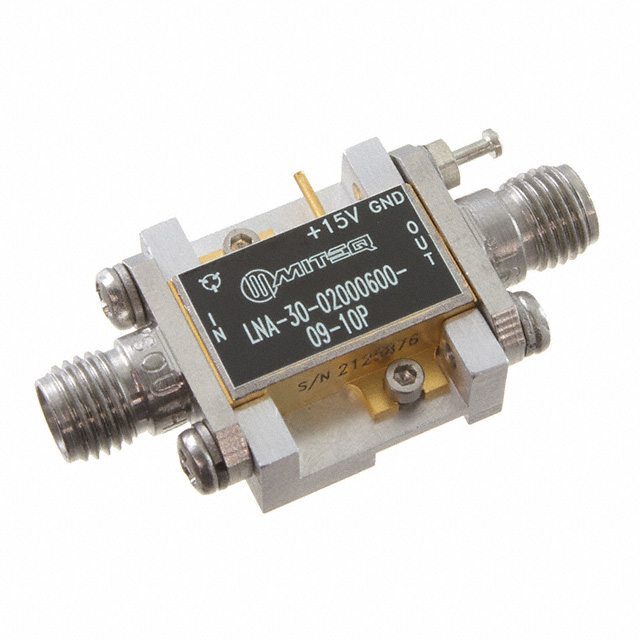

L3 Narda-MITEQ LNA-30-02000600-09-10P	Module	10 dBm	200 mA	2 GHz	6 GHz	Module SMA Connectors	6 GHz	2 GHz	30 dBi	0.9 dB	VSAT	15 VDC	Connector Mount
L3 Narda-MITEQ LNA-30-02000400-05-10P	Module	10 dBm	200 mA	2 GHz	4 GHz	Module SMA Connectors	4 GHz	2 GHz	30 dBi	0.5 dB	VSAT	15 VDC
L3 Narda-MITEQ LNA-30-00101800-55-25P	Module	25 dBm	600 mA	100 MHz	18 GHz	Module SMA Connectors	18 GHz	100 MHz	30 dBi	5.5 dB	VSAT	15 VDC
L3 Narda-MITEQ LNA-30-00102600-40-15P	Module	15 dBm	400 mA	100 MHz	26 GHz	Module SMA Connectors	26 GHz	100 MHz	30 dBi	4 dB	VSAT	15 VDC
L3 Narda-MITEQ LNA-30-12001800-20-15P	Module	15 dBm	275 mA	12 GHz	18 GHz	Module SMA Connectors	18 GHz	12 GHz	30 dBi	2 dB	VSAT	15 VDC
L3 Narda-MITEQ LNA-30-00100800-20-15P	Module	15 dBm	300 mA	100 MHz	8 GHz	Module SMA Connectors	8 GHz	100 MHz	30 dBi	2 dB	VSAT	15 VDC
L3 Narda-MITEQ LNA-30-02001800-40-20P	Module	20 dBm	400 mA	2 GHz	18 GHz	Module SMA Connectors	18 GHz	2 GHz	30 dBi	4 dB	VSAT	15 VDC
L3 Narda-MITEQ LNA-30-08001200-35-25P	Module	25 dBm		8 GHz	12 GHz	Module SMA Connectors	12 GHz	8 GHz	30 dBi	3.5 dB	VSAT	15 VDC
