A6D Series
DIP Switches / SIP Switches 8 Pins Sealed Raised Actuator
Manufacturer: Omron Electronics Inc-EMC Div
Catalog
DIP Switches / SIP Switches 8 Pins Sealed Raised Actuator
Beta
⌘K
DIP Switches / SIP Switches 8 Pins Sealed Raised Actuator
DIP Switches / SIP Switches 8 Pins Sealed Raised Actuator
DIP Switches / SIP Switches 8 Pins Sealed Raised Actuator
| Part | Electrical Life | Length | Length | Voltage Rating | Actuator Type | Number of Positions | Pitch | Pitch | Actuator Level | Height Above Board [z] | Height Above Board [z] | Mounting Type | Circuit | Features | Contact Finish | Washable | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Current Rating (Amps) | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

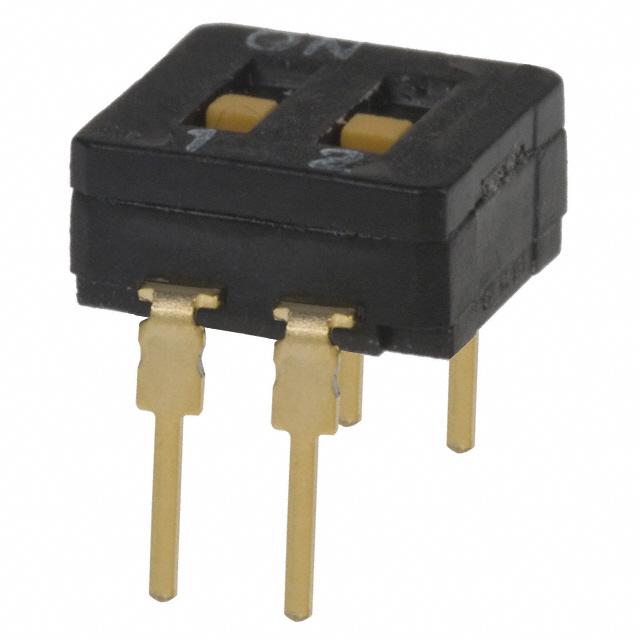

 Omron Electronics Inc-EMC Div | 2000 Steps | 0.279 in | 7.1 mm | 30 VDC | Slide (Standard) | 2 | 2.54 mm | 0.1 " | Flush Recessed | 0.173 in | 4.4 mm | Through Hole | SPST | IP64 - Dust Tight Water Resistant | Gold | -20 ░C | 70 °C | PC Pin | 30 mA | |||
 Omron Electronics Inc-EMC Div | 2000 Steps | 0.379 in | 9.63 mm | 30 VDC | Slide (Standard) | 2.54 mm | 0.1 " | Raised | 0.213 in | 5.4 mm | Through Hole | SPST | IP64 - Dust Tight Water Resistant | Gold | -20 ░C | 70 °C | PC Pin | 30 mA | ||||

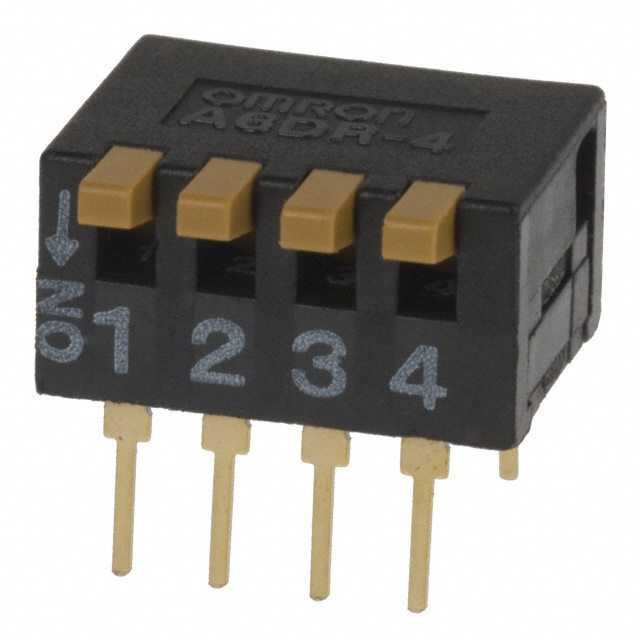

 Omron Electronics Inc-EMC Div | 2000 Steps | 30 VDC | Piano | 4 | 2.54 mm | 0.1 " | Raised | 0.292 in | 7.41 mm | Right Angle Through Hole | SPST | IP64 - Dust Tight Water Resistant | Gold | -20 ░C | 70 °C | PC Pin | 30 mA | 12.17 mm | 0.479 in | |||
Omron Electronics Inc-EMC Div | 2000 Steps | 1.079 " | 27.41 mm | 30 VDC | Slide (Standard) | 10 | 2.54 mm | 0.1 " | Flush Recessed | 0.173 in | 4.4 mm | Through Hole | SPST | IP64 - Dust Tight Water Resistant | Gold | -20 ░C | 70 °C | PC Pin | 30 mA | |||

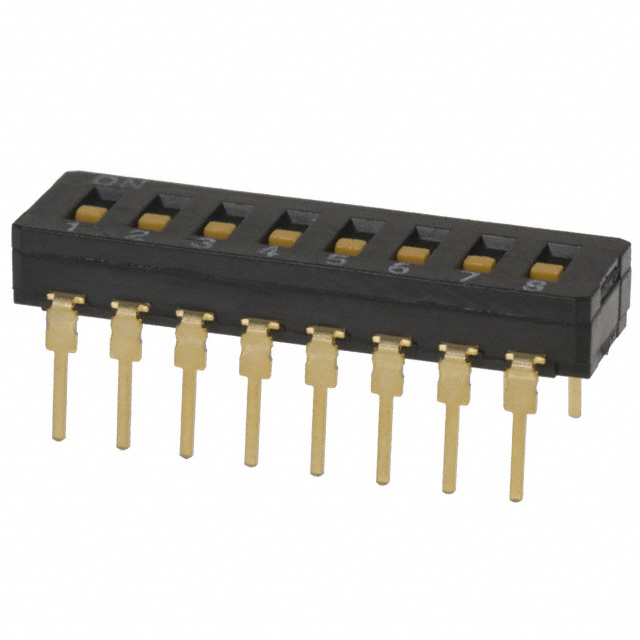

 Omron Electronics Inc-EMC Div | 2000 Steps | 0.879 in | 22.33 mm | 30 VDC | Slide (Standard) | 8 | 2.54 mm | 0.1 " | Flush Recessed | 0.173 in | 4.4 mm | Through Hole | SPST | IP64 - Dust Tight Water Resistant | Gold | -20 ░C | 70 °C | PC Pin | 30 mA | |||

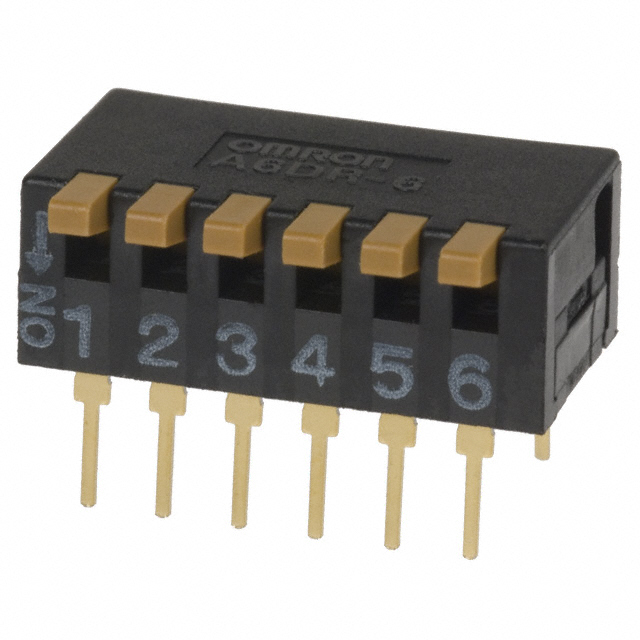

 Omron Electronics Inc-EMC Div | 2000 Steps | 30 VDC | Piano | 6 | 2.54 mm | 0.1 " | Raised | 0.292 in | 7.41 mm | Right Angle Through Hole | SPST | IP64 - Dust Tight Water Resistant | Gold | -20 ░C | 70 °C | PC Pin | 30 mA | 17.25 mm | 0.679 in | |||

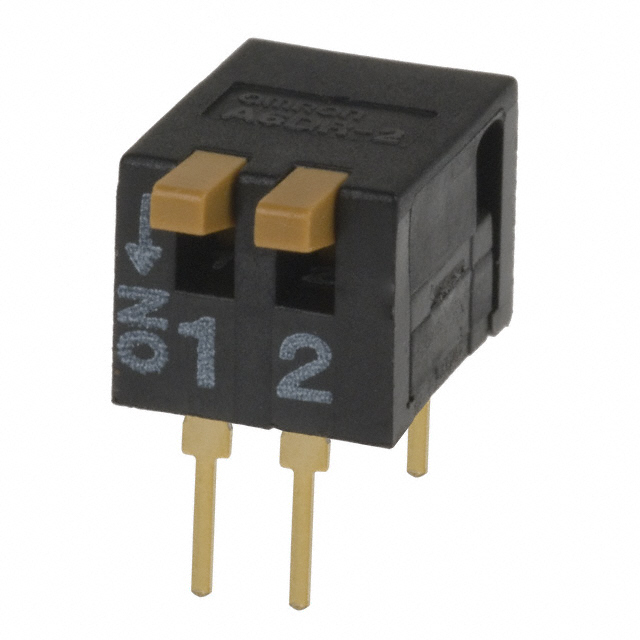

 Omron Electronics Inc-EMC Div | 2000 Steps | 0.279 in | 7.1 mm | 30 VDC | Piano | 2 | 2.54 mm | 0.1 " | Raised | 0.292 in | 7.41 mm | Right Angle Through Hole | SPST | IP64 - Dust Tight Water Resistant | Gold | -20 ░C | 70 °C | PC Pin | 30 mA | |||

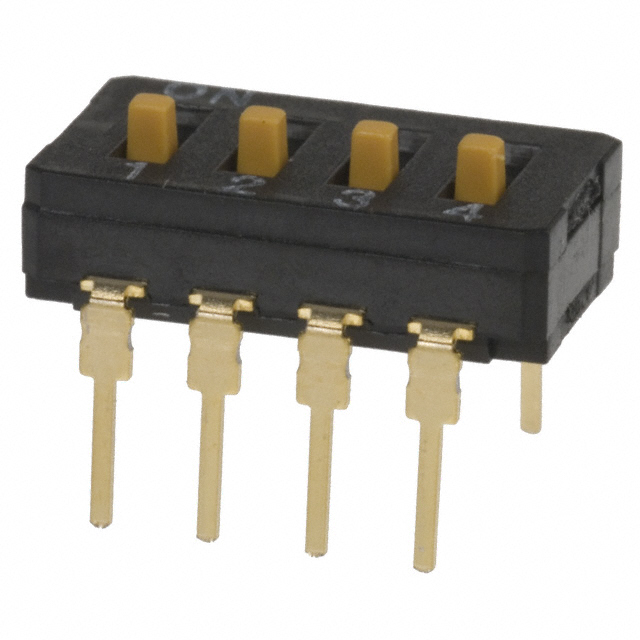

 Omron Electronics Inc-EMC Div | 2000 Steps | 30 VDC | Slide (Standard) | 4 | 2.54 mm | 0.1 " | Raised | 0.213 in | 5.4 mm | Through Hole | SPST | IP64 - Dust Tight Water Resistant | Gold | -20 ░C | 70 °C | PC Pin | 30 mA | 12.17 mm | 0.479 in | |||
Omron Electronics Inc-EMC Div | 2000 Steps | 30 VDC | Slide (Standard) | 7 | 2.54 mm | 0.1 " | Raised | 0.213 in | 5.4 mm | Through Hole | SPST | IP64 - Dust Tight Water Resistant | Gold | -20 ░C | 70 °C | PC Pin | 30 mA | 19.79 mm | 0.779 in | |||
 Omron Electronics Inc-EMC Div | 2000 Steps | 30 VDC | Slide (Standard) | 5 | 2.54 mm | 0.1 " | Flush Recessed | 0.173 in | 4.4 mm | Through Hole | SPST | IP64 - Dust Tight Water Resistant | Gold | -20 ░C | 70 °C | PC Pin | 30 mA | 14.7 mm | 0.579 in |
