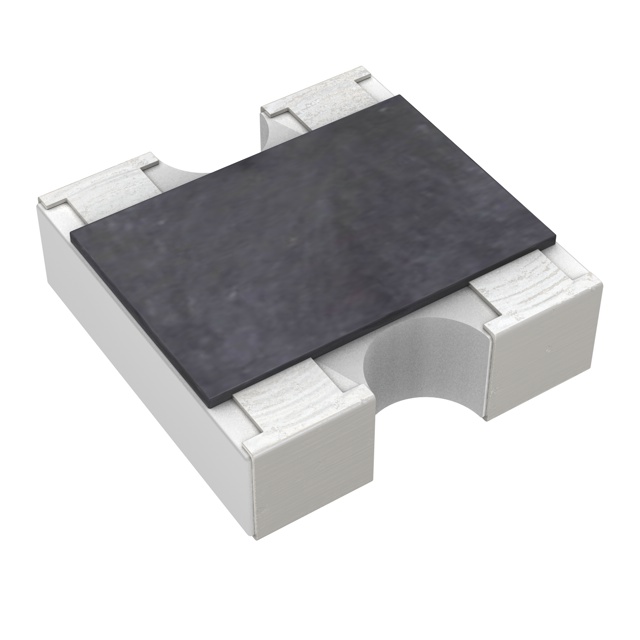

YC162-FR Series

Manufacturer: YAGEO

Catalog

RES ARRAY 2 RES 73.2 OHM 0606

...

Part	Package / Case	Grade	Temperature Coefficient	Qualification	Circuit Type	Applications	Height - Seated (Max) [Max]	Height - Seated (Max)	Power Per Element	Number of Resistors	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Pins	Mounting Type	Resistance (Ohms) [custom]	Tolerance	Resistance (Ohms)
YAGEO YC162-FR-0773R2L	0606 Convex	Automotive	200 ppm/°C	AEC-Q200	Isolated	DDRAM SDRAM	0.02 in	0.5 mm	62.5 mW	2	0.063 "	1.6 mm	0.063 "	1.6 mm	155 C	-55 C	4	Surface Mount	73.2 Ohms	1 %
YAGEO YC162-FR-0722K6L	0606 Convex	Automotive	200 ppm/°C	AEC-Q200	Isolated	DDRAM SDRAM	0.02 in	0.5 mm	62.5 mW	2	0.063 "	1.6 mm	0.063 "	1.6 mm	155 C	-55 C	4	Surface Mount		1 %	22.6 kOhms
YAGEO YC162-FR-0722R6L	0606 Convex	Automotive	200 ppm/°C	AEC-Q200	Isolated	DDRAM SDRAM	0.02 in	0.5 mm	62.5 mW	2	0.063 "	1.6 mm	0.063 "	1.6 mm	155 C	-55 C	4	Surface Mount		1 %	22.6 Ohms
YAGEO YC162-FR-0712K4L	0606 Convex	Automotive	200 ppm/°C	AEC-Q200	Isolated	DDRAM SDRAM	0.02 in	0.5 mm	62.5 mW	2	0.063 "	1.6 mm	0.063 "	1.6 mm	155 C	-55 C	4	Surface Mount	12.4 kOhms	1 %
YAGEO YC162-FR-0719R1L	0606 Convex	Automotive	200 ppm/°C	AEC-Q200	Isolated	DDRAM SDRAM	0.02 in	0.5 mm	62.5 mW	2	0.063 "	1.6 mm	0.063 "	1.6 mm	155 C	-55 C	4	Surface Mount		1 %	19.1 Ohms
YAGEO YC162-FR-07215RL	0606 Convex	Automotive	200 ppm/°C	AEC-Q200	Isolated	DDRAM SDRAM	0.02 in	0.5 mm	62.5 mW	2	0.063 "	1.6 mm	0.063 "	1.6 mm	155 C	-55 C	4	Surface Mount	215 Ohms	1 %
YAGEO YC162-FR-0718R2L	0606 Convex	Automotive	200 ppm/°C	AEC-Q200	Isolated	DDRAM SDRAM	0.02 in	0.5 mm	62.5 mW	2	0.063 "	1.6 mm	0.063 "	1.6 mm	155 C	-55 C	4	Surface Mount		1 %	18.2 Ohms
YAGEO YC162-FR-07887KL	0606 Convex	Automotive	200 ppm/°C	AEC-Q200	Isolated	DDRAM SDRAM	0.02 in	0.5 mm	62.5 mW	2	0.063 "	1.6 mm	0.063 "	1.6 mm	155 C	-55 C	4	Surface Mount		1 %	887 k
YAGEO YC162-FR-0711K3L	0606 Convex	Automotive	200 ppm/°C	AEC-Q200	Isolated	DDRAM SDRAM	0.02 in	0.5 mm	62.5 mW	2	0.063 "	1.6 mm	0.063 "	1.6 mm	155 C	-55 C	4	Surface Mount		1 %	11.3 kOhms
YAGEO YC162-FR-07226KL	0606 Convex	Automotive	200 ppm/°C	AEC-Q200	Isolated	DDRAM SDRAM	0.02 in	0.5 mm	62.5 mW	2	0.063 "	1.6 mm	0.063 "	1.6 mm	155 C	-55 C	4	Surface Mount		1 %	226 kOhms
