3RT1476 Series

Manufacturer: Siemens

Catalog

CONTACTOR RES S12 690A 240-277VU

Part	Coil Power	Release Time	Operate Time	Termination Style	Switching Voltage [Max]	Contact Rating (Current)	Coil Voltage [Min]	Coil Voltage [Max]	Features	Contact Form	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Siemens 3RT14766AU36	920 W	100 ms	100 ms	Screw Terminal	1000 VAC	690 A	240 VAC/DC	277 VAC	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	-25 °C	60 °C
Siemens 3RT14766AS36	920 W	100 ms	100 ms	Screw Terminal	1000 VAC	690 A	500 VAC	550 VAC/DC	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	-25 °C	60 °C
Siemens 3RT14766AV36	920 W	100 ms	100 ms	Screw Terminal	1000 VAC	690 A	380 VAC/DC	420 VAC/DC	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	-25 °C	60 °C

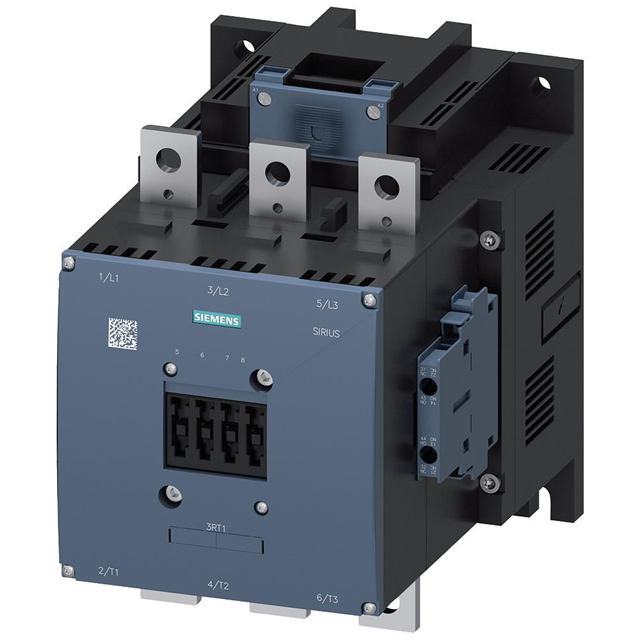

Siemens 3RT14766AF36	920 W	100 ms	100 ms	Screw Terminal	1000 VAC	690 A	110 VAC	127 VAC/DC	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	-25 °C	60 °C
Siemens 3RT14766SF36	800 W	130 ms	75 ms	Screw Terminal	1000 VAC	690 A	96 VAC/DC	127 VAC/DC	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	-25 °C	60 °C
Siemens 3RT14766NB36	800 W	100 ms	90 ms	Screw Terminal	1000 VAC	690 A	21 VAC/DC	27.3 VAC/DC	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	-25 °C	60 °C
Siemens 3RT14766AP360AE0	920 W	100 ms	100 ms	Screw Terminal	1000 VAC	690 A	220 VAC	240 VAC	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	-25 °C	60 °C
Siemens 3RT14766SP36	800 W	130 ms	75 ms	Screw Terminal	1000 VAC	690 A	200 VAC/DC	277 VAC	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	-25 °C	60 °C
Siemens 3RT14766SF363PA0	800 W	130 ms	75 ms	Screw Terminal	1000 VAC	690 A	96 VAC/DC	127 VAC/DC	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	-25 °C	60 °C
Siemens 3RT14766AT36	920 W	100 ms	100 ms	Screw Terminal	1000 VAC	690 A	575 VAC	600 VAC	Auxiliary Contacts	3PST-NO (3 Form A)	Chassis Mount DIN Rail	-25 °C	60 °C
