1986711 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLK 22P SIDE ENTRY 5MM PCB
| Part | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Features | Wire Termination | Number of Levels | Wire Gauge [Max] | Wire Gauge [Min] | Voltage | Positions Per Level | Clamp Material - Plating | Mounting Type | Current | Pitch [x] | Pitch [x] | Contact Material - Plating | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Polyamide (PA) Nylon | -40 °C | 110 °C | Green | Interlocking (Side) | Screwless - Push Button Clamp | 1 | 30 AWG | 12 AWG | 300 V | 22 | Steel | Through Hole | 16 A | 5 mm | 0.197 in | Copper Alloy - Tin Plated | Horizontal with Board |

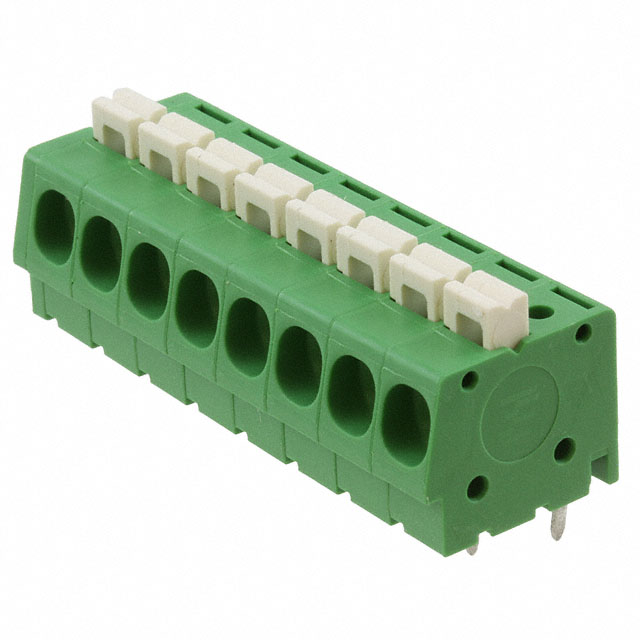

 TE Connectivity Raychem Cable Protection | Polyamide (PA) Nylon | -40 °C | 110 °C | Green | Interlocking (Side) | Screwless - Push Button Clamp | 1 | 30 AWG | 12 AWG | 300 V | 8 | Steel | Through Hole | 16 A | 5 mm | 0.197 in | Copper Alloy - Tin Plated | Horizontal with Board |

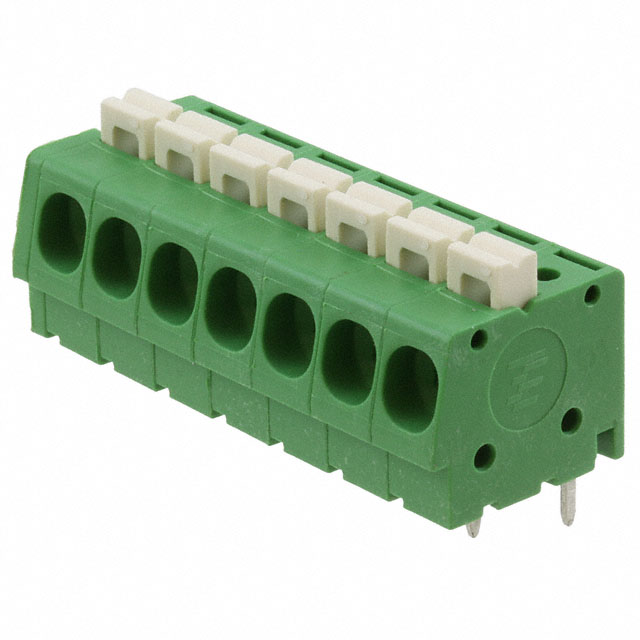

 TE Connectivity Raychem Cable Protection | Polyamide (PA) Nylon | -40 °C | 110 °C | Green | Interlocking (Side) | Screwless - Push Button Clamp | 1 | 30 AWG | 12 AWG | 300 V | 7 | Steel | Through Hole | 16 A | 5 mm | 0.197 in | Copper Alloy - Tin Plated | Horizontal with Board |

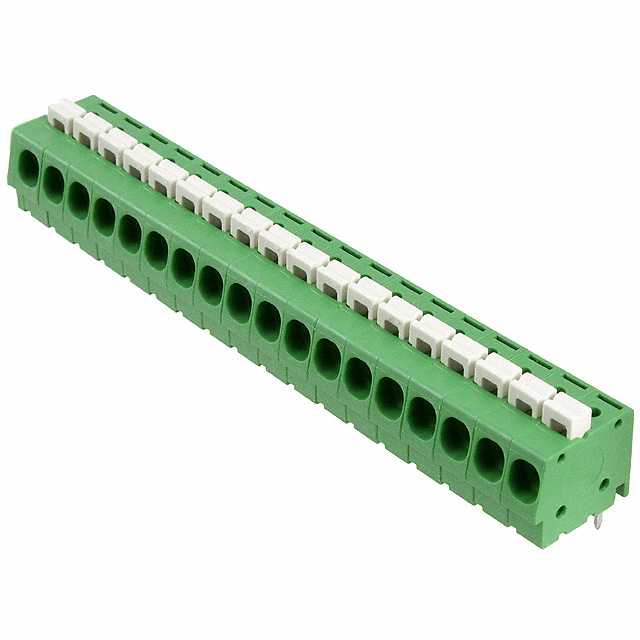

 TE Connectivity Raychem Cable Protection | Polyamide (PA) Nylon | -40 °C | 110 °C | Green | Interlocking (Side) | Screwless - Push Button Clamp | 1 | 30 AWG | 12 AWG | 300 V | 18 | Steel | Through Hole | 16 A | 5 mm | 0.197 in | Copper Alloy - Tin Plated | Horizontal with Board |

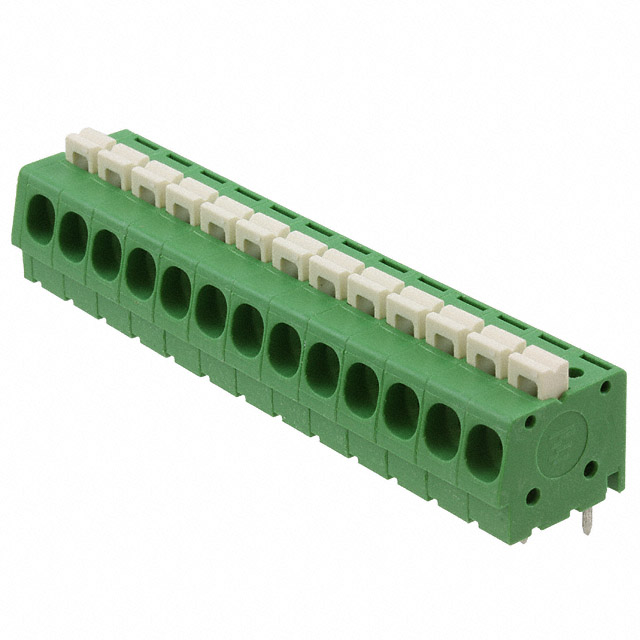

 TE Connectivity Raychem Cable Protection | Polyamide (PA) Nylon | -40 °C | 110 °C | Green | Interlocking (Side) | Screwless - Push Button Clamp | 1 | 30 AWG | 12 AWG | 300 V | 13 | Steel | Through Hole | 16 A | 5 mm | 0.197 in | Copper Alloy - Tin Plated | Horizontal with Board |

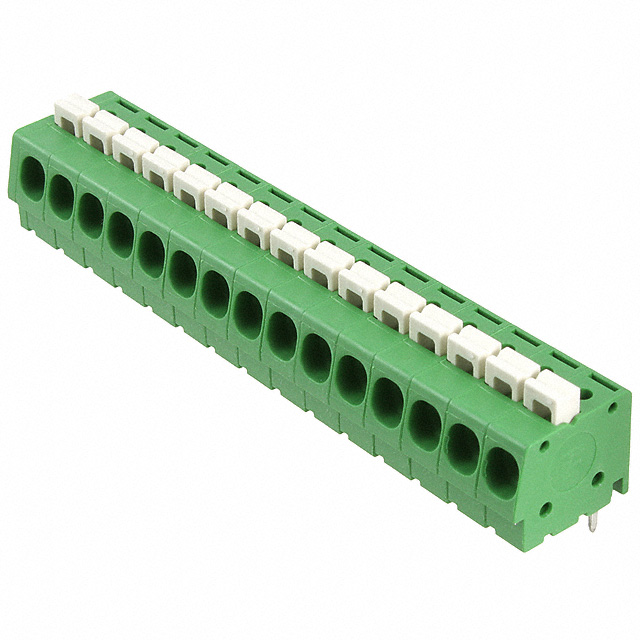

 TE Connectivity Raychem Cable Protection | Polyamide (PA) Nylon | -40 °C | 110 °C | Green | Interlocking (Side) | Screwless - Push Button Clamp | 1 | 30 AWG | 12 AWG | 300 V | 15 | Steel | Through Hole | 16 A | 5 mm | 0.197 in | Copper Alloy - Tin Plated | Horizontal with Board |

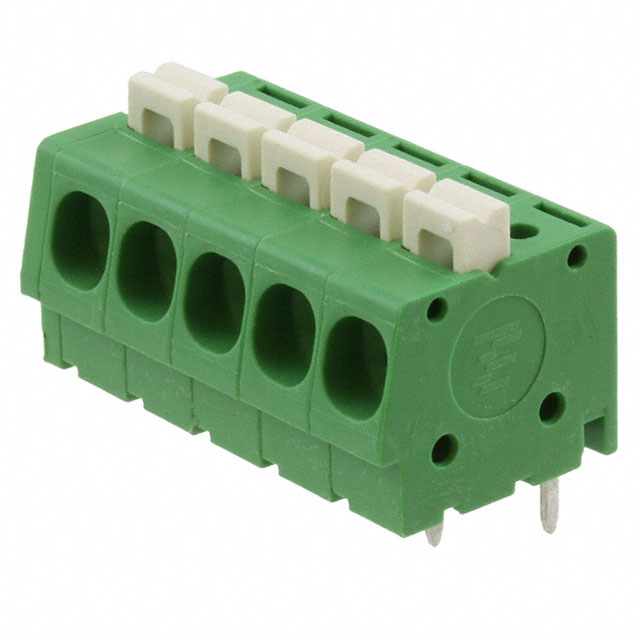

 TE Connectivity Raychem Cable Protection | Polyamide (PA) Nylon | -40 °C | 110 °C | Green | Interlocking (Side) | Screwless - Push Button Clamp | 1 | 30 AWG | 12 AWG | 300 V | 5 | Steel | Through Hole | 16 A | 5 mm | 0.197 in | Copper Alloy - Tin Plated | Horizontal with Board |
