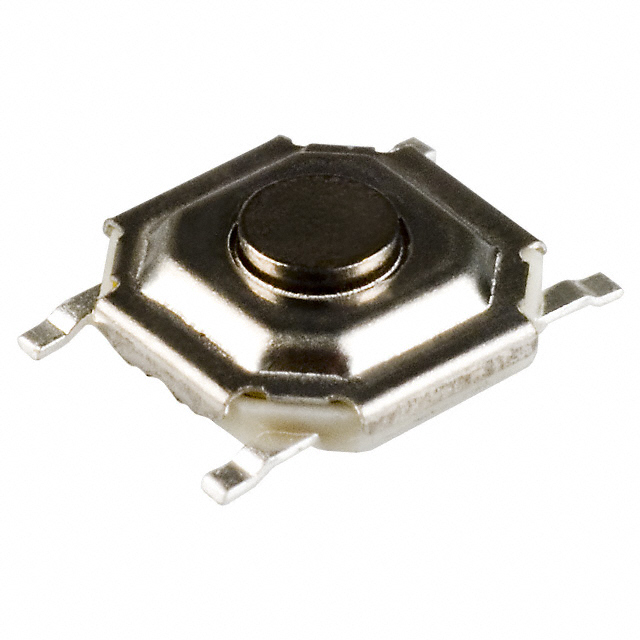

TL3342 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Actuator Material | Mechanical Life | Termination Style | Actuator Orientation | Outline [y] | Outline [x] | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Switch Function | Mounting Type | Actuator Type | Operating Force | Actuator Height off PCB, Vertical | Illumination | Contact Rating @ Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Polyphenylene Sulfide (PPS) | 100000 Cycles | Gull Wing | Top Actuated | 4.9 mm | 4.9 mm | -20 ░C | 70 °C | SPST-NO | Off-Mom | Surface Mount | Standard | 0.5 kgf | 1.54 mm | Non-Illuminated | 0.05 A 12 VDC |
E-Switch | Polyphenylene Sulfide (PPS) | 100000 Cycles | Gull Wing | Top Actuated | 4.9 mm | 4.9 mm | -20 ░C | 70 °C | SPST-NO | Off-Mom | Surface Mount | Standard | 160 gf | 1.54 mm | Non-Illuminated | 0.05 A 12 VDC |
E-Switch | Polyphenylene Sulfide (PPS) | 100000 Cycles | Gull Wing | Top Actuated | 4.9 mm | 4.9 mm | -20 ░C | 70 °C | SPST-NO | Off-Mom | Surface Mount | Standard | 320 gf | 1.54 mm | Non-Illuminated | 0.05 A 12 VDC |
 E-Switch | Gull Wing | Top Actuated | 4.9 mm | 4.9 mm | -20 ░C | 70 °C | SPST-NO | Off-Mom | Surface Mount | Standard | 160 gf | Non-Illuminated | 0.05 A 12 VDC |
