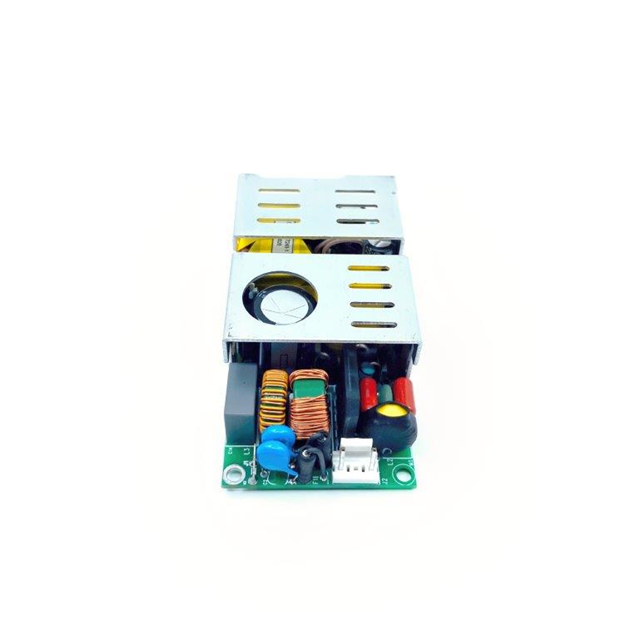

SLB125 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC CONVERTER 24V 86W
| Part | Minimum Load Required | Voltage - Isolation | Number of Outputs | Applications | Standard Number | Approval Agency | Features | Efficiency | Current - Output 1 | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Type | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 4000 V | 1 | ITE (Commercial) Medical | 60601-1; 62368-1 | CE CSA cURus TUV UL | Universal Input | 89 % | 3.6 A | 86 W 125 W | 80 VAC | 264 VAC | Open Frame | 24 V | 70 °C | -20 °C | Chassis Mount | 32.1 mm | 2 in | 101.6 mm | 1.26 " | 50.8 mm | 4 " | |
SL POWER / Advanced Energy | 4000 V | 1 | ITE (Commercial) Medical | 60601-1; 62368-1 | CE CSA cURus TUV UL | Universal Input | 89 % | 7.1 A | 85 W 125 W | 80 VAC | 264 VAC | Open Frame | 12 V | 70 °C | -20 °C | Chassis Mount | 32.1 mm | 2 in | 101.6 mm | 1.26 " | 50.8 mm | 4 " | |
SL POWER / Advanced Energy | 4000 V | 1 | ITE (Commercial) Medical | 60601-1; 62368-1 | CE CSA cURus TUV UL | Universal Input | 89 % | 5.6 A | 84 W 125 W | 80 VAC | 264 VAC | Open Frame | 15 V | 70 °C | -20 °C | Chassis Mount | 32.1 mm | 2 in | 101.6 mm | 1.26 " | 50.8 mm | 4 " |
