FZTRL8 Series
Manufacturer: Panduit Corp
Beta
⌘K

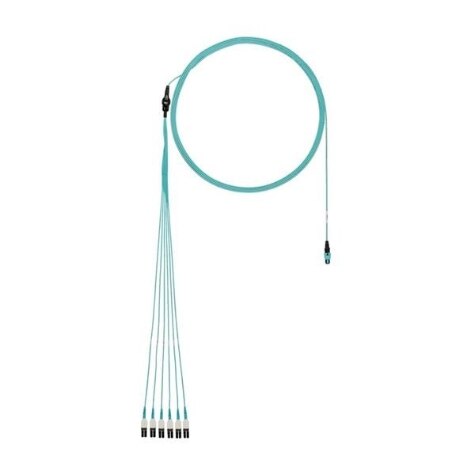

FIBER OPTIC CABLE ASSEMBLIES OM4 12-FIBER, ROUND HARNESS CABLE, LSZH,
| Part | Bend Radius [radius] | Insertion Loss | Jacket (Insulation) Material | Return Loss | Color - Connectors | Operating Temperature [Min] | Operating Temperature [Max] | Cable Diameter [diameter] | Cable Diameter [diameter] | 2nd Connector | Length - Overall [x] | Length - Overall [x] | Type | Fiber Type | Cable Type | 1st Connector | Ratings | Features | Length - Overall | Length - Overall | Length - Overall [custom] | Length - Overall [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 30 mm | 0.5 dB | Low Smoke Zero Halogen (LSZH) | 26 dB | Aqua | 0 °C | 60 °C | 3 mm | 0.12 in | LC Duplex (6) | 4 m | 13.1 ft | Duplex Multimode OM4 | 50/125 | Break-Out | MPO | ||||||
 Panduit Corp | 3 mm | 0.12 in | LC Duplex | OM4 | 50/125 | MPO | LSZH | Low Smoke | ||||||||||||||
Panduit Corp | 30 mm | 0.5 dB | Low Smoke Zero Halogen (LSZH) | 26 dB | Aqua | 0 °C | 60 °C | 3 mm | 0.12 in | LC Duplex (6) | Duplex Multimode OM4 | 50/125 | Break-Out | MPO | 9.8 ' | 3 m | ||||||
Panduit Corp | 30 mm | 0.5 dB | Low Smoke Zero Halogen (LSZH) | 26 dB | Aqua | 0 °C | 60 °C | 3 mm | 0.12 in | LC Duplex (6) | 1 m | 3.3 ft | Duplex Multimode OM4 | 50/125 | Break-Out | MPO | ||||||
Panduit Corp | 3 mm | 0.12 in | LC Duplex | OM4 | 50/125 | MPO | LSZH | Low Smoke | ||||||||||||||
 Panduit Corp | 30 mm | 0.5 dB | Low Smoke Zero Halogen (LSZH) | 26 dB | Aqua | 0 °C | 60 °C | 3 mm | 0.12 in | LC Duplex (6) | Duplex Multimode OM4 | 50/125 | Break-Out | MPO | 29.5 ft | 9 m | ||||||
Panduit Corp | 30 mm | 0.5 dB | Low Smoke Zero Halogen (LSZH) | 26 dB | Aqua | 0 °C | 60 °C | 3 mm | 0.12 in | LC Duplex (6) | 10 m | 32.8 ' | Duplex Multimode OM4 | 50/125 | Break-Out | MPO | ||||||
Panduit Corp | 30 mm | 0.5 dB | Low Smoke Zero Halogen (LSZH) | 26 dB | Aqua | 0 °C | 60 °C | 3 mm | 0.12 in | LC Duplex (6) | 27 m | 88.6 ' | Duplex Multimode OM4 | 50/125 | Break-Out | MPO | ||||||
Panduit Corp | 30 mm | 0.5 dB | Low Smoke Zero Halogen (LSZH) | 26 dB | Aqua | 0 °C | 60 °C | 3 mm | 0.12 in | LC Duplex (6) | Duplex Multimode OM4 | 50/125 | Break-Out | MPO | 16.4 ' | 5 m | ||||||
Panduit Corp | 30 mm | 0.5 dB | Low Smoke Zero Halogen (LSZH) | 26 dB | Aqua | 0 °C | 60 °C | 3 mm | 0.12 in | LC Duplex (6) | 8 m | 26.2 ' | Duplex Multimode OM4 | 50/125 | Break-Out | MPO |
