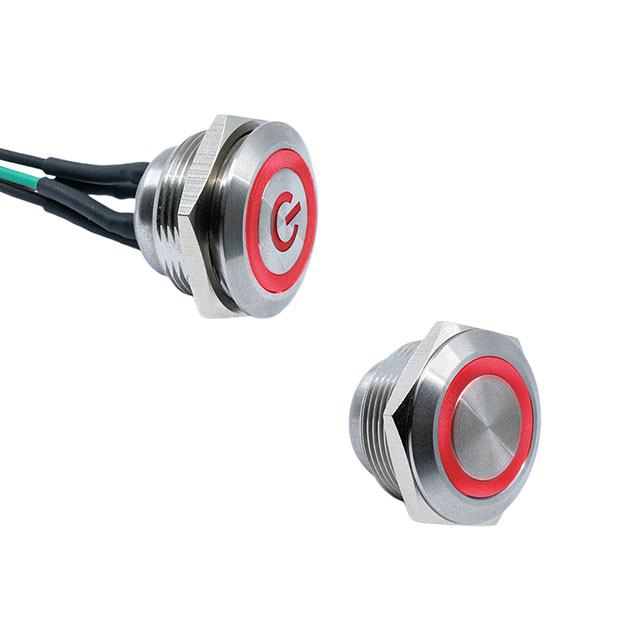

SV7F23 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH: VANDAL RESISTANT; POS: 2; SPST-NO; 2A/36VDC; IP67; OFF-(ON)
| Part | Electrical Life | Termination Style | Panel Cutout Dimensions [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Illumination Voltage (Nominal) | Mounting Type | Actuator Type | Ingress Protection | Actuator Marking | Type | Current Rating (Amps) | Color - Actuator/Cap | Illumination Type, Color | Switch Function | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 200000 Cycles | Solder Quick Connect - 0.110" (2.8mm) | 22.2 mm | -20 ░C | 70 °C | 36 VDC | 2 VDC | Panel Mount Front | Button Flush Round | IP67 - Dust Tight Waterproof | No Marking | Anti-Vandal Illuminated | 2 A | Silver | LED Red | Off-Mom | SPST-NO |
E-Switch | 200000 Cycles | Solder Quick Connect - 0.110" (2.8mm) | 22.2 mm | -20 ░C | 70 °C | 36 VDC | 2 VDC 3.1 VDC | Panel Mount Front | Button Flush Round | IP67 - Dust Tight Waterproof | Power Symbol | Anti-Vandal Illuminated | 2 A | Silver | Green/Red LED | Off-Mom | SPST-NO |
