9363 Series
Manufacturer: Belden Inc.
Beta
⌘K
CABLE 3COND 22AWG CHROMEE SHD
| Part | Shield Coverage | Shield Material | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Features | Cable Type | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Ratings | Shield Type | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Usage | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

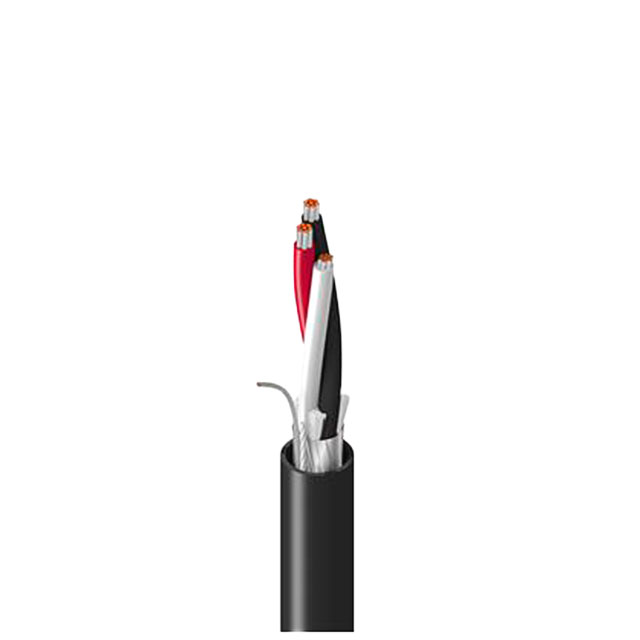

 Belden Inc. | 100 % | Aluminum | Copper Tinned | 5.33 mm | 0.21 in | Chrome | Drain Wire Rip Cord | Multi-Conductor | 304.8 m | 1000 ft | 0.94 mm | 0.037 in | 3 | UL Style 2464 | Foil | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | 22 AWG | Instrumentation | |

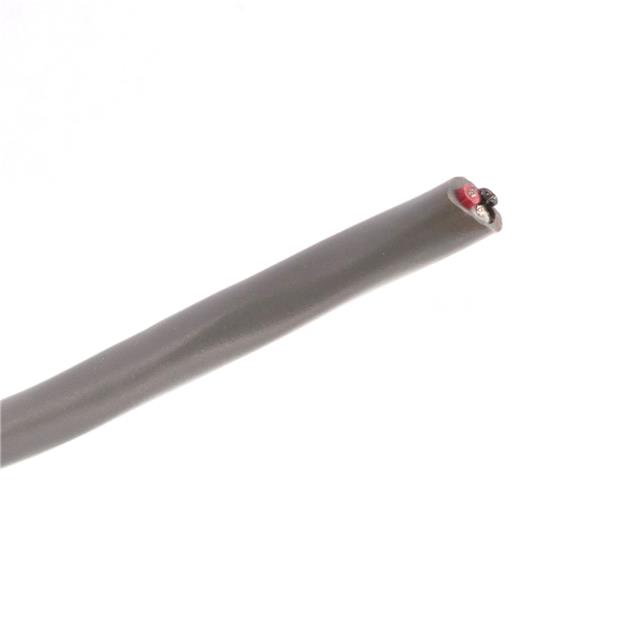

 Belden Inc. | 100 % | Aluminum | Copper Tinned | 5.28 mm | Chrome | Drain Wire Rip Cord | Multi-Pair | 152.4 m | 500 ft | 0.94 mm | 0.037 in | 3 | Foil | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | 22 AWG | 0.208 " |
