RF55-29 Series
Manufacturer: Adam Tech
Beta
⌘K
FAKRA PLUG SMB TYPE: STRAIGHT, F
| Part | Body Material | Body Finish | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Shield Termination | Center Contact Material | Connector Style | Impedance | Contact Termination | Connector Type | Number of Ports | Frequency - Max [Max] | Mounting Type | Housing Color | Fastening Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Brass | Gold | Gold | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Solder | Brass | Fakra SMB | 50 Ohms | Solder | Plug Male Pin | 1 | 4 GHz | Through Hole | Green | Locking Ramp | Code E |

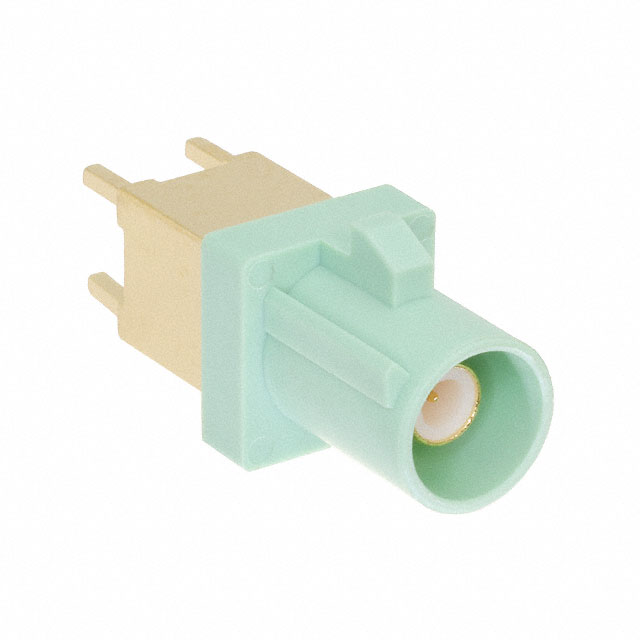

 Adam Tech | Brass | Gold | Gold | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Solder | Brass | Fakra SMB | 50 Ohms | Solder | Plug Male Pin | 1 | 4 GHz | Through Hole | Green Pastel | Locking Ramp | Code N |
 Adam Tech | Brass | Gold | Gold | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Solder | Brass | Fakra SMB | 50 Ohms | Solder | Plug Male Pin | 1 | 4 GHz | Through Hole | Violet | Locking Ramp | Code H |
 Adam Tech | Brass | Gold | Gold | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Solder | Brass | Fakra SMB | 50 Ohms | Solder | Plug Male Pin | 1 | 4 GHz | Through Hole | Gray | Locking Ramp | Code G |

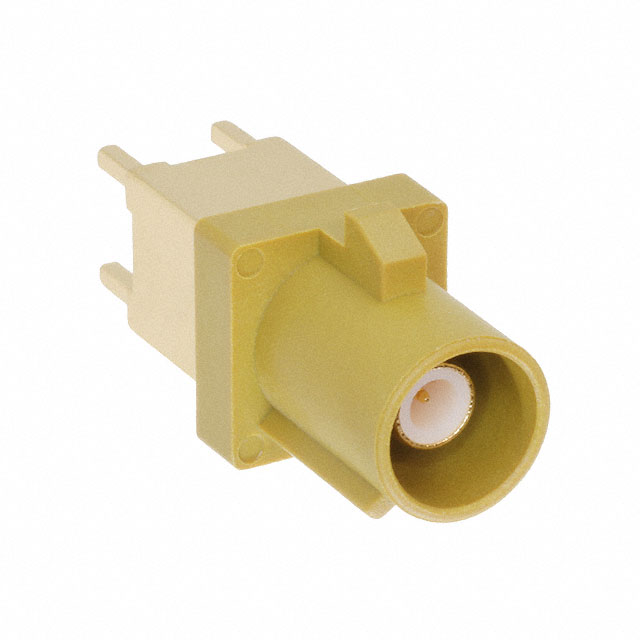

 Adam Tech | Brass | Gold | Gold | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Solder | Brass | Fakra SMB | 50 Ohms | Solder | Plug Male Pin | 1 | 4 GHz | Through Hole | Curry | Locking Ramp | Code K |
 Adam Tech | Brass | Gold | Gold | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Solder | Brass | Fakra SMB | 50 Ohms | Solder | Plug Male Pin | 1 | 4 GHz | Through Hole | White | Locking Ramp | Code B |
 Adam Tech | Brass | Gold | Gold | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Solder | Brass | Fakra SMB | 50 Ohms | Solder | Plug Male Pin | 1 | 4 GHz | Through Hole | Bordeaux Violet | Locking Ramp | Code D |
 Adam Tech | Brass | Gold | Gold | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Solder | Brass | Fakra SMB | 50 Ohms | Solder | Plug Male Pin | 1 | 4 GHz | Through Hole | Blue Water | Locking Ramp | Code Z |
 Adam Tech | Brass | Gold | Gold | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Solder | Brass | Fakra SMB | 50 Ohms | Solder | Plug Male Pin | 1 | 4 GHz | Through Hole | Blue | Locking Ramp | Code C |
