CBBJR Series
Manufacturer: Cinch Connectivity Solutions Trompeter
Beta
⌘K

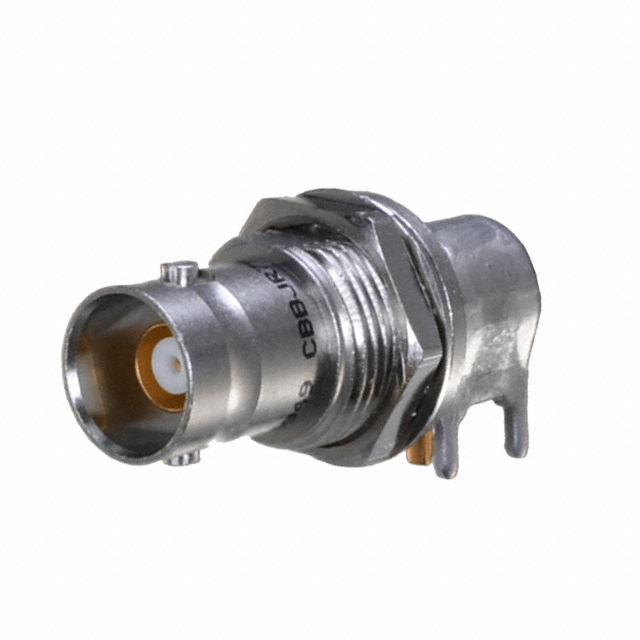

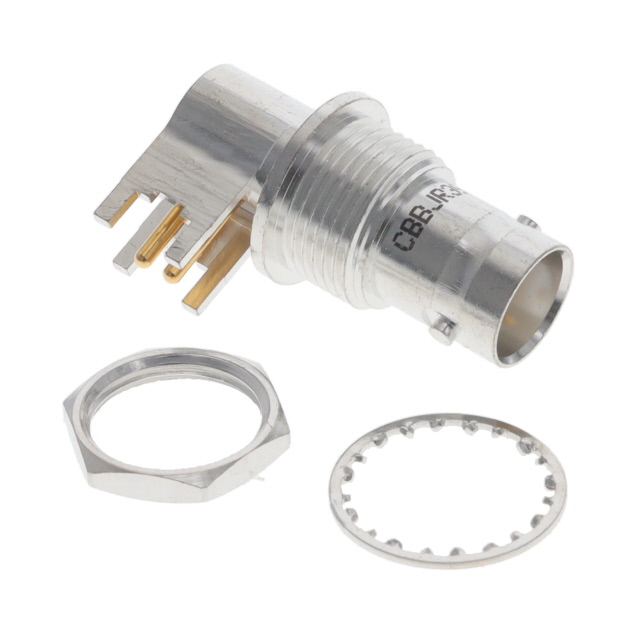

CONN TRB JACK R/A PCB
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Mating Cycles | Body Material | Voltage Rating | Includes | Dielectric Material | Center Contact Material | Impedance | Housing Color | Connector Style | Frequency - Max [Max] | Fastening Type | Connector Type | Number of Ports | Mounting Type | Mounting Feature | Shield Termination | Contact Termination | Features | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions Trompeter | Tin | -65 ░C | 165 °C | Gold | 500 | Brass | 400 V | 1 Nut 1 Washer 3 pcs - 1 Connector | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Non-Constant | Silver | TRB Twinaxial/Triaxial | 500 MHz | Bayonet Lock | Jack Female Socket (Concentric) | 1 | Panel Mount Right Angle Through Hole | Bulkhead - Front Side Nut | Solder | Solder | ||
 Cinch Connectivity Solutions Trompeter | Nickel | Gold | Brass | 1 Nut 1 Washer 3 pcs - 1 Connector | Silver | BNC | 500 MHz | Bayonet Lock | Female Socket Jack Male Pin | 1 | Panel Mount Right Angle Through Hole | Bulkhead - Front Side Nut | Solder | Solder | Board Guide | Twinaxial |
