FR01SR10 Series

Catalog

SWITCH ROTARY DIP BCD 0.1A 5V

Part	Electrical Life	Length [x]	Length [x]	Mechanical Life	Body Material	Actuator Type	Current Rating (Amps)	Washable	Actuator Level	Contact Finish	Voltage Rating	Contact Material	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Termination Style	Circuit	Mounting Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]

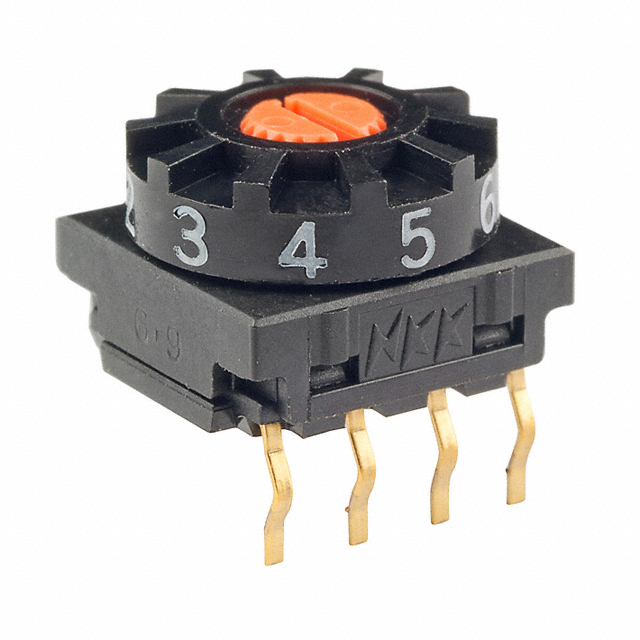

NKK Switches FR01SR10P	10000 Cycles	0.394 in	10 mm	10000 Steps	Polyamide (PA) Nylon Glass Filled	Rotary with Knob	100 mA		Raised	Gold	5 V	Copper Alloy	0.284 in	7.21 mm	2.54 mm	0.1 "	PC Pin	BCD	Through Hole	10	85 °C	-25 °C
NKK Switches FR01SR10P-W-S	10000 Cycles	0.394 in	10 mm	10000 Steps	Polyamide (PA) Nylon Glass Filled	Rotary with Knob	100 mA		Raised	Gold	5 V	Copper Alloy	0.284 in	7.21 mm	2.54 mm	0.1 "	PC Pin	BCD	Through Hole	10	85 °C	-25 °C
