R16115 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

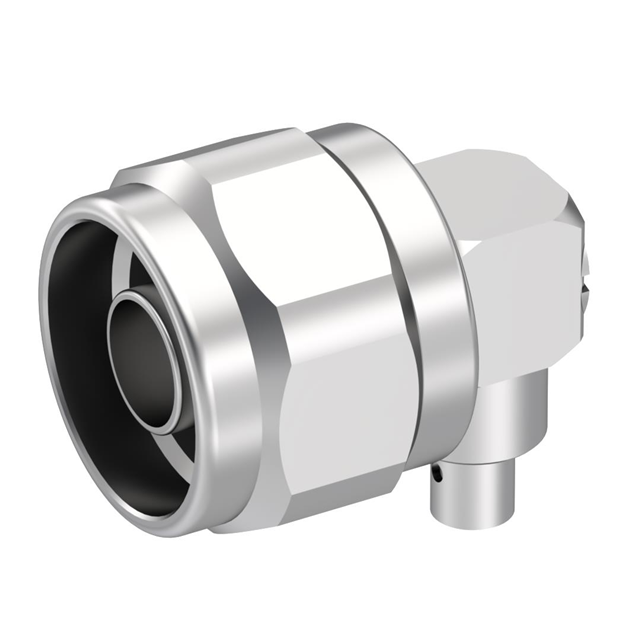

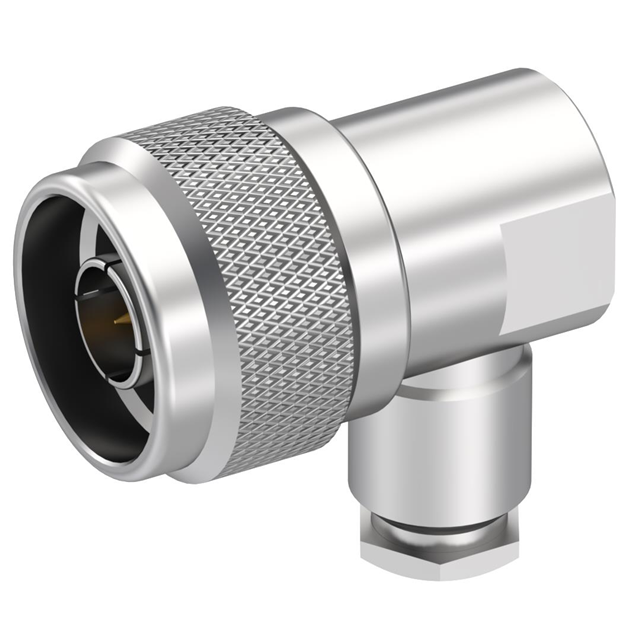

N / RIGHT ANGLE PLUG CLAMP TYPE
| Part | Insertion Loss | Dielectric Material | Voltage Rating | Body Finish | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Body Material | Frequency - Max [Max] | Number of Ports | Contact Termination | Connector Type | Connector Style | Center Contact Material | Impedance | Cable Group | Shield Termination | Ingress Protection | Fastening Type | Housing Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 0.15 dB | Polytetrafluoroethylene (PTFE) | 850 V | White Bronze | Gold | 155 C | -55 C | 500 | Brass | 11 GHz | 1 | Solder | Plug Male Pin | N Type | Brass | 50 Ohms | 141 142 223 400 RG-58 | Clamp | IP67 - Dust Tight Waterproof | Threaded | Silver | Free Hanging (In-Line) Right Angle |
 Radiall USA, Inc. | 0.15 dB | Polytetrafluoroethylene (PTFE) | 335 V | White Bronze | Gold | 105 ░C | -55 C | 500 | Brass | 11 GHz | 1 | Solder | Plug Male Pin | N Type | Brass | 50 Ohms | Solder | Threaded | Silver | Free Hanging (In-Line) Right Angle |
