SR99S01VW Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

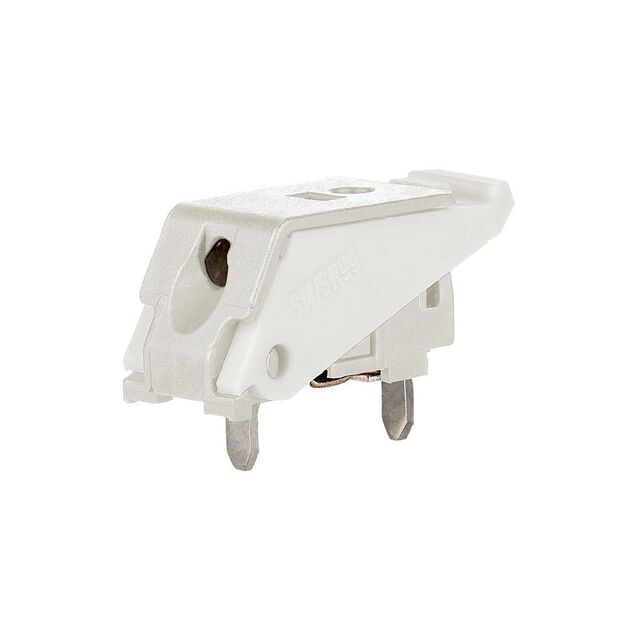

TERM BLOCK 1POS SIDE ENTRY PCB
| Part | Housing Material | Clamp Material - Plating | Contact Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Mounting Type | Features | Mating Orientation | Number of Levels | Color | Positions Per Level | Current | Wire Termination | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Steel | Copper Alloy - Tin Plated | -40 C | 105 ░C | 300 VDC | Through Hole | Push Button Actuated | Horizontal with Board | 1 | Brown | 1 | 9 A | Screwless - Spring Cage Tension Clamp | 24 AWG | 16 AWG |
 METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Steel | Copper Alloy - Tin Plated | -40 C | 105 ░C | 300 VDC | Through Hole | Push Button Actuated | Horizontal with Board | 1 | White | 1 | 9 A | Screwless - Spring Cage Tension Clamp | 24 AWG | 16 AWG |
