292207 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER VERT 13POS 1.5MM

Part	Number of Rows	Mounting Type	Shrouding	Insulation Material	Current Rating (Amps)	Applications	Overall Contact Length	Overall Contact Length	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Material Flammability Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Voltage Rating	Connector Type	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Number of Positions	Contact Material	Fastening Type	Insulation Height	Insulation Height [z]	Features	Contact Length - Post	Contact Length - Post	Contact Type	Insulation Color	Contact Finish - Post	Number of Positions

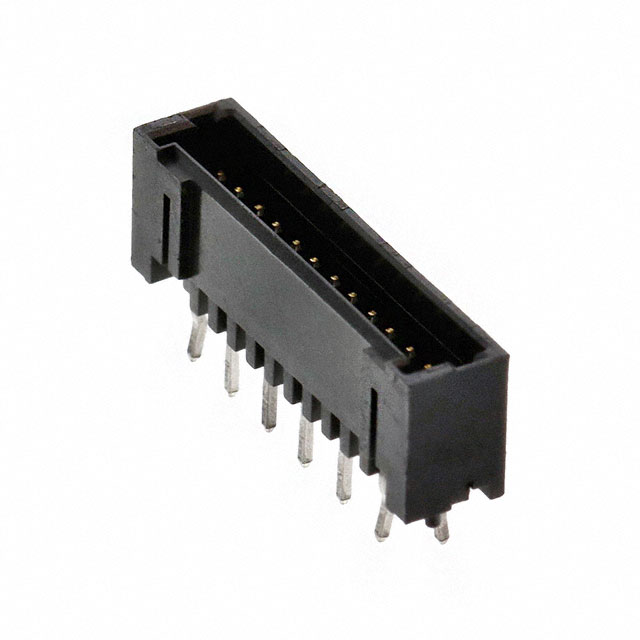

TE Connectivity Raychem Cable Protection 3-292207-3	1	Through Hole	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Varies by Wire Gauge	General Purpose	0.307 in	7.8 mm	Board to Cable/Wire	1 µm	39.4 µin	Square	UL94 V-0	All	-30 ░C	105 ░C	Kinked Pin Solder	50 VAC	Header	2.4 mm	0.094 in	13	Brass	Detent Lock	6.91 mm	0.272 "	Board Guide	0.118 in	3 mm	Male Pin	Black	Tin

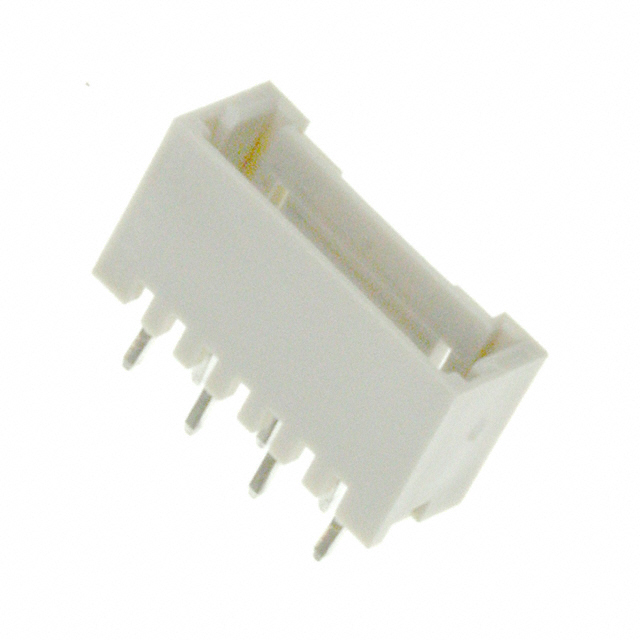

TE Connectivity Raychem Cable Protection 292207-7	1	Through Hole	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Varies by Wire Gauge	General Purpose	0.307 in	7.8 mm	Board to Cable/Wire	1 µm	39.4 µin	Square	UL94 V-0	All	-30 ░C	105 ░C	Kinked Pin Solder	50 VAC	Header	2.4 mm	0.094 in	7	Brass	Detent Lock	6.91 mm	0.272 "	Board Guide	0.118 in	3 mm	Male Pin	Gray	Tin

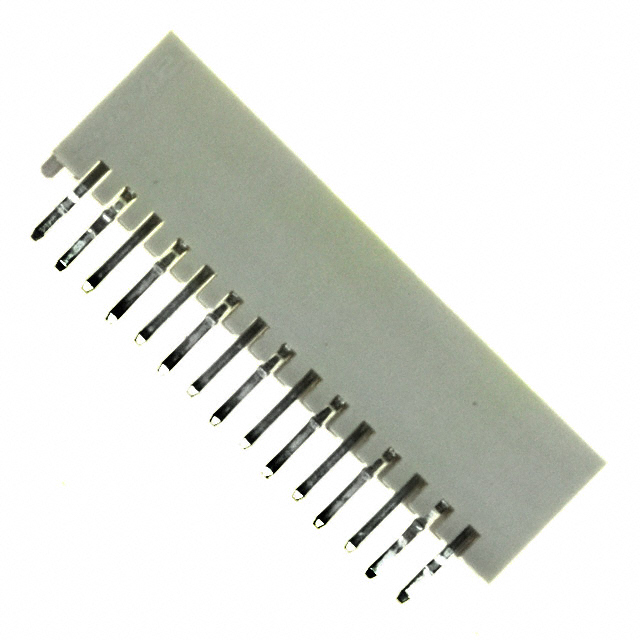

TE Connectivity Raychem Cable Protection 1-292207-5	1	Through Hole	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Varies by Wire Gauge	General Purpose	0.307 in	7.8 mm	Board to Cable/Wire	1 µm	39.4 µin	Square	UL94 V-0	All	-30 ░C	105 ░C	Kinked Pin Solder	50 VAC	Header	2.4 mm	0.094 in	15	Brass	Detent Lock	6.91 mm	0.272 "	Board Guide	0.118 in	3 mm	Male Pin	Gray	Tin
TE Connectivity Raychem Cable Protection 6-292207-8	1	Through Hole	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Varies by Wire Gauge	General Purpose	0.307 in	7.8 mm	Board to Cable/Wire	1 µm	39.4 µin	Square	UL94 V-0	All	-30 ░C	105 ░C	Kinked Pin Solder	50 VAC	Header	2.4 mm	0.094 in	18	Brass	Detent Lock	6.91 mm	0.272 "	Board Guide	0.118 in	3 mm	Male Pin	Blue	Tin

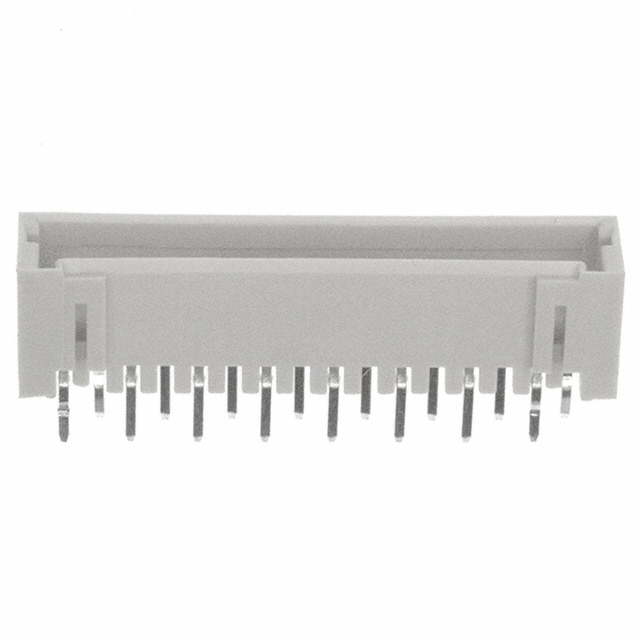

TE Connectivity Raychem Cable Protection 1-292207-6	1	Through Hole	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Varies by Wire Gauge	General Purpose	0.307 in	7.8 mm	Board to Cable/Wire	1 µm	39.4 µin	Square	UL94 V-0	All	-30 ░C	105 ░C	Kinked Pin Solder	50 VAC	Header	2.4 mm	0.094 in		Brass	Detent Lock	6.91 mm	0.272 "	Board Guide	0.118 in	3 mm	Male Pin	Gray	Tin	16

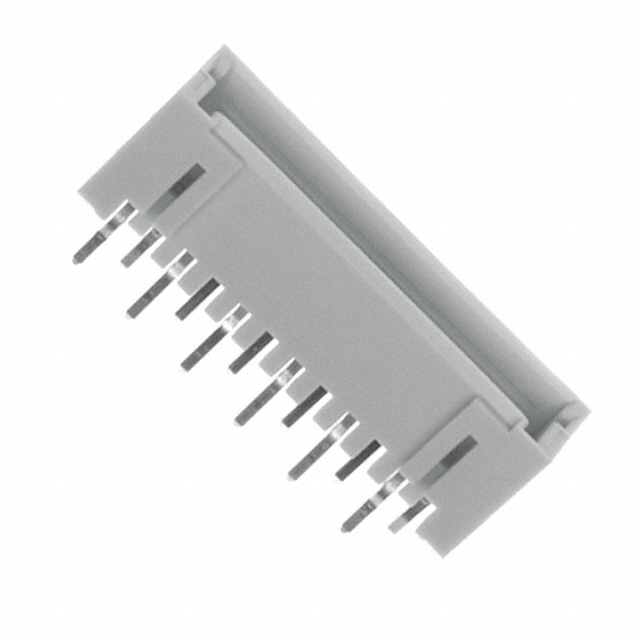

TE Connectivity Raychem Cable Protection 1-292207-2	1	Through Hole	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Varies by Wire Gauge	General Purpose	0.307 in	7.8 mm	Board to Cable/Wire	1 µm	39.4 µin	Square	UL94 V-0	All	-30 ░C	105 ░C	Kinked Pin Solder	50 VAC	Header	2.4 mm	0.094 in	12	Brass	Detent Lock	6.91 mm	0.272 "	Board Guide	0.118 in	3 mm	Male Pin	Gray	Tin
TE Connectivity Raychem Cable Protection 2-292207-6	1	Through Hole	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Varies by Wire Gauge	General Purpose	0.307 in	7.8 mm	Board to Cable/Wire	1 µm	39.4 µin	Square	UL94 V-0	All	-30 ░C	105 ░C	Kinked Pin Solder	50 VAC	Header	2.4 mm	0.094 in	6	Brass	Detent Lock	6.91 mm	0.272 "	Board Guide	0.118 in	3 mm	Male Pin	Black	Tin
TE Connectivity Raychem Cable Protection 292207-6	1	Through Hole	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Varies by Wire Gauge	General Purpose	0.307 in	7.8 mm	Board to Cable/Wire	1 µm	39.4 µin	Square	UL94 V-0	All	-30 ░C	105 ░C	Kinked Pin Solder	50 VAC	Header	2.4 mm	0.094 in	6	Brass	Detent Lock	6.91 mm	0.272 "	Board Guide	0.118 in	3 mm	Male Pin	Gray	Tin
TE Connectivity Raychem Cable Protection 1-292207-3	1	Through Hole	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Varies by Wire Gauge	General Purpose	0.307 in	7.8 mm	Board to Cable/Wire	1 µm	39.4 µin	Square	UL94 V-0	All	-30 ░C	105 ░C	Kinked Pin Solder	50 VAC	Header	2.4 mm	0.094 in	13	Brass	Detent Lock	6.91 mm	0.272 "	Board Guide	0.118 in	3 mm	Male Pin	Gray	Tin

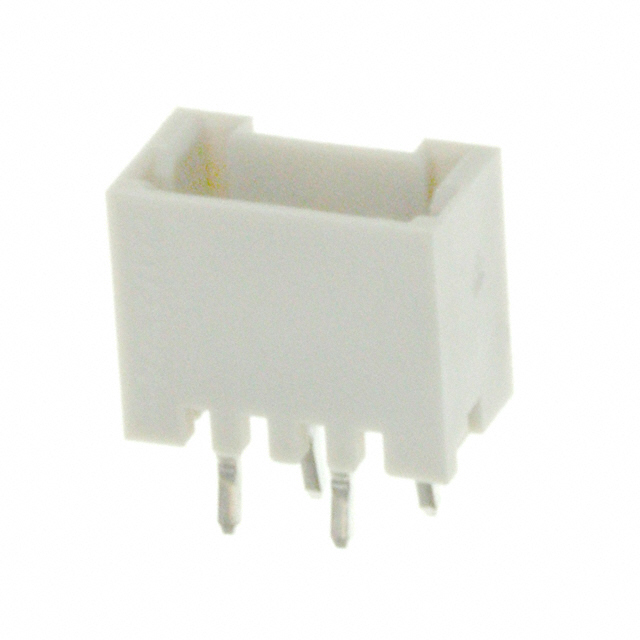

TE Connectivity Raychem Cable Protection 292207-4	1	Through Hole	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Varies by Wire Gauge	General Purpose	0.307 in	7.8 mm	Board to Cable/Wire	1 µm	39.4 µin	Square	UL94 V-0	All	-30 ░C	105 ░C	Kinked Pin Solder	50 VAC	Header	2.4 mm	0.094 in	4	Brass	Detent Lock	6.91 mm	0.272 "	Board Guide	0.118 in	3 mm	Male Pin	Gray	Tin
