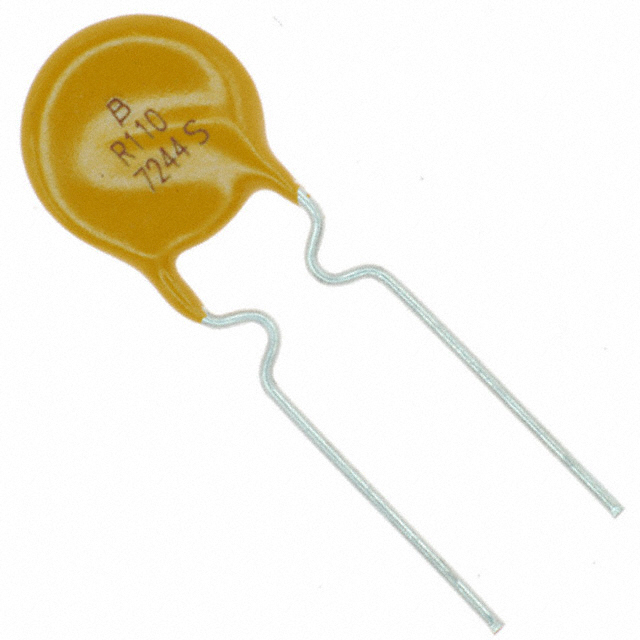

MF-R110 Series

Catalog

PTC RESETTABLE FUSE 1.1A(HOLD) 2.2A(TRIP) 30V 40A 0.7W 6.6S 0.1OHM RADIAL 8.9 X 3MM AMMO AUTOMOTIVE AEC-Q200

Part	Approval Agency	Current - Trip (It)	Lead Spacing	Lead Spacing	Resistance - Post Trip (R1) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Time to Trip	Resistance - Initial (Ri) (Min) [Min]	Package / Case	Current - Max [Max]	Type	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Voltage - Max [Max]	Current - Hold (Ih) (Max) [Max]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Bourns Inc. MF-R110-AP	cURus TUV	2.2 A	0.201 in	5.1 mm	270 mOhms	85 °C	-40 C	6.6 s	100 mOhms	Disc Radial	40 A	Polymeric	0.118 "	0.35 in	8.9 mm	3 mm	30 V	1.1 A	Through Hole	14 mm	0.551 in
Bourns Inc. MF-R110-2	cURus TUV	2.2 A	0.201 in	5.1 mm	270 mOhms	85 °C	-40 C	6.6 s	100 mOhms	Disc Radial	40 A	Polymeric	0.118 "	0.35 in	8.9 mm	3 mm	30 V	1.1 A	Through Hole	14 mm	0.551 in
