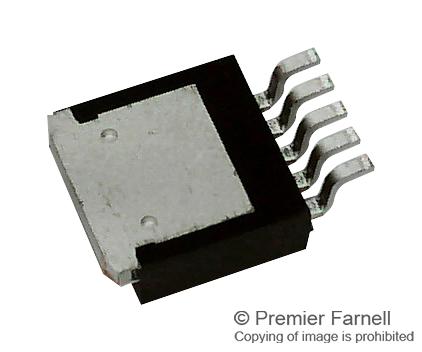

NCV4275C Series

LDO Regulator, 450 mA, 42 V, 150 µA IQ, with Delay and Reset

Catalog

LDO Regulator, 450 mA, 42 V, 150 µA IQ, with Delay and Reset

Part	PSRR	Voltage - Output (Min/Fixed)	Current - Output	Voltage Dropout (Max) [Max]	Protection Features	Current - Quiescent (Iq)	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Output Configuration	Voltage - Input (Max) [Max]	Output Type	Grade	Control Features	Current - Supply (Max) [Max]	Number of Regulators	Supplier Device Package
ON Semiconductor NCV4275ADS50R4G-IR01	60 dB	5 V	450 mA	0.5 V	Over Temperature Reverse Polarity Short Circuit	200 µA	AEC-Q100	150 °C	-40 °C	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	Surface Mount	Positive	42 V	1.81 mOhm	Automotive	Reset	35 mA	1	D2PAK-5
ON Semiconductor NCV4275DS	60 dB	5 V	450 mA	0.5 V	Over Temperature Reverse Polarity Short Circuit	200 µA	AEC-Q100			D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	Surface Mount	Positive	45 V	1.81 mOhm	Automotive	Reset	35 mA	1	D2PAK-5
ON Semiconductor NCV4275DTRKG	60 dB	5 V	450 mA	0.5 V	Over Temperature Reverse Polarity Short Circuit	200 µA	AEC-Q100			DPAK (4 Leads + Tab) TO-252-5 TO-252AD	Surface Mount	Positive	45 V	1.81 mOhm	Automotive	Reset	35 mA	1	DPAK-5
ON Semiconductor NCV4275CDS50R4G	60 dB	5 V	450 mA	0.5 V	Over Temperature Reverse Polarity Short Circuit	150 çA	AEC-Q100			D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	Surface Mount	Positive	42 V	1.81 mOhm	Automotive	Reset	35 mA	1	D2PAK-5
ON Semiconductor NCV4275CDS33R4G	60 dB	3.3 V	450 mA	0.5 V	Over Temperature Reverse Polarity Short Circuit	150 çA	AEC-Q100			D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	Surface Mount	Positive	42 V	1.81 mOhm	Automotive	Reset	35 mA	1	D2PAK-5
ON Semiconductor NCV4275ADT33RKG	60 dB	3.3 V	450 mA		Over Temperature Reverse Polarity Short Circuit	200 µA	AEC-Q100	150 °C	-40 °C	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	Surface Mount	Positive	42 V	1.81 mOhm	Automotive	Reset	35 mA	1	DPAK-5
ON Semiconductor NCV4275CDT50RKG	60 dB	5 V	450 mA	0.5 V	Over Temperature Reverse Polarity Short Circuit	150 çA	AEC-Q100			DPAK (4 Leads + Tab) TO-252-5 TO-252AD	Surface Mount	Positive	42 V	1.81 mOhm	Automotive	Reset	35 mA	1	DPAK-5
ON Semiconductor NCV4275DSR4	60 dB	5 V	450 mA	0.5 V	Over Temperature Reverse Polarity Short Circuit	200 µA	AEC-Q100			D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	Surface Mount	Positive	45 V	1.81 mOhm	Automotive	Reset	35 mA	1	D2PAK-5
ON Semiconductor NCV4275ADT50RKG-IR01	60 dB	5 V	450 mA	0.5 V	Over Temperature Reverse Polarity Short Circuit	200 µA	AEC-Q100	150 °C	-40 °C	DPAK (4 Leads + Tab) TO-252-5 TO-252AD	Surface Mount	Positive	42 V	1.81 mOhm	Automotive	Reset	35 mA	1	DPAK-5

Catalog

LDO Regulator, 450 mA, 42 V, 150 µA IQ, with Delay and Reset

Key Features

• 5.0 V and 3.3 V, 2% Output Voltage Accuracy with 450 mA Output Current

• 500 mV (max) Dropout Voltage

• Active Reset Output

• Very Low Current Consumption

• Fault Protection +45 V Peak Transient Voltage -42 V Reverse Voltage Short Circuit Protection Thermal Overload Protection

• AEC−Q100 Qualified and PPAP Capable

Description

The NCV4275C is an integrated low dropout regulator designedfor use in harsh automotive environments. It includes wideoperating temperature and input voltage ranges. The output isregulated at 5.0 V or 3.3 V and is rated to 450 mA of output current.It also provides a number of features, including overcurrentprotection, overtemperature protection and a programmablemicroprocessor reset. The NCV4275C is available in the DPAK andD2PAK surface mount packages. The output is stable over a wideoutput capacitance and ESR range. The NCV4275C is pin for pincompatible with NCV4275A.
