94010 Series

Catalog

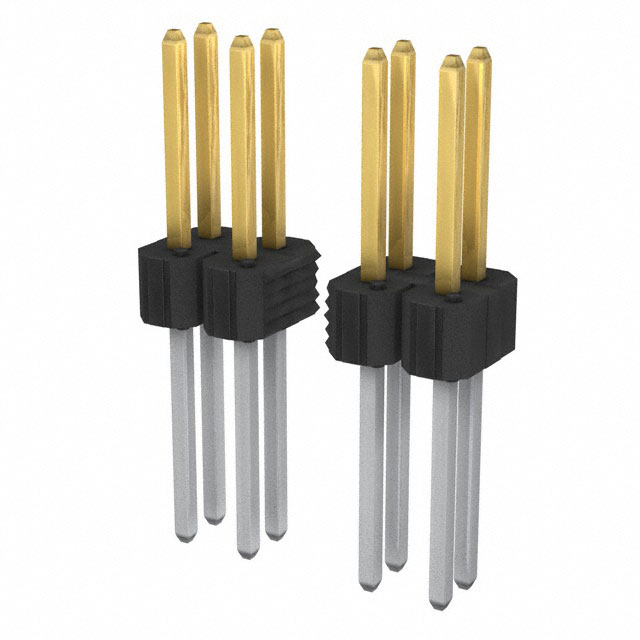

CONN HEADER VERT 22POS 2.54MM

Part	Number of Positions	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Finish - Mating	Mounting Type	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Fastening Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Shape	Contact Type	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Material	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Insulation Height	Insulation Height	Contact Finish - Post
Amphenol ICC (FCI) 94010-122HLF	22 positions	Unshrouded	2.54 mm	0.1 in	Solder	Gold or Gold GXT™	Through Hole	0.306 in	7.77 mm	All	Push-Pull	Header	30 Áin	0.76 Ám	8.89 mm	0.35 in	Black	Square	Male Pin	2	0.1 in	2.54 mm	Phosphor Bronze	19.2 mm	0.756 "	UL94 V-0	0.1 in	2.54 mm
Amphenol ICC (FCI) 94010-130HLF	30	Unshrouded	2.54 mm	0.1 in	Solder	Gold or Gold GXT™	Through Hole	0.306 in	7.77 mm	All	Push-Pull	Header	30 Áin	0.76 Ám	8.89 mm	0.35 in	Black	Square	Male Pin	2	0.1 in	2.54 mm	Phosphor Bronze	19.2 mm	0.756 "	UL94 V-0	0.1 in	2.54 mm
Amphenol ICC (FCI) 94010-164HLF	64	Unshrouded	2.54 mm	0.1 in	Solder	Gold or Gold GXT™	Through Hole	0.306 in	7.77 mm	All	Push-Pull	Header	30 Áin	0.76 Ám	8.89 mm	0.35 in	Black	Square	Male Pin	2	0.1 in	2.54 mm	Phosphor Bronze	19.2 mm	0.756 "	UL94 V-0	0.1 in	2.54 mm
Amphenol ICC (FCI) 94010-440HLF	40	Unshrouded	2.54 mm	0.1 in	Solder		Through Hole	0.306 in	7.77 mm	All	Push-Pull	Header	100 çin	2.54 çm	8.89 mm	0.35 in	Black	Square	Male Pin	2	0.1 in	2.54 mm	Phosphor Bronze	19.2 mm	0.756 "	UL94 V-0	0.1 in	2.54 mm	Tin
Amphenol ICC (FCI) 94010-460HLF	60	Unshrouded	2.54 mm	0.1 in	Solder		Through Hole	0.306 in	7.77 mm	All	Push-Pull	Header	100 çin	2.54 çm	8.89 mm	0.35 in	Black	Square	Male Pin	2	0.1 in	2.54 mm	Phosphor Bronze	19.2 mm	0.756 "	UL94 V-0	0.1 in	2.54 mm	Tin
Amphenol ICC (FCI) 94010-412HLF	12	Unshrouded	2.54 mm	0.1 in	Solder		Through Hole	0.306 in	7.77 mm	All	Push-Pull	Header	100 çin	2.54 çm	8.89 mm	0.35 in	Black	Square	Male Pin	2	0.1 in	2.54 mm	Phosphor Bronze	19.2 mm	0.756 "	UL94 V-0	0.1 in	2.54 mm	Tin
Amphenol ICC (FCI) 94010-114HLF	14	Unshrouded	2.54 mm	0.1 in	Solder	Gold or Gold GXT™	Through Hole	0.306 in	7.77 mm	All	Push-Pull	Header	30 Áin	0.76 Ám	8.89 mm	0.35 in	Black	Square	Male Pin	2	0.1 in	2.54 mm	Phosphor Bronze	19.2 mm	0.756 "	UL94 V-0	0.1 in	2.54 mm
Amphenol ICC (FCI) 94010-430HLF	30	Unshrouded	2.54 mm	0.1 in	Solder		Through Hole	0.306 in	7.77 mm	All	Push-Pull	Header	100 çin	2.54 çm	8.89 mm	0.35 in	Black	Square	Male Pin	2	0.1 in	2.54 mm	Phosphor Bronze	19.2 mm	0.756 "	UL94 V-0	0.1 in	2.54 mm	Tin
Amphenol ICC (FCI) 94010-150HLF	50	Unshrouded	2.54 mm	0.1 in	Solder	Gold or Gold GXT™	Through Hole	0.306 in	7.77 mm	All	Push-Pull	Header	30 Áin	0.76 Ám	8.89 mm	0.35 in	Black	Square	Male Pin	2	0.1 in	2.54 mm	Phosphor Bronze	19.2 mm	0.756 "	UL94 V-0	0.1 in	2.54 mm
Amphenol ICC (FCI) 94010-472H	72	Unshrouded	2.54 mm	0.1 in	Solder		Through Hole	0.306 in	7.77 mm	All	Push-Pull	Header	100 çin	2.54 çm	8.89 mm	0.35 in	Black	Square	Male Pin	2	0.1 in	2.54 mm	Phosphor Bronze	19.2 mm	0.756 "	UL94 V-0	0.1 in	2.54 mm
