NRF51822 Series
Manufacturer: Nordic Semiconductor ASA
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

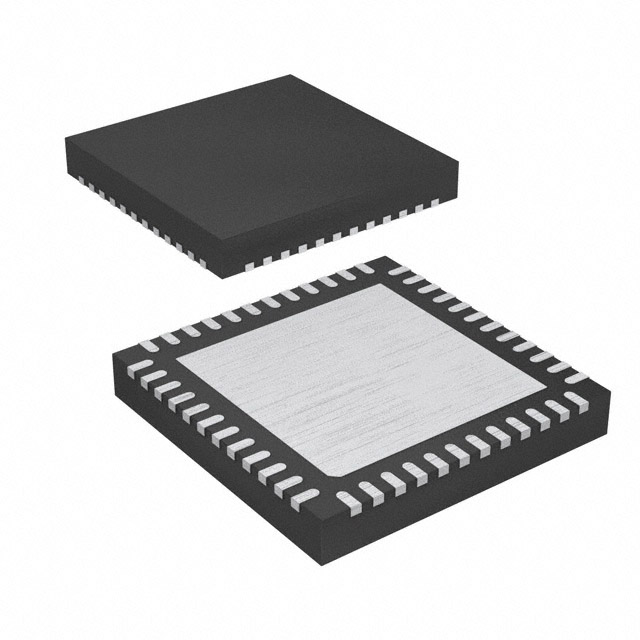

RF TRANSCEIVER, 2 MBPS, 2.4 TO 2.483 GHZ, 1.8 V TO 3.6 V, -85 DBM, -25 TO 75 °C, QFN-48
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Sensitivity | Protocol | Type | Modulation | GPIO Count | RF Family/Standard | Current - Receiving (Min) | Current - Receiving (Max) | Data Rate (Max) | Package / Case | Current - Transmitting (Min) | Current - Transmitting (Max) | Mounting Type | Serial Interfaces | Memory Size (SRAM) | Memory Type | Memory Size (Flash) | Frequency | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Package Length | Package Name | Package Width | Power - Output | Memory Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nordic Semiconductor ASA | -25 °C | 75 °C | -96 dBm | Bluetooth v4.0 | TxRx Only | GFSK | 32 | Bluetooth General ISM > 1GHz | 9.7 mA | 13.4 mA | 2 MBaud | 48-VFQFN Exposed Pad | 4.7 mA | 16 mA | Surface Mount | I2C SPI UART | 16 kB | Flash SRAM | 256 KB | 2.4 GHz | 3.6 V | 1.8 V | 6 mm | 48-QFN | 6 mm | 4 dBm | |
 Nordic Semiconductor ASA | -25 °C | 75 °C | -96 dBm | Bluetooth v4.0 | TxRx Only | GFSK | 32 | Bluetooth General ISM > 1GHz | 9.7 mA | 13.4 mA | 2 MBaud | 62-UFBGA WLCSP | 4.7 mA | 16 mA | Surface Mount | I2C SPI UART | Flash RAM | 256 KB | 2.4 GHz | 3.6 V | 1.8 V | 3.83 mm | 62-WLCSP | 3.83 mm | 4 dBm | 32 kB | |
Nordic Semiconductor ASA | -25 °C | 75 °C | -96 dBm | Bluetooth v4.0 | TxRx Only | GFSK | 32 | Bluetooth General ISM > 1GHz | 9.7 mA | 13.4 mA | 2 MBaud | 48-VFQFN Exposed Pad | 4.7 mA | 16 mA | Surface Mount | I2C SPI UART | 16 kB | Flash SRAM | 256 KB | 2.4 GHz | 3.6 V | 1.8 V | 6 mm | 48-QFN | 6 mm | 4 dBm | |
 Nordic Semiconductor ASA | -25 °C | 75 °C | -96 dBm | Bluetooth v4.0 | TxRx Only | GFSK | 32 | Bluetooth General ISM > 1GHz | 9.7 mA | 13.4 mA | 2 MBaud | 48-VFQFN Exposed Pad | 4.7 mA | 16 mA | Surface Mount | I2C SPI UART | Flash RAM | 256 KB | 2.4 GHz | 3.6 V | 1.8 V | 6 mm | 48-QFN | 6 mm | 4 dBm | 32 kB | |
Nordic Semiconductor ASA | -25 °C | 75 °C | -96 dBm | Bluetooth v4.1 | TxRx Only | GFSK | 31 | Bluetooth General ISM > 1GHz | 8.7 mA | 13.4 mA | 2 MBaud | 48-VFQFN Exposed Pad | 4.7 mA | 16 mA | Surface Mount | I2C SPI UART | 16 kB | Flash SRAM | 256 KB | 2.4 GHz | 3.6 V | 1.8 V | 6 mm | 48-QFN | 6 mm | 4 dBm | |
 Nordic Semiconductor ASA | -25 °C | 75 °C | -96 dBm | Bluetooth v4.0 | TxRx Only | GFSK | 32 | Bluetooth General ISM > 1GHz | 9.7 mA | 13.4 mA | 2 MBaud | 62-UFBGA WLCSP | 4.7 mA | 16 mA | Surface Mount | I2C SPI UART | 16 kB | Flash SRAM | 256 KB | 2.4 GHz | 3.6 V | 1.8 V | 3.5 mm | 62-WLCSP | 3.83 mm | 4 dBm | |
 Nordic Semiconductor ASA | -25 °C | 75 °C | -96 dBm | Bluetooth v4.1 | TxRx Only | GFSK | 31 | Bluetooth General ISM > 1GHz | 8.7 mA | 13.4 mA | 2 MBaud | 48-VFQFN Exposed Pad | 4.7 mA | 16 mA | Surface Mount | I2C SPI UART | 16 kB | Flash SRAM | 256 KB | 2.4 GHz | 3.6 V | 1.8 V | 6 mm | 48-QFN | 6 mm | 4 dBm | |
Nordic Semiconductor ASA | -25 °C | 75 °C | -96 dBm | Bluetooth v4.1 | TxRx Only | GFSK | 31 | Bluetooth General ISM > 1GHz | 8.7 mA | 13.4 mA | 2 MBaud | 48-VFQFN Exposed Pad | 4.7 mA | 16 mA | Surface Mount | I2C SPI UART | 16 kB | Flash SRAM | 256 KB | 2.4 GHz | 3.6 V | 1.8 V | 6 mm | 48-QFN | 6 mm | 4 dBm | |
Nordic Semiconductor ASA | -25 °C | 75 °C | -96 dBm | Bluetooth v4.0 | TxRx Only | GFSK | 32 | Bluetooth General ISM > 1GHz | 9.7 mA | 13.4 mA | 2 MBaud | 48-VFQFN Exposed Pad | 4.7 mA | 16 mA | Surface Mount | I2C SPI UART | Flash RAM | 256 KB | 2.4 GHz | 3.6 V | 1.8 V | 6 mm | 48-QFN | 6 mm | 4 dBm | 32 kB | |
 Nordic Semiconductor ASA | -25 °C | 75 °C | -96 dBm | Bluetooth v4.0 | TxRx Only | GFSK | 32 | Bluetooth General ISM > 1GHz | 9.7 mA | 13.4 mA | 2 MBaud | 48-VFQFN Exposed Pad | 4.7 mA | 16 mA | Surface Mount | I2C SPI UART | 16 kB | Flash SRAM | 128 kB | 2.4 GHz | 3.6 V | 1.8 V | 6 mm | 48-QFN | 6 mm | 4 dBm |
