767061 Series

Catalog

MICT,RECPT,114,ASSY,093,PDNI ROHS COMPLIANT: NO

Part	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows [custom]	Mated Stacking Heights	Connector Type	Number of Positions	Contact Finish	Pitch	Pitch	Features
TE Connectivity AMP Connectors 767061-3	0.236 in	6 mm	30 Áin	0.76 Ám	Surface Mount	2	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm	Receptacle Center Strip Contacts	114	Palladium-Nickel	0.64 mm	0.025 in	Board Guide Ground Bus (Plane)

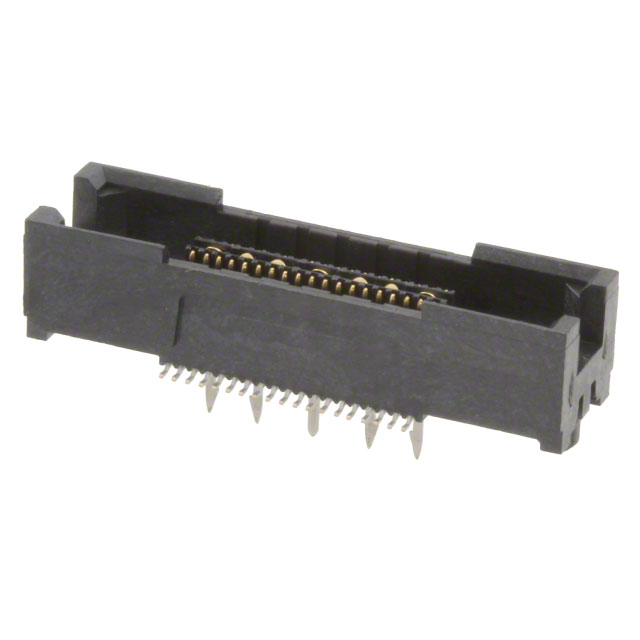

TE Connectivity AMP Connectors 767061-1	0.236 in	6 mm	30 Áin	0.76 Ám	Surface Mount	2	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm	Receptacle Center Strip Contacts	38	Palladium-Nickel	0.64 mm	0.025 in	Board Guide Ground Bus (Plane)
TE Connectivity AMP Connectors 767061-2	0.236 in	6 mm	30 Áin	0.76 Ám	Surface Mount	2	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm	Receptacle Center Strip Contacts	76	Palladium-Nickel	0.64 mm	0.025 in	Board Guide Ground Bus (Plane)
